Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G5RL-K1A-E DC5RELAY GEN PURPOSE SPST 16A 5V |
548 |
|
Datasheet |
G5RL-K | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 150 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G5RL-K1-E DC24RELAY GEN PURPOSE SPDT 16A 24V |
531 |
|
Datasheet |
G5RL-K | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 35 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G5RL-K1A-E DC12RELAY GEN PURPOSE SPST 16A 12V |
134 |
|
Datasheet |
G5RL-K | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 62.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
AZ2280-1C-120AFRELAY GEN PURPOSE SPDT 20A 120V |
1,759 |
|
Datasheet |
AZ2280 | Box | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 20 A | 277VAC, 28VDC - Max | 11080VA, 840W | 48 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 102 VAC | 24 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
AZ2280-1C-240AEFRELAY GEN PURPOSE SPDT 20A 240V |
3,738 |
|
Datasheet |
AZ2280 | Tray | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 20 A | 277VAC, 28VDC - Max | 11080VA, 840W | 17.8 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 187 VAC | 48 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G2R-2A DC24RELAY GEN PURPOSE DPST 5A 24V |
21,114 |
|
Datasheet |
G2R | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
G2R-2A DC12RELAY GEN PURPOSE DPST 5A 12V |
4,397 |
|
Datasheet |
G2R | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
RTD14005RELAY GEN PURPOSE SPDT 16A 5V |
6,118 |
|
Datasheet |
RT1, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 403 mW | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RTB14005RELAY GEN PURPOSE SPDT 12A 5V |
999 |
|
Datasheet |
RT1, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G5RL-1A-E-HR DC5RELAY GEN PURPOSE SPST 16A 5V |
584 |
|
Datasheet |
G5RL | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|

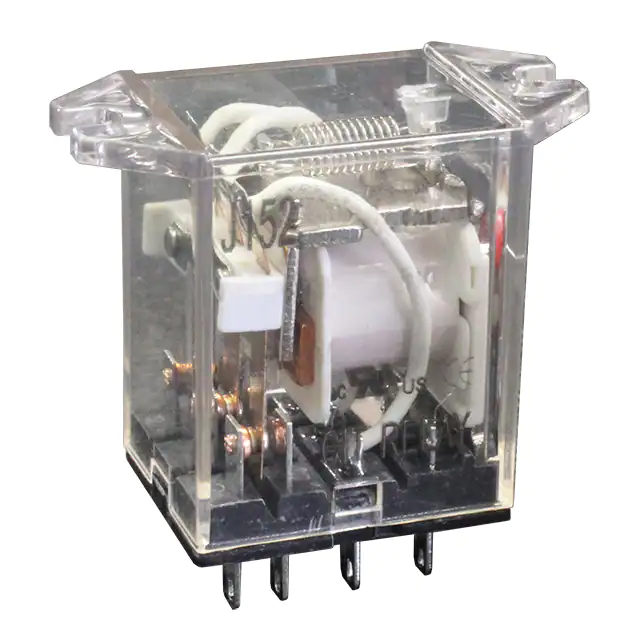

J1524CF12VDCRELAY GEN PURPOSE 4PDT 10A 12V |
166 |
|
Datasheet |
J152 | Tray | Active | Chassis Mount | 12VDC | 4PDT (4 Form C) | 10 A | 300VAC - Max | 3000VA | 75 mA | Non Latching | - | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RT424009RELAY GEN PURPOSE DPDT 8A 9V |
1,592 |
|
Datasheet |
RT2, SCHRACK | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RT424006RELAY GEN PURPOSE DPDT 8A 6V |
1,528 |
|
Datasheet |
RT2, SCHRACK | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 4.2 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RT33L024RELAY GEN PURPOSE SPST 16A 24V |
4,088 |
|
Datasheet |
RT1, Inrush, SCHRACK | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
41.52.9.024.0010RELAY GEN PURPOSE DPDT 8A 24V |
493 |
|
Datasheet |
41 | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T9AS1D12-18RELAY GEN PURPOSE SPST 30A 18V |
1,591 |
|
Datasheet |
T9A | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 55.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G6RL-1-ASI DC5RELAY GEN PURPOSE SPDT 8A 5V |
300 |
|
Datasheet |
G6RL | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 44 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
T9AS1D12-15RELAY GEN PURPOSE SPST 30A 15V |
1,770 |
|
Datasheet |
T9A | Bulk | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 11.25 VDC | 1.5 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RT334012FRELAY GEN PURPOSE SPST 16A 12V |
1,208 |
|
Datasheet |
RT1 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
V23061B1007A301RELAY GEN PURPOSE SPDT 8A 24V |
1,603 |
|
Datasheet |
MSR, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
