Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G5CA-1A-E DC24RELAY GEN PURPOSE SPST 15A 24V |
4,223 |
|
Datasheet |
G5CA | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | General Purpose | - | - |
|
G2RL-1-H DC24RELAY GEN PURPOSE SPDT 10A 24V |
2,101 |
|
Datasheet |
G2RL | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 440VAC, 300VDC - Max | 4400VA, 3000W | 10.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G2RL-1-H DC5RELAY GEN PURPOSE SPDT 10A 5V |
296 |
|
Datasheet |
G2RL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 440VAC, 300VDC - Max | 4400VA, 3000W | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G6RL-1A4-ASI DC24RELAY GEN PURPOSE SPST 10A 24V |
316 |
|
Datasheet |
G6RL | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
G6RL-1A4-ASI DC12RELAY GEN PURPOSE SPST 10A 12V |
322 |
|
Datasheet |
G6RL | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 18.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
J115F31CH5VDCS61.5URELAY GEN PURPOSE SPDT 50A 5V |
293 |
|
Datasheet |
J115F | Tray | Active | Chassis Mount | 5VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 299.4 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|

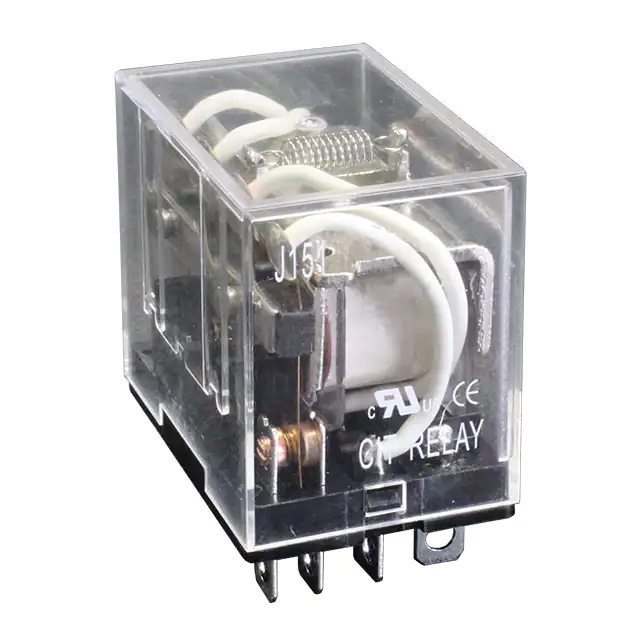

J1512CT12VDC.9RELAY GEN PURPOSE DPDT 12A 12V |
214 |
|
Datasheet |
J151 | Tray | Active | Socketable | 12VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | - | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

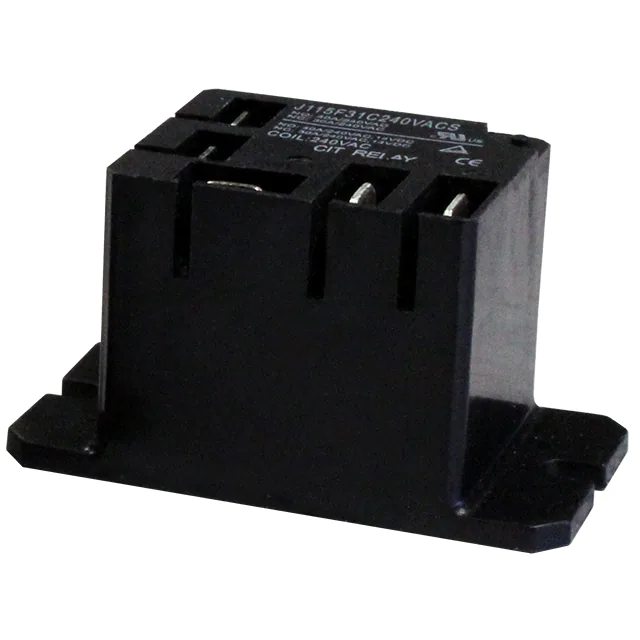

J115F31C240VACSRELAY GEN PURPOSE SPDT 40A 240V |
191 |
|
Datasheet |
J115F3 | Tray | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 15.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 180 VAC | 72 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
G6RL-14-ASI DC5RELAY GEN PURPOSE SPDT 8A 5V |
5,263 |
|
Datasheet |
G6RL | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
AZSR143-1AE-12DRELAY EV CHG SOLAR SPST 50A 12V |
620 |
|
Datasheet |
AZSR143 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 19200VA | 133.3 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | EV Charging, Solar | - | - |
|
RT314005RELAY GEN PURPOSE SPDT 16A 5V |
13,029 |
|
Datasheet |
RT1, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 80.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2-1419142-2RELAY GEN PURPOSE SPDT 5A 3V |
303 |
|
Datasheet |
PE, SCHRACK | Bulk | Active | Through Hole | 3VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G2R-1A4-DC12RELAY GEN PURPOSE SPST 8A 12V |
728 |
|
Datasheet |
G2R | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
PCN-124D3MHZ,000RELAY GEN PURPOSE SPST 3A 24V |
12,332 |
|
Datasheet |
PCN, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 277VAC, 125VDC - Max | 831VA, 375W | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 8 ms | 3 ms | -30°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
PCN-124D3MHZ,001RELAY GEN PURPOSE SPST 5A 24V |
7,631 |
|
Datasheet |
PCN, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 1385VA, 625W | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.8 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J1522CP12VDCRELAY GEN PURPOSE DPDT 10A 12V |
131 |
|
Datasheet |
J152 | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 75 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RT33K024RELAY GEN PURPOSE SPST 16A 24V |
2,378 |
|
Datasheet |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G2RL-2A4 DC24RELAY GEN PURPOSE DPST 8A 24V |
1,996 |
|
Datasheet |
G2RL | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G2RL-2A4 DC12RELAY GEN PURPOSE DPST 8A 12V |
912 |
|
Datasheet |
G2RL | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G5RL-1A-E-HR DC24RELAY GEN PURPOSE SPST 16A 24V |
927 |
|
Datasheet |
G5RL | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
