Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ7709T-1AE-48DSFRELAY GEN PURPOSE SPST 10A 48V |
0 |
|
Datasheet |
AZ7709 | Box | Discontinued at Digi-Key | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | - | Non Latching | - | PC Pin | - | Class F | - | 2.4 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-48DSRELAY GEN PURPOSE SPST 10A 48V |
0 |
|
Datasheet |
AZ7709 | Box | Discontinued at Digi-Key | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | - | Non Latching | - | PC Pin | - | - | - | 2.4 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ942-1CT-48DERELAY GEN PURPOSE SPDT 16A 48V |
0 |
|
- |
AZ942 | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 300VAC, 30VDC - Max | 2770VA, 150W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 38.4 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 100°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ942-1AT-12DRELAY GEN PURPOSE SPST 16A 12V |
0 |
|
- |
AZ942 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 300VAC, 30VDC - Max | 2770VA, 150W | 30 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 100°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ942-1AT-12DERELAY GEN PURPOSE SPST 16A 12V |
0 |
|
- |
AZ942 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 300VAC, 30VDC - Max | 2770VA, 150W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 100°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ8A-1AH-5DSERELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Datasheet |
AZ8A | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 300VAC, 150VDC - Max | 2400VA, 300W | 62.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.75 VDC | 0.25 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Alloy | General Purpose | - | - |
|
|
AZ8A-1AH-5DERELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Datasheet |
AZ8A | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 300VAC, 150VDC - Max | 2400VA, 300W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.75 VDC | 0.25 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Alloy | General Purpose | - | - |
|
|
AZ9371-1A-12DERELAY GEN PURPOSE SPST 5A 12V |
0 |
|
- |
AZ9371 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 6 ms | 3 ms | -40°C ~ 105°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

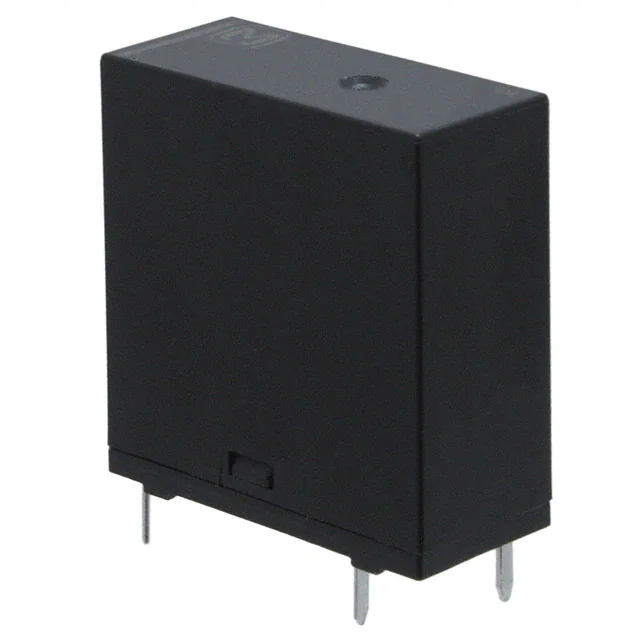

LKT1AF-12VRELAY GEN PURPOSE SPST 5A 12V |
0 |
|
Datasheet |
LK-T | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
LKT1AF-9VRELAY GEN PURPOSE SPST 5A 9V |
0 |
|
Datasheet |
LK-T | Tray | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J123F1A12VDC.45RELAY GEN PURPOSE SPST 20A 12V |
0 |
|
Datasheet |
J123F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
J123F1A5VDC.45RELAY GEN PURPOSE SPST 20A 5V |
0 |
|
Datasheet |
J123F | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
AZ770-1A-5DEKRELAY GENERAL PURPOSE SPST 5A 5V |
0 |
|
Datasheet |
AZ770 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | - | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.25 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ9371-1A-6DERELAY GENERAL PURPOSE SPST 5A 6V |
0 |
|
- |
AZ9371 | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.5 VDC | 0.3 VDC | 6 ms | 3 ms | -40°C ~ 105°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ770-1A-12DEKRELAY GEN PURPOSE SPST 5A 12V |
0 |
|
Datasheet |
AZ770 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | - | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ9371-1A-3DERELAY GENERAL PURPOSE SPST 5A 3V |
0 |
|
- |
AZ9371 | Box | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.25 VDC | 0.15 VDC | 6 ms | 3 ms | -40°C ~ 105°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ9371-1A-9DERELAY GENERAL PURPOSE SPST 5A 9V |
0 |
|
- |
AZ9371 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.45 VDC | 6 ms | 3 ms | -40°C ~ 105°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
J1181CS12VDC.80RELAY GEN PURPOSE SPDT 10A 12VDC |
0 |
|
Datasheet |
J118 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 380VAC, 110VDC - Max | 3800VA, 1100W | 66.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J1181CS9VDC.80RELAY GEN PURPOSE SPDT 10A 9VDC |
0 |
|
Datasheet |
J118 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 380VAC, 110VDC - Max | 3800VA, 1100W | 88.2 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J1181AS9VDC.80RELAY GEN PURPOSE SPST N.O. 20A |
0 |
|
Datasheet |
J118 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 88.2 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
