Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ7709T-1AE-12DSFRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

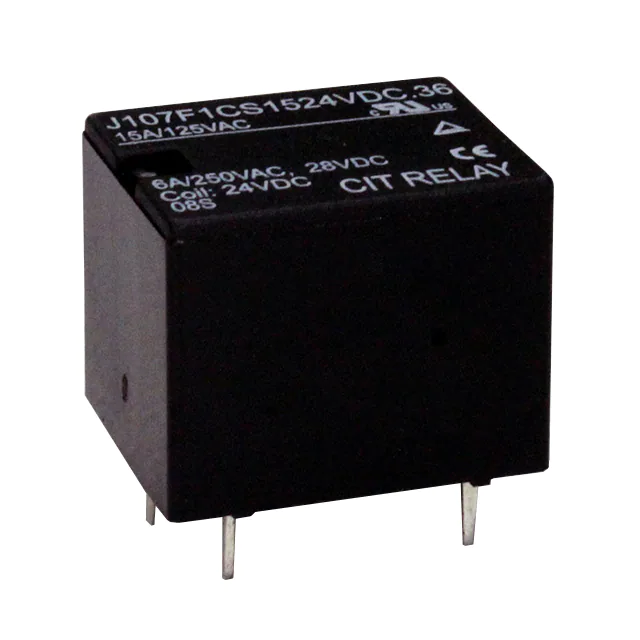

J107F1CS1524VDC.36RELAY GEN PURPOSE SPDT 15A 24V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J107F1CS153VDC.36RELAY GEN PURPOSE SPDT 15A 3V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J107F1AS1248VDC.80RELAY GEN PURPOSE SPST 12A 48V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J109F1AS1224VDC.36RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
Datasheet |
J109F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1024VDC.45RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Datasheet |
J109F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 110VDC - Max | 3800VA, 1100W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1024VDC.36RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Datasheet |
J109F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 110VDC - Max | 3800VA, 1100W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1224VDC.80RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
Datasheet |
J109F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J107F1AS1248VDC.45RELAY GEN PURPOSE SPST 12A 48V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 9.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1224VDC.50RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
Datasheet |
J109F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 20.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1024VDC.80RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Datasheet |
J109F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 110VDC - Max | 3800VA, 1100W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J109F1AS1024VDC.50RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Datasheet |
J109F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 110VDC - Max | 3800VA, 1100W | 20.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ943-1CH-12DEGRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
|
AZ9405-1C-5DSFRELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
- |
AZ9405 | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 1400VA, 150W | 40 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ942H-1C-12DERELAY GEN PURPOSE SPDT 12A 12V |
0 |
|
- |
AZ942H | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 250VAC, 28VDC - Max | 4000VA, 280W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ9405-1C-5DERELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
- |
AZ9405 | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 1400VA, 150W | 79.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ943-1CH-12DGFRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
|
AZ673-1A-48DERELAY GEN PURPOSE SPST 10A 48V |
0 |
|
Datasheet |
AZ673 | Box | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 150VDC - Max | 2500VA, 300W | 10.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 36 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
PR29 24V-S-450-1A18.4 X 10.2 X 15.5 MM, 24 V, 10 |
0 |
|
Datasheet |
PR29 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 16.8 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
PR29 18V-S-450-1A-F18.4 X 10.2 X 15.5 MM, 18 V, 10 |
0 |
|
Datasheet |
PR29 | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 25 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
