Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ9405-1A-24DSERELAY GEN PURPOSE SPST 10A 24V |
0 |
|
- |
AZ9405 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1400VA, 150W | 8.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7705-1A-5DEFRELAY GENERAL PURPOSE SPST 5A 5V |
0 |
|
- |
AZ7705 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1250VA, 150W | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 4 ms | -30°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
PRE29 9V-S-450-1A-E18.4 X 10.2 X 15.5 MM, 48 V, 5 A |
0 |
|
Datasheet |
PRE29 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.3 VDC | 0.45 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
PRE29 9V-S-450-1A18.4 X 10.2 X 15.5 MM, 48 V, 5 A |
0 |
|
Datasheet |
PRE29 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 6.3 VDC | 0.45 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
PRE29 12V-S-450-1A18.4 X 10.2 X 15.5 MM, 3 V, 5 A, |
0 |
|
Datasheet |
PRE29 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 8.4 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
PRE29 6V-S-450-1A18.4 X 10.2 X 15.5 MM, 24 V, 5 A |
0 |
|
Datasheet |
PRE29 | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 4.2 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
PRE29 6V-S-450-1A-E18.4 X 10.2 X 15.5 MM, 24 V, 5 A |
0 |
|
Datasheet |
PRE29 | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 4.2 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
PRE29 5V-S-450-1A18.4 X 10.2 X 15.5 MM, 18 V, 5 A |
0 |
|
Datasheet |
PRE29 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 90.9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.5 VDC | 0.25 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

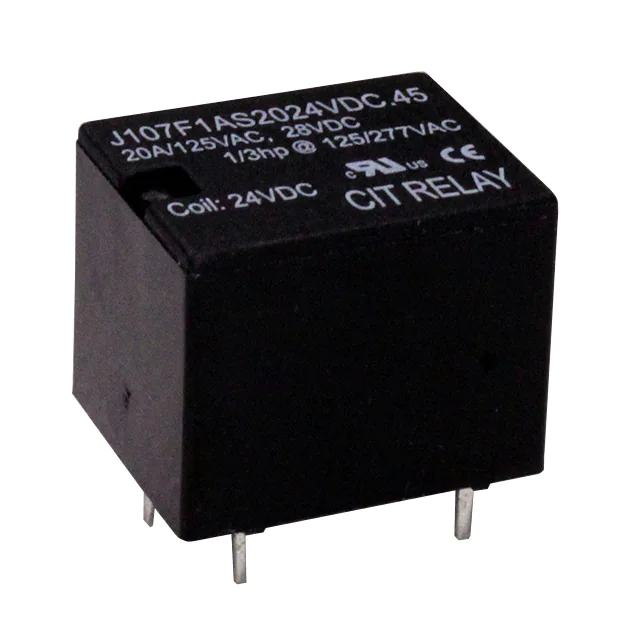

J107F1AS2024VDC.45RELAY GEN PURPOSE SPST 20A 24V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J107F1AS203VDC.80RELAY GEN PURPOSE SPST 20A 3V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 272.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J107F1AS203VDC.45RELAY GEN PURPOSE SPST 20A 3V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 150 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1131AS18VDC.20RELAY GEN PURPOSE SPST 5A 18V |
0 |
|
Datasheet |
J113 | Tube | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 11.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 13.5 VDC | 1.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ942-1CH-12DRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
- |
AZ942 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 300VAC, 30VDC - Max | 2770VA, 150W | 30 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 100°C | Silver Cerium (AgCe) | General Purpose | - | - |
|
|
AZ942-1CH-12DERELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
- |
AZ942 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 300VAC, 30VDC - Max | 2770VA, 150W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 100°C | Silver Cerium (AgCe) | General Purpose | - | - |
|
|
AZ942-1CH-6DERELAY GEN PURPOSE SPDT 10A 6V |
0 |
|
- |
AZ942 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 300VAC, 30VDC - Max | 2770VA, 150W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 4.8 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 100°C | Silver Cerium (AgCe) | General Purpose | - | - |
|
|
AZ942-1CH-9DERELAY GEN PURPOSE SPDT 10A 9V |
0 |
|
- |
AZ942 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 300VAC, 30VDC - Max | 2770VA, 150W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 7.2 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 100°C | Silver Cerium (AgCe) | General Purpose | - | - |
|
|
AZ942-1CH-5DERELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
- |
AZ942 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 300VAC, 30VDC - Max | 2770VA, 150W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 100°C | Silver Cerium (AgCe) | General Purpose | - | - |
|
|
AZ942-1CH-3DERELAY GEN PURPOSE SPDT 10A 3V |
0 |
|
- |
AZ942 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 10 A | 300VAC, 30VDC - Max | 2770VA, 150W | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 2.4 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 100°C | Silver Cerium (AgCe) | General Purpose | - | - |
|
|
PRE29 9V-S-450-1A-EF18.4 X 10.2 X 15.5 MM, 48 V, 5 A |
0 |
|
Datasheet |
PRE29 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.3 VDC | 0.45 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
PRE29 9V-S-450-1A-F18.4 X 10.2 X 15.5 MM, 48 V, 5 A |
0 |
|
Datasheet |
PRE29 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.45 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
