Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ7709T-1AE-12DSERELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-6DSRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 33.3 mA | Non Latching | - | PC Pin | - | - | 4.5 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709-1AE-18DSFRELAY GEN PURPOSE SPST 5A 18V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 11.1 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-6DSERELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709-1AE-18DSRELAY GEN PURPOSE SPST 5A 18V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 11.1 mA | Non Latching | - | PC Pin | - | - | 13.5 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-3DFRELAY GEN PURPOSE SPST 10A 3V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 150 mA | Non Latching | - | PC Pin | - | Class F | 2.1 VDC | 0.15 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709-1AE-18DSERELAY GEN PURPOSE SPST 5A 18V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 11.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 13.5 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-9DSFRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 22.5 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.45 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-3DEFRELAY GEN PURPOSE SPST 10A 3V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 150 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.1 VDC | 0.15 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709-1AE-18DFRELAY GEN PURPOSE SPST 5A 18V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 25 mA | Non Latching | - | PC Pin | - | Class F | 12.6 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-9DSRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 22.5 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.45 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-9DSERELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.45 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-12DSRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709-1AE-18DEFRELAY GEN PURPOSE SPST 5A 18V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 12.6 VDC | 0.9 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-24DERELAY GEN PURPOSE SPST 5A 24V |
0 |
|
Datasheet |
AZ7709 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

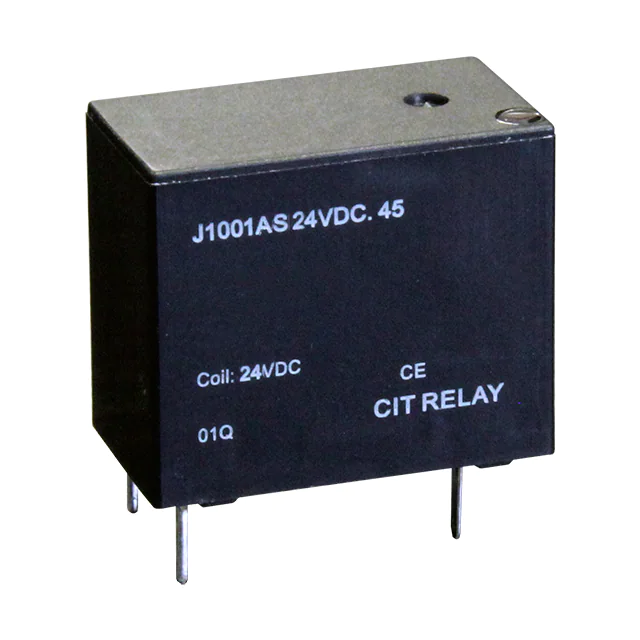

J1001AS24VDC.45RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

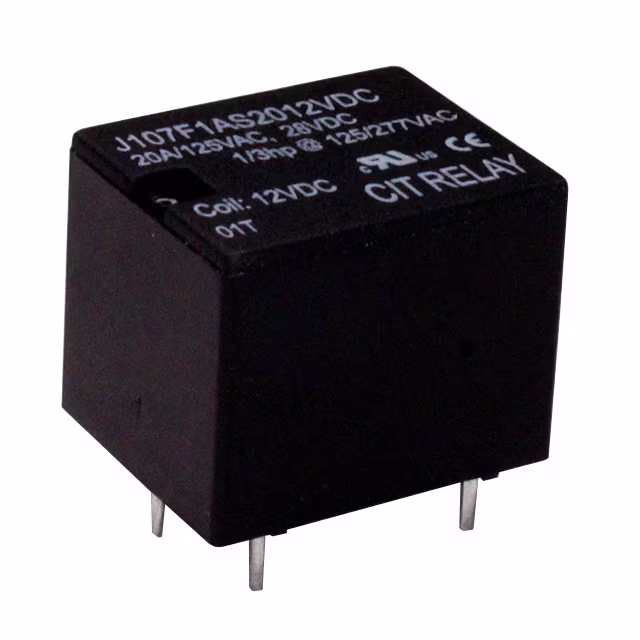

J107F1AS2012VDC.45RELAY GEN PURPOSE SPST 20A 12V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

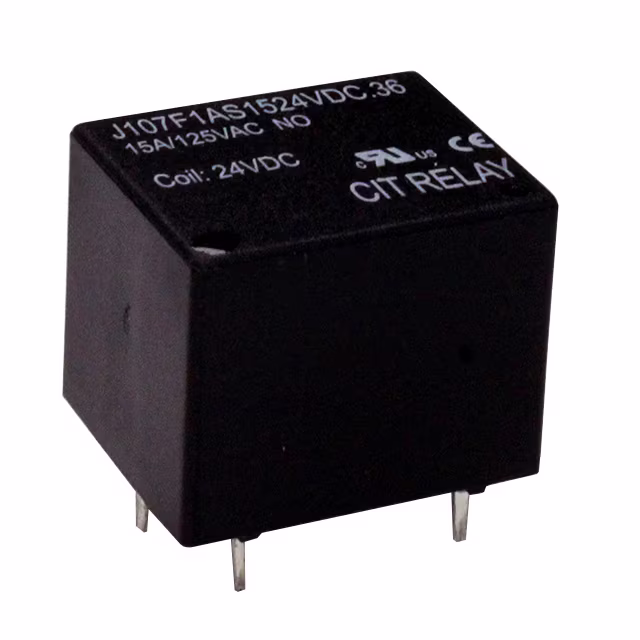

J107F1AS1524VDC.36RELAY GEN PURPOSE SPST 15A 24V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J107F1AS1524VDC.80RELAY GEN PURPOSE SPST 15A 24V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J107F1AS1524VDC.45RELAY GEN PURPOSE SPST 15A 24V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 380VAC, 110VDC - Max | 5700VA, 1650W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
