Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KUP-11DT5-24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Datasheet |
KUP | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
4-1393117-1KUP-11DT5-24=KU |
46 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KUEP-11A35-120RELAY GEN PURPOSE DPDT 10A 120V |
63 |
|
Datasheet |
KUEP | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 150VDC - Max | 1500VA | 24 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

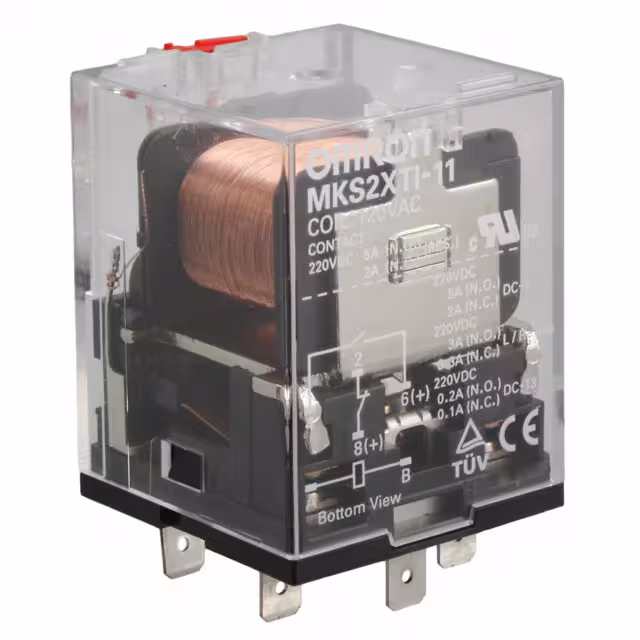

MKS2XTI-11 AC120RELAY GEN PURPOSE DPST 5A 120V |
54 |
|
Datasheet |
MKS-X | Tray | Obsolete | Socketable | 120VAC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 220VDC - Max | 1100W | 19.3 mA | Non Latching | Test Button | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
MKS1XTN-10 AC120RELAY GEN PURPOSE SPST 10A 120V |
30 |
|
Datasheet |
MKS-X | Tray | Obsolete | Socketable | 120VAC | SPST-NO (1 Form A) | 10 A | 220VDC - Max | 2200W | 19.3 mA | Non Latching | Mechanical Indicator | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
KHAU-17D18-110RELAY GEN PURPOSE 4PDT 3A 110V |
0 |
|
Datasheet |
KHA | Bulk | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 8.2 mA | Non Latching | - | Plug In | - | Class B | 82.5 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
S87R5A2B1D1-240RELAY GEN PURPOSE SPDT 20A 240V |
49 |
|
Datasheet |
S87R | Tray | Obsolete | Chassis Mount | 240VAC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 16.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 204 VAC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RPM42E7HARMONY, POWER PLUG-IN RELAY, 15 |
25 |
|
Datasheet |
Harmony | Box | Obsolete | Socketable | 48VAC | 4PDT (4 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 154.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
90290RELAY GEN PURPOSE SPST 18A 24V |
22 |
|
Datasheet |
HCR-5 | Box | Active | Chassis Mount | 24VAC | SPST-NO (DM) (1 Form X) | 18 A | - | - | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 20.4 VAC | 4.8 VAC | - | - | -40°C ~ 65°C | - | General Purpose | - | - |
|
RUMC32E7HARMONY, UNIVERSAL PLUG-IN RELAY |
10 |
|
Datasheet |
Harmony | Box | Obsolete | Socketable | 48VAC | 3PDT (3 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 165.5 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

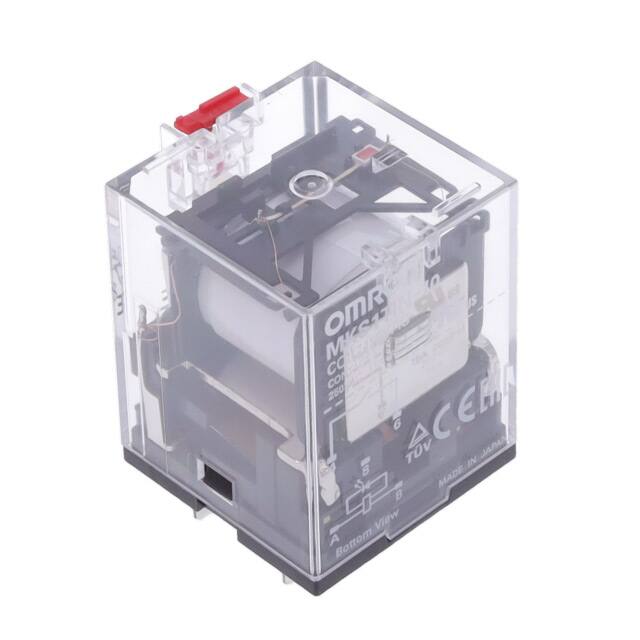

MKS1TIN-10 AC110RELAY GEN PURPOSE SPST 15A 110V |
7 |
|
Datasheet |
MKS-X | Bulk | Obsolete | Socketable | 110VAC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 3750VA | 21 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 88 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
8920990000RELAY GEN PURPOSE 3PDT 10A 24V |
10 |
|
Datasheet |
RCM KIT | Bulk | Active | DIN Rail | 24VAC | 3PDT (3 Form C) | 10 A | 250VAC - Max | 2500VA | 41.6 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
KUMP-11AT8-120RELAY GEN PURPOSE DPDT 15A 120V |
0 |
|
Datasheet |
KUMP | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 24 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
R10-R2Y2-J2.5KRELAY GEN PURPOSE DPDT 3A 24V |
0 |
|
Datasheet |
R10 | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 28 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 14.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
90293RELAY GEN PURPOSE SPDT 18A 24V |
24 |
|
Datasheet |
HCR-5 | Box | Discontinued at Digi-Key | Chassis Mount | 24VAC | SPDT (1 Form C) | 18 A | - | - | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 20.4 VAC | 4.8 VAC | - | - | -40°C ~ 65°C | - | General Purpose | - | - |
|
90380RELAY GEN PURPOSE SPDT 18A 24V |
13 |
|
Datasheet |
HCR-5 | Box | Discontinued at Digi-Key | Chassis Mount | 24VAC | SPDT (DB/DM) (1 Form Z) | 18 A | - | - | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 20.4 VAC | 4.8 VAC | - | - | -40°C ~ 65°C | - | General Purpose | - | - |
|
|
90370RELAY GEN PURPOSE SPDT 18A 24V |
47 |
|
Datasheet |
HCR-5 | Box | Active | Chassis Mount | 24VAC | SPDT (1 Form C) | 18 A | - | - | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 20.4 VAC | 4.8 VAC | - | - | -40°C ~ 65°C | - | General Purpose | - | - |
|
KUP-14A45-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Datasheet |
KUP | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 115 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
HR723-1C-24VDCRELAY GEN PURPOSE SPDT 30A 24V |
32 |
|
Datasheet |
HR723 | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 30 A | 250VAC, 110VDC - Max | - | 117 mA | - | - | Screw Terminal | - | - | - | - | 30 ms | 30 ms | -55°C ~ 80°C | Silver Alloy | General Purpose | - | - |
|
KU-11D45F-24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Datasheet |
KU | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | - | 52 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | General Purpose | - | - |
