Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUMF23EDHARMONY, UNIVERSAL PLUG-IN RELAY |
10 |
|
Datasheet |
Harmony | Box | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 26.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RPM41EDHARMONY, POWER PLUG-IN RELAY, 15 |
12 |
|
Datasheet |
Harmony | Box | Obsolete | Socketable | 48VDC | 4PDT (4 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 39.7 mA | Non Latching | Test Button | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
STKR 524RELAY GEN PURPOSE SPDT 6A 24V |
6 |
|
Datasheet |
STKR | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 8 A | 400VAC, 250VDC - Max | - | - | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 19.2 VAC/DC | 4.8 VAC/DC | 8 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
KRPA-11AY-6RELAY GEN PURPOSE DPDT 5A 6V |
0 |
|
Datasheet |
KRPA | Bulk | Obsolete | Socketable | 6VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 335 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 5.1 VAC | - | - | - | -45°C ~ 55°C | Silver (Ag) | General Purpose | - | - |
|
KUP-14A25-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Datasheet |
KUP | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 117 mA | Non Latching | Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
MT236230RELAY GEN PURPOSE DPDT 10A 230V |
0 |
|
Datasheet |
MT, SCHRACK | Tray | Obsolete | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 2500VA | 27.7 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | Class B | 184 VAC | 92 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
8-1393305-4RELAY GEN PURPOSE SPDT 30A 24V |
0 |
|
Datasheet |
F4 | Bulk | Active | Chassis Mount | 24VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 66.7 mA | Non Latching | Diode | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | - | 14.4 VDC | 2.4 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | General Purpose | - | - |
|
|
RB-G7L-2A-V110G7L 2A Relay DIN BRKOUT 20A 2HP |
20 |
|
- |
RB | Bag | Active | DIN Rail | 120VAC | DPST-NO (2 Form A) | 20 A | 250VAC - Max | - | 20.4 mA | Non Latching | - | Screw Terminal | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
2759060000MINIATURE INDUSTRIAL RELAY, 24 V |
20 |
|
Datasheet |
FSR | Box | Active | Through Hole | 24VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 6 A | 250VAC - Max | 1500VA | 21 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
|
KU-1873-1RELAY GEN PURP |
42 |
|
- |
KU | Tray | Obsolete | Chassis Mount | - | SPST-NO (1 Form A) | 10 A | 240VAC - Max | - | - | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | - | - | - | - | - | - | General Purpose | - | - |
|
KUHP-5A17-120RELAY GEN PURPOSE SPDT 30A 120V |
0 |
|
Datasheet |
KUHP | Bulk | Active | Through Hole | 120VAC | SPDT (1 Form C) | 30 A | 240VAC - Max | 7200VA | 24 mA | Non Latching | - | PC Pin | - | Class B | 102 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
9-1393104-0Power/Signal Relay, 3 Form C, 3P |
27 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HR723-2A-220VACRELAY GEN PURPOSE DPST 30A 220V |
23 |
|
Datasheet |
HR723 | Box | Active | DIN Rail | 220VAC | DPST-NO (2 Form A) | 30 A | 250VAC, 110VDC - Max | - | 43.6 mA | - | - | Screw Terminal | - | - | - | - | 30 ms | 30 ms | -55°C ~ 80°C | Silver Alloy | General Purpose | - | - |
|
|
HR723-2A-24VDCRELAY GEN PURPOSE DPST 30A 24V |
22 |
|
Datasheet |
HR723 | Box | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 30 A | 250VAC, 110VDC - Max | - | 117 mA | - | - | Screw Terminal | - | - | - | - | 30 ms | 30 ms | -55°C ~ 80°C | Silver Alloy | General Purpose | - | - |
|
|
HR723-2A-110VACRELAY GEN PURPOSE DPST 30A 110V |
11 |
|
Datasheet |
HR723 | Box | Active | DIN Rail | 110VAC | DPST-NO (2 Form A) | 30 A | 250VAC, 110VDC - Max | - | 87.3 mA | - | - | Screw Terminal | - | - | - | - | 30 ms | 30 ms | -55°C ~ 80°C | Silver Alloy | General Purpose | - | - |
|

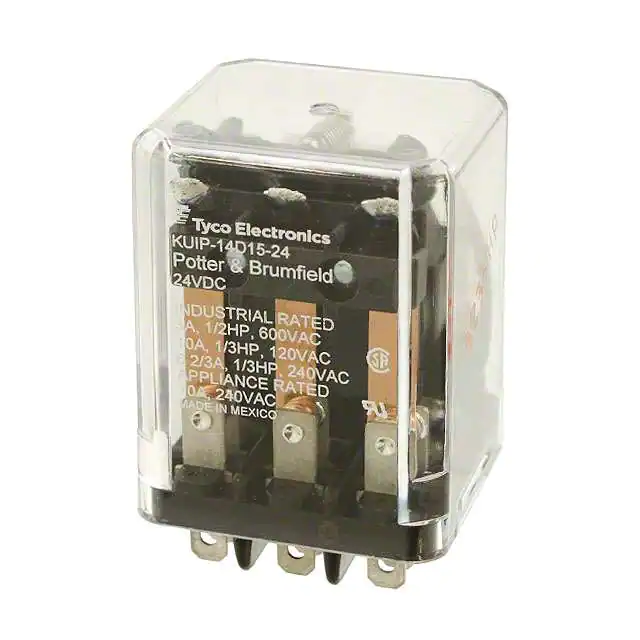

KUIP-14D15-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Datasheet |
KUIP | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 20 ms | 15 ms | -45°C ~ 95°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUEP-11A15-240RELAY GEN PURPOSE DPDT 10A 240V |
81 |
|
Datasheet |
KUEP | Bulk | Obsolete | Socketable | 240VAC | DPDT (2 Form C) | 10 A | 150VDC - Max | 1500VA | 12 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RSL1PRFUHARMONY, SLIM INTERFACE RELAY PR |
9 |
|
Datasheet |
Harmony | Box | Active | DIN Rail | 60VDC | SPDT (1 Form C) | 6 A | 277VAC - Max | 1662VA | 2.9 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | 3 VDC | 12 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
RSL1PRPUSPG SOCKET, 48/60 AC/DC (RLY 48/ |
8 |
|
Datasheet |
Harmony | Box | Active | Socketable | 60VDC | SPDT (1 Form C) | 6 A | 277VAC - Max | 1662VA | 2.9 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | 3 VDC | 12 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

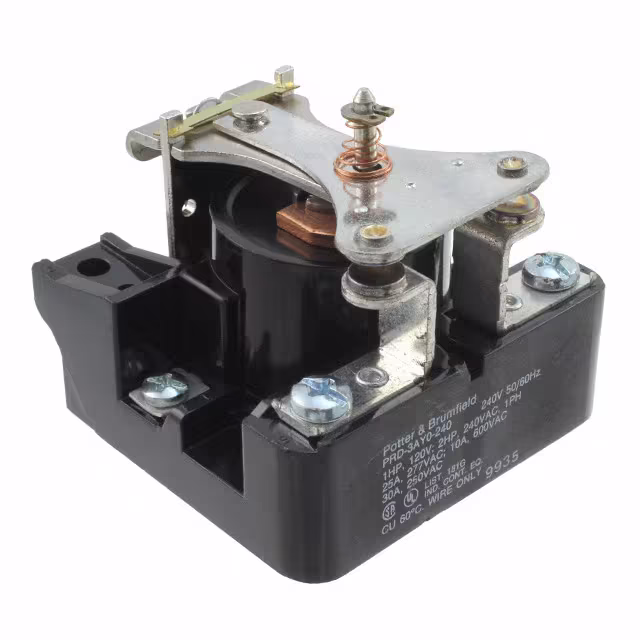

PRD-3AY0-240RELAY GEN PURPOSE SPST 25A 240V |
0 |
|
Datasheet |
PRD | Bulk | Obsolete | Chassis Mount | 240VAC | SPST-NO (DM) (1 Form X) | 25 A | 600VAC, 125VDC - Nom | - | 43 mA | Non Latching | - | Screw Terminal | - | Class B | 204 VAC | 24 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
