Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J107F1AS205VDC.80RELAY GEN PURPOSE SPST 20A 5V |
920 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 161.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AWHSH105D00GRELAY GEN PURPOSE SPST 15A 5V |
9,500 |
|
Datasheet |
AWH | Tube | Active | Through Hole | 5VDC | SPDT | 15 A | 240VAC, 110VDC - Max | 3600VA, 1650W | - | Non Latching | - | PC Pin | Sealed - Fully | - | - | - | 10 ms | 5 ms | -30°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
J107F1CS123VDC.36RELAY GEN PURPOSE SPDT 12A 3V |
4,334 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7709T-1AE-12DSEFRELAY GEN PURPOSE SPST 10A 12V |
2,889 |
|
Datasheet |
AZ7709 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J107F1AS125VDC.36RELAY GEN PURPOSE SPST 12A 5V |
1,700 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J102K1CS324VDC.20RELAY GEN PURPOSE SPDT 3A 24V |
1,319 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
PR12-5V-360-1CRELAY GEN PURPOSE SPDT 15A 5V |
599 |
|
Datasheet |
PR12 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 71.4 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
PR12-12V-360-1CRELAY GEN PURPOSE SPDT 15A 12V |
560 |
|
Datasheet |
PR12 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 30 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|

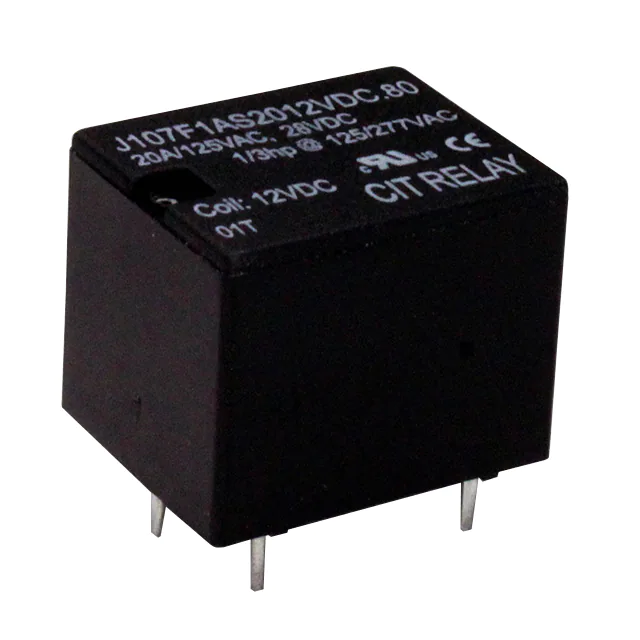

J107F1AS2012VDC.80RELAY GEN PURPOSE SPST 20A 12V |
2,623 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AWHSH112D00GRELAY GEN PURPOSE SPST 15A 12V |
1,562 |
|
Datasheet |
AWH | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 240VAC, 110VDC - Max | 3600VA, 1650W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
PC236-1C-12S-XRELAY GEN PURPOSE SPDT 20A 12V |
2,660 |
|
Datasheet |
PC236 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC, 48VDC - Max | 5540VA, 960W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9.6 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1021CS524VDC.45RELAY GEN PURPOSE SPDT 5A 24V |
2,638 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

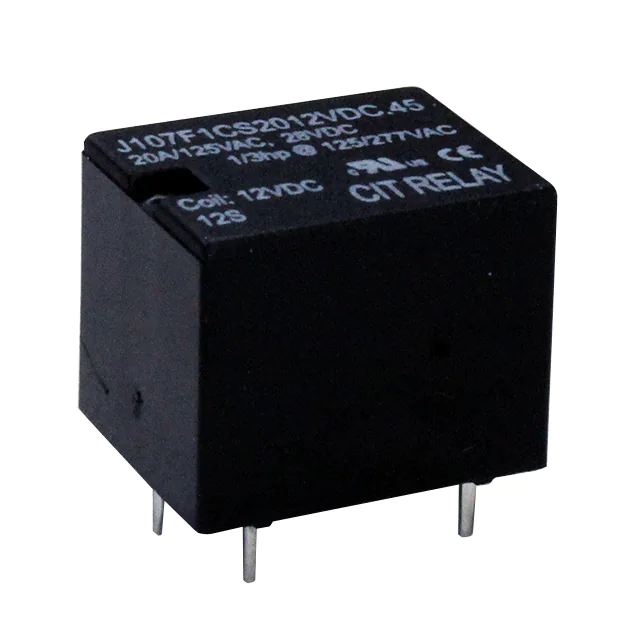

J107F1CS2012VDC.45RELAY GEN PURPOSE SPDT 20A 12V |
1,900 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AWHSH124D00GRELAY GEN PURPOSE SPDT 15A 24V |
1,771 |
|
Datasheet |
AWH | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 15 A | 240VAC, 110VDC - Max | 3600VA, 1650W | - | Non Latching | - | PC Pin | Sealed - Fully | - | - | - | 10 ms | 5 ms | -30°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
J107F1CS209VDC.45RELAY GEN PURPOSE SPDT 20A 9V |
1,494 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G5Q-1A4-EL3-HA DC12RELAY GEN PURPOSE SPST 10A 12V |
12,581 |
|
Datasheet |
G5Q-EL3 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
J1131AS24VDC.20RELAY GEN PURPOSE SPST 5A 24V |
2,873 |
|
Datasheet |
J113 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
ALQ318RELAY GEN PURPOSE SPST 10A 18V |
1,538 |
|
Datasheet |
ALQ | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 11.1 mA | Non Latching | - | PC Pin | - | Class B | 13.5 VDC | 0.9 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

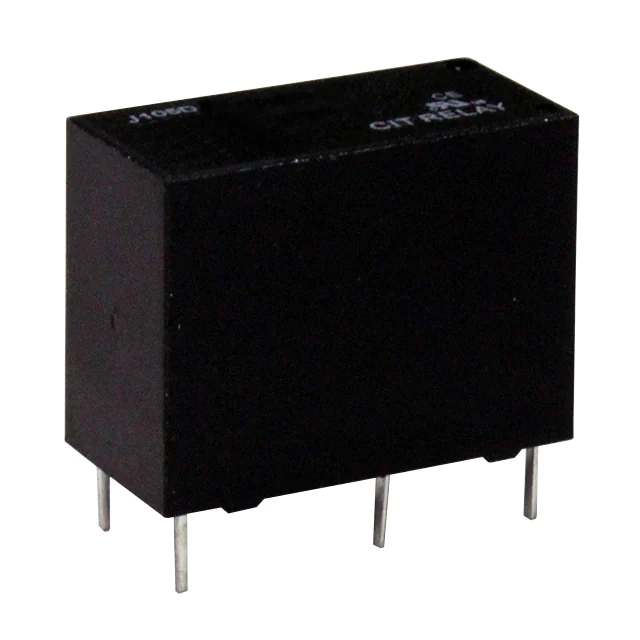

J105D1AS12VDC.20RELAY GEN PURPOSE SPST 10A 12V |
1,934 |
|
Datasheet |
J105D | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G5Q-1A-EU DC12RELAY GEN PURPOSE SPST 10A 12V |
10,810 |
|
Datasheet |
G5Q | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
