Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ9422-1CE-12DEFRELAY GEN PURPOSE SPDT 20A 12V |
413 |
|
Datasheet |
AZ9422 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC, 30VDC - Max | 4700VA, 480W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
AZ943-1AH-24DERELAY GEN PURPOSE SPST 15A 24V |
11,655 |
|
Datasheet |
AZ943 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 277VAC, 30VDC - Max | 2770VA, 300W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

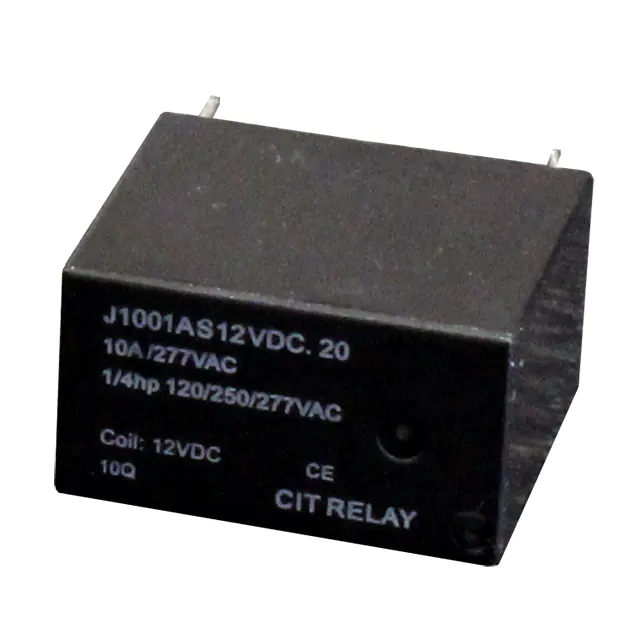

J1001AS12VDC.20RELAY GEN PURPOSE SPST 10A 12V |
2,239 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ9322-1BH-5DRELAY GEN PURPOSE SPST 15A 5V |
764 |
|
Datasheet |
AZ9322 | Tray | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 15 A | 277VAC - Max | 1800VA | 71.43 mA | Non Latching | - | PC Pin | - | Class B | 3.8 VDC | - | 10 ms | 5 ms | - | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AHQSH112LM100GRELAY GEN PURPOSE SPST 16A 12V |
1,479 |
|
Datasheet |
AHQ | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 277VAC, 24VDC - Max | 3324VA, 288W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
|
AHQSH112LM1F00GRELAY GEN PURPOSE SPST 16A 12V |
1,169 |
|
Datasheet |
AHQ | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 277VAC, 24VDC - Max | 4432VA, 384W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
J1021CS35VDC.20RELAY GEN PURPOSE SPDT 3A 5V |
8,390 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

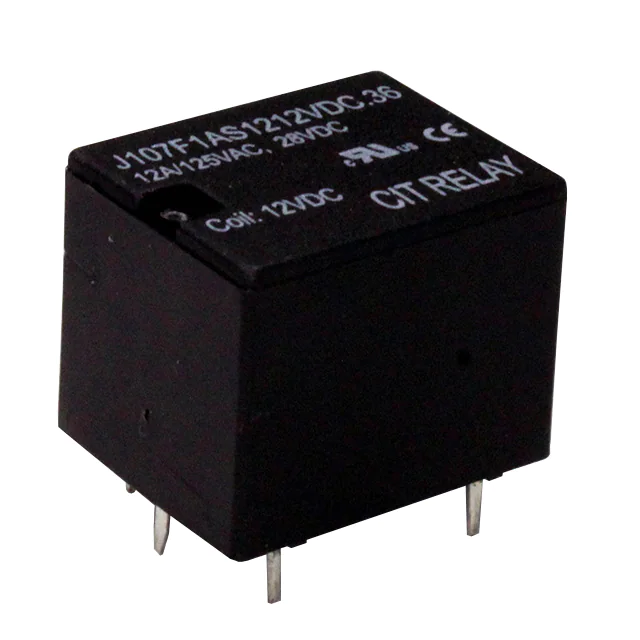

J107F1AS1212VDC.36RELAY GEN PURPOSE SPST 12A 12V |
3,266 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AHQSH115LM1F00GRELAY GEN PURPOSE SPST 16A 15V |
1,753 |
|
Datasheet |
AHQ | Box | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 24VDC - Max | 4432VA, 384W | 13.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 12 VDC | 0.75 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
|
AWHSH124DM00GRELAY GEN PURPOSE SPST 15A 24V |
1,103 |
|
Datasheet |
AWH | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 240VAC, 110VDC - Max | 3600VA, 1650W | - | Non Latching | - | PC Pin | Sealed - Fully | - | - | - | 10 ms | 5 ms | -30°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
J102K1CS312VDC.20RELAY GEN PURPOSE SPDT 3A 12V |
193 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ943-1CH-12DEFRELAY GEN PURPOSE SPDT 10A 12V |
12,128 |
|
Datasheet |
AZ943 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

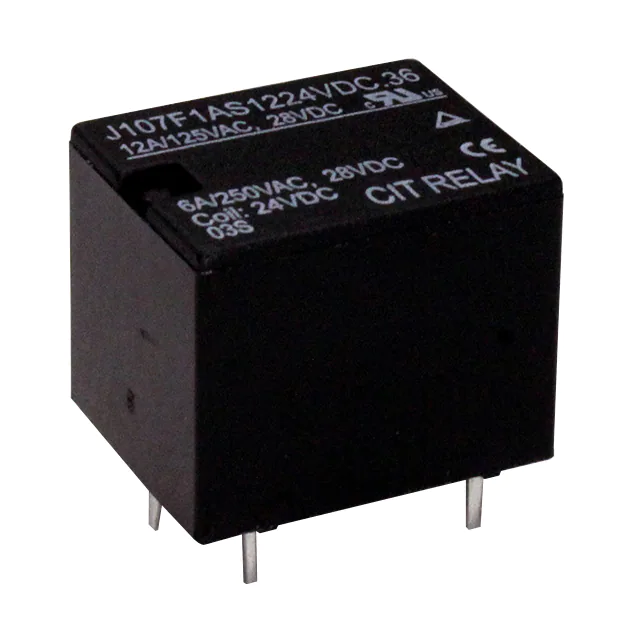

J107F1AS1224VDC.36RELAY GEN PURPOSE SPST 12A 24V |
4,240 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ9375-1A-12DEFRELAY GEN PURPOSE SPST 10A 12V |
3,306 |
|
Datasheet |
AZ9375 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 4 ms | -40°C ~ 90°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

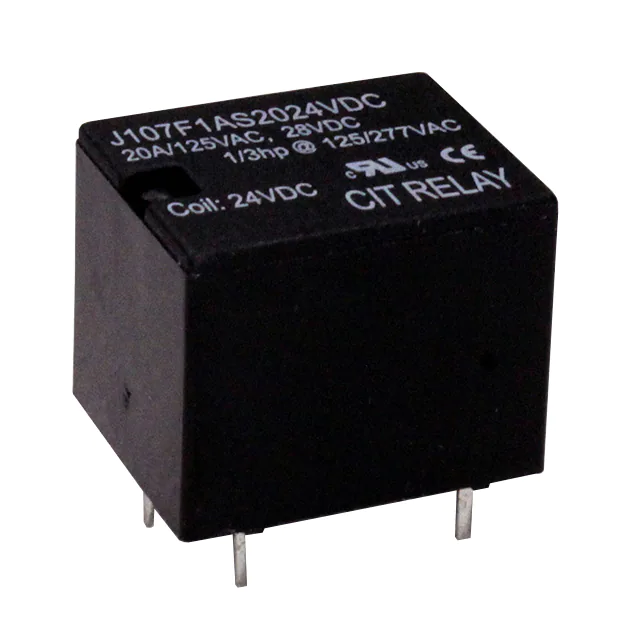

J107F1AS2024VDC.80RELAY GEN PURPOSE SPST 20A 24V |
2,635 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 7600VA, 2200W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J1021CS55VDC.45RELAY GEN PURPOSE SPDT 5A 5V |
785 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

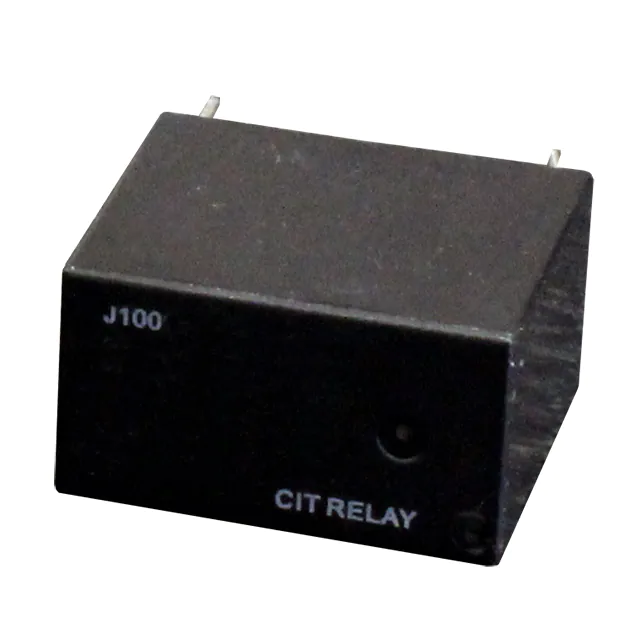

J1001AS5VDC.20RELAY GEN PURPOSE SPST 10A 5V |
356 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G5LE-14-36 DC24RELAY GEN PURPOSE SPDT 10A 24V |
37,037 |
|
Datasheet |
G5LE | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

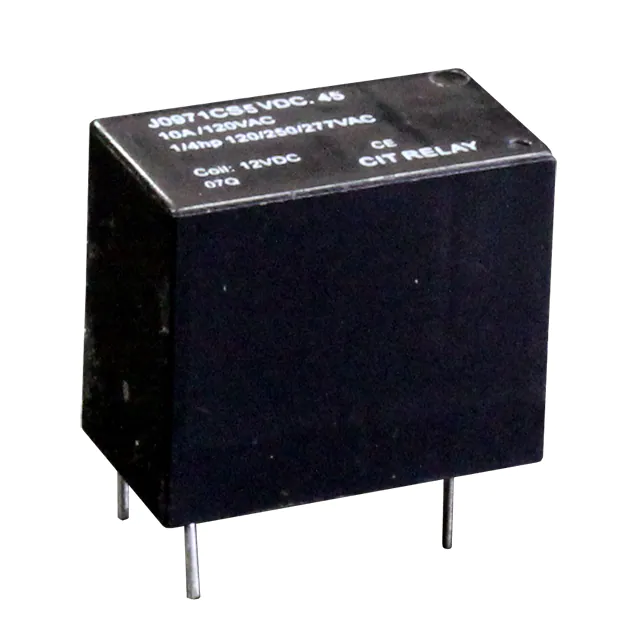

J0971CS5VDC.45RELAY GEN PURPOSE SPDT 10A 5V |
3,808 |
|
Datasheet |
J097 | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1021CS512VDC.45RELAY GEN PURPOSE SPDT 5A 12V |
2,980 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 300VAC, 150VDC - Max | 1500VA, 750W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
