Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T90S1D11-09-01RELAY PWR |
0 |
|
- |
T90 | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 92.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
2-1393239-9RELAY GEN PURPOSE SPST 12A 20V |
0 |
|
Datasheet |
RT1, SCHRACK | Bulk | Active | Through Hole | 20VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 21 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 14 VDC | 2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
V23105A5006A201RELAY TELECOM DPDT 3A 9V |
4,815 |
|
Datasheet |
V23105, AXICOM | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 16.7 mA | Non Latching | - | PC Pin | - | - | 7.2 VDC | 0.45 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | Telecom | - | - |
|
|
5-1416200-8V23061-C2007-A802 |
0 |
|
Datasheet |
V23061, AXICOM | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1956240-3RELAY GEN PURP |
0 |
|
Datasheet |
V23061, AXICOM | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
3-1393225-2RELAY GEN PURPOSE SPDT 8A 18V |
0 |
|
Datasheet |
RY, SCHRACK | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | - | - | - | - | 9 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
V23105A5505A201RELAY TELECOM DPDT 3A 24V |
3,687 |
|
Datasheet |
V23105, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 23 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | Telecom | - | - |
|
|
V23105A5405A201RELAY TELECOM DPDT 3A 24V |
3,141 |
|
Datasheet |
V23105, AXICOM | Box | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 16.7 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | Telecom | - | - |
|
|
1415899-8RELAY GEN PURPOSE SPDT 12A 6V |
0 |
|
Datasheet |
RZ, SCHRACK | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 66.7 mA | Non Latching | - | PC Pin | - | Class F | 4.2 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J115F11C9VDCS6.6RELAY GEN PURPOSE SPDT 40A 9V |
267 |
|
Datasheet |
J115F1 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
4-1415536-2RELAY GEN PURPOSE SPST 16A 12V |
5,917 |
|
Datasheet |
RTH, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 105°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
T9GS1L14-48RELAY GEN PURPOSE SPST 30A 48V |
0 |
|
Datasheet |
T9G | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
2-1393224-5RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
- |
RY, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RY530005RELAY GEN PURPOSE SPST 8A 5V |
0 |
|
Datasheet |
RY, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RY530006RELAY GEN PURPOSE SPST 8A 6V |
0 |
|
Datasheet |
RY, SCHRACK | Tube | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 37 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

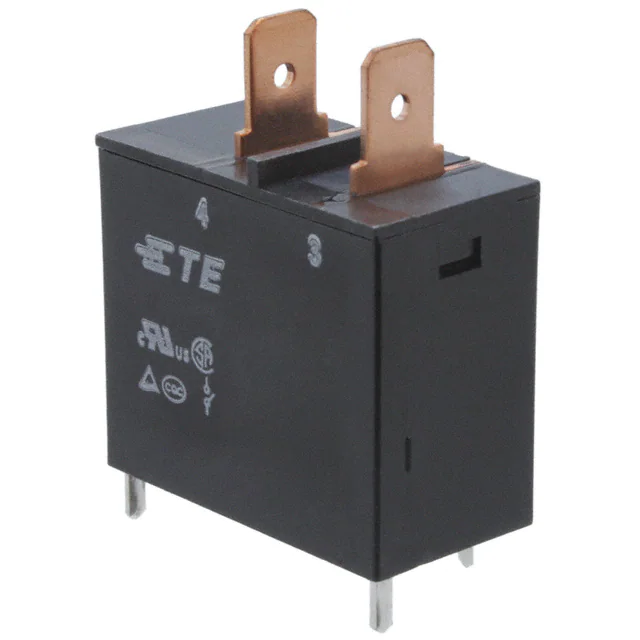

PCF-124D2M,000RELAY GEN PURPOSE SPST 25A 24V |
1,524 |
|
Datasheet |
PCF, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 25 A | 277VAC, 24VDC - Max | 6925VA, 600W | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
V23105A5002A201RELAY TELECOM DPDT 3A 6V |
0 |
|
Datasheet |
V23105, AXICOM | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 25 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.3 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | Telecom | - | - |
|
V23061B1006A401RELAY GEN PURPOSE SPDT 8A 18V |
0 |
|
Datasheet |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 12.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 12.2 VDC | 1.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23061A1005A402RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 18.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 8.2 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
8-1415398-1RTD1L024 |
0 |
|
Datasheet |
RT, SCHRACK | Tube | Discontinued at Digi-Key | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
