Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RZF1-1A4-L009RELAY GEN PURPOSE SPST 16A 9V |
392 |
|
Datasheet |
RZF, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 58.9 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RZF1-1A4-L006RELAY GEN PURPOSE SPST 16A 6V |
383 |
|
Datasheet |
RZF, SCHRACK | Tube | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 90.1 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | Class F | 4.2 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
PCH-105L2MH,000RELAY GEN PURPOSE SPST 5A 5V |
16,210 |
|
Datasheet |
PCH, OEG | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
OJ-SS-124LMH2-WGPower/Signal Relay, 1 Form A, SP |
6,054 |
|
Datasheet |
OJ, OEG | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | - | - | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | - | - | - | - | - | - | General Purpose | - | - |
|

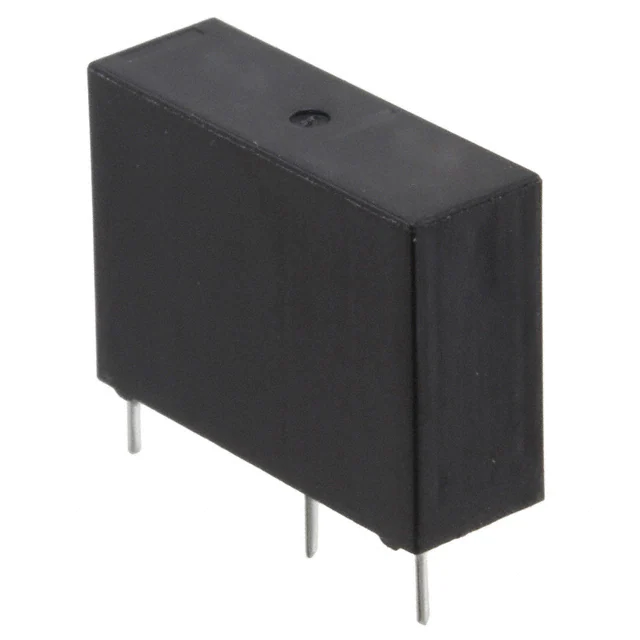

PCJ-124D3M,301RELAY GEN PURPOSE SPST 3A 24V |
3,456 |
|
Datasheet |
PCJ, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 30VDC - Max | 750VA, 90W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 18 VDC | 1.2 VDC | 10 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RZF1-1A6-L009RELAY GEN PURPOSE SPST 16A 9V |
400 |
|
Datasheet |
RZF, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 58.9 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RZF1-1A4-L018RELAY GEN PURPOSE SPST 16A 18V |
368 |
|
Datasheet |
RZF, SCHRACK | Tube | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 29.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
PCH-105D2,000RELAY GEN PURPOSE SPDT 5A 5V |
5,800 |
|
Datasheet |
PCH, OEG | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
3-2158100-5RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Datasheet |
RZL, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
3-2158100-4RELAY GEN PURPOSE SPDT 12A 12V |
0 |
|
Datasheet |
RZL, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 6400VA | 44.1 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G5LE-1A-VDDC12RELAY GEN PURPOSE SPST 10A 12V |
253 |
|
Datasheet |
G5LE | Tray | Last Time Buy | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
1-1393280-1V23086C1002A403 |
0 |
|
Datasheet |
V23086, AXICOM | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 480W | 66.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 5.7 VDC | 1.25 VDC | 3 ms | 1.5 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
|
2-2158100-3RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Datasheet |
RZL, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
PCH-124L2MH,000RELAY GEN PURPOSE SPST 5A 24V |
2,028 |
|
Datasheet |
PCH, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RZF1-1A6-L018RELAY GEN PURPOSE SPST 16A 18V |
364 |
|
Datasheet |
RZF, SCHRACK | Tube | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 29.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
PCJ-124D3MH,301RELAY GEN PURPOSE SPST 3A 24V |
13,360 |
|
Datasheet |
PCJ, OEG | Tray | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 30VDC - Max | 750VA, 90W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 10 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
JS1A-9V-FRELAY GEN PURPOSE SPST 10A 9V |
458 |
|
Datasheet |
JS | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
3-2158000-9RZ03-1A3-D005-R |
513,193 |
|
- |
RZ, SCHRACK | Bulk | Active | Through Hole | 5VDC | - | 16 A | 400VAC - Max | 6400VA | - | Non Latching | - | PC Pin | - | Class F | - | - | - | - | - | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
4-1393224-2Power/Signal Relay, 1 Form C, SP |
6,820 |
|
Datasheet |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMI-SH-124D,300RELAY GEN PURPOSE SPDT 10A 24V |
2,668 |
|
Datasheet |
OMI, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.8 VDC | 1.2 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
