Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP5907UVX1.825-SPROTOTYPE |
0 |
|
Datasheet |
- | 4-XFBGA, DSBGA | Bulk | Active | Positive | Fixed | 1 | 5.5V | 1.825V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 4-DSBGA |
|
|
LM2931CMX/SL162913PROTOTYPE |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Adjustable | 1 | 26V | 3V | 24V | 0.6V @ 100mA | 100mA | 1 mA | 15 mA | - | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LM117GW-QMLPROTOTYPE |
0 |
|
Datasheet |
- | 16-CSOIC (0.241", 6.12mm Width) | Bulk | Active | Positive | Adjustable | 1 | 41.25V | 1.2V | 37V | - | 500mA | 3 mA | - | 65dB ~ 60dB (2.4kHz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-CFP |
|
|
LM2931AMX-5.0/SL162905PROTOTYPE |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 30 mA | 80dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|

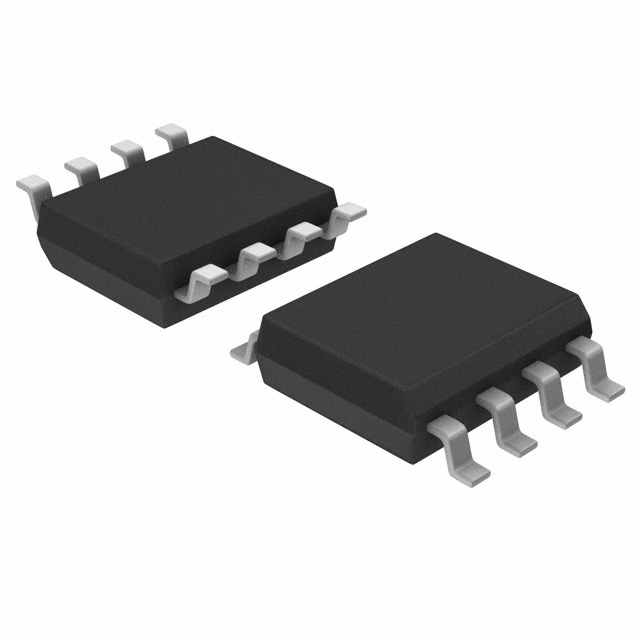

LM2936MX-5.0/S7002394PROTOTYPE |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LM1117IMP-ADJ/S1PROTOTYPE |
0 |
|
Datasheet |
- | TO-261-4, TO-261AA | Bulk | Active | Positive | Adjustable | 1 | 15V | 1.25V | 13.8V | 1.4V @ 800mA | 800mA | 5 mA | - | - | Current Limit | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-4 |
|
|
LP2951ACMX/E7001866PROTOTYPE |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LP2951ACMX-3.3/E7001834PROTOTYPE |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LM117HVK-QMLPROTOTYPE |
0 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | Positive | Adjustable | 1 | 60V | 1.2V | 57V | 1.5V @ 1.5A | 1.5A | 8.2 mA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Through Hole | TO-3-2 |
|
|
LM1117IDTX-ADJ/J7002947PROTOTYPE |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Positive | Fixed | 1 | 15V | 1.25V | 13.8V | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252 |
|
|
LM117H/883/MABIPROTOTYPE |
0 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Adjustable | 1 | 41.25V | 1.2V | 37V | - | 500mA | 100 µA | - | - | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-3 |
|
|
LP3965ES-18-AUPROTOTYPE |
0 |
|
- |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Obsolete | Positive | Fixed | 1 | 7V | 1.8V | - | 0.55V @ 1.5A | 1.5A | 10 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
M38510/11804SYASPACE GRADE -4.2-V TO -40-V, 1.5 |
0 |
|
Datasheet |
- | TO-204AA, TO-3 | Tray | Active | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | 5 mA | - | 48dB (2.4kkHz) | Current Limit | Over Current, Over Temperature | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3-2 |
|
M38510/10201SCASPACE-GRADE, 9.5-V TO 40-V, 150- |
0 |
|
Datasheet |
- | 14-CDIP (0.300", 7.62mm) | Tube | Active | Positive | Adjustable | 1 | 40V | 2V | 37V | - | 150mA | - | - | 64dB ~ 74dB (10kHz) | Current Limit | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
|

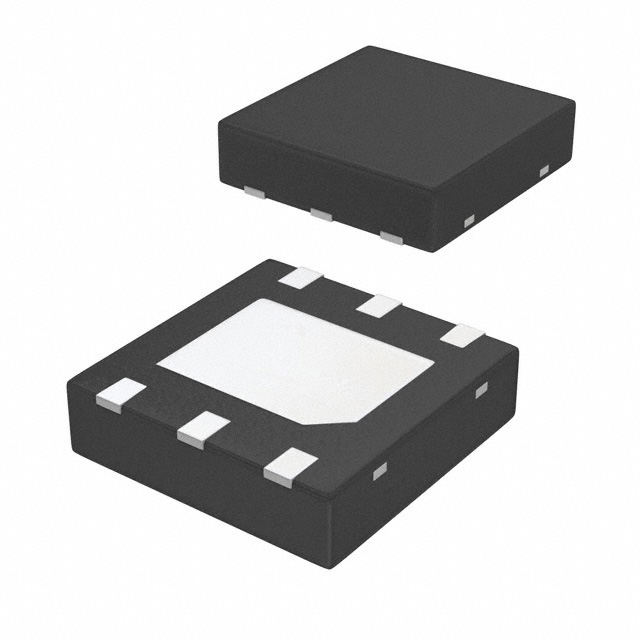

LP38690SD-ADJ/J7002355PROTOTYPE |
0 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Bulk | Active | Positive | Adjustable | 1 | 10V | 1.8V | 5V | 1.3V @ 1A | 1A | 100 µA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (3x3) |
|
|
LP3878SD-ADJ/J7002766PROTOTYPE |
0 |
|
- |
- | 8-WDFN Exposed Pad | Bulk | Active | Positive | Programmable | 1 | 6V | 1V | 1.2V | - | 800mA | 225 µA | 10 mA | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WSON (4x4) |
|
LP2985IM5X-3.3/S5001421PROTOTYPE |
0 |
|
- |
- | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.18V @ 150mA | 150mA | 125 µA | - | 78dB ~ 45dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
LM2937-80KTTRPROTOTYPE |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Bulk | Active | Positive | Fixed | 1 | 26V | 8V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | Current Limit | Mirror-Image Insertion, Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 85°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LM1086ISX-5.0PROTOTYPE |
0 |
|
- |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Bulk | Obsolete | Positive | Fixed | 1 | 25V | 5V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | 68dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|

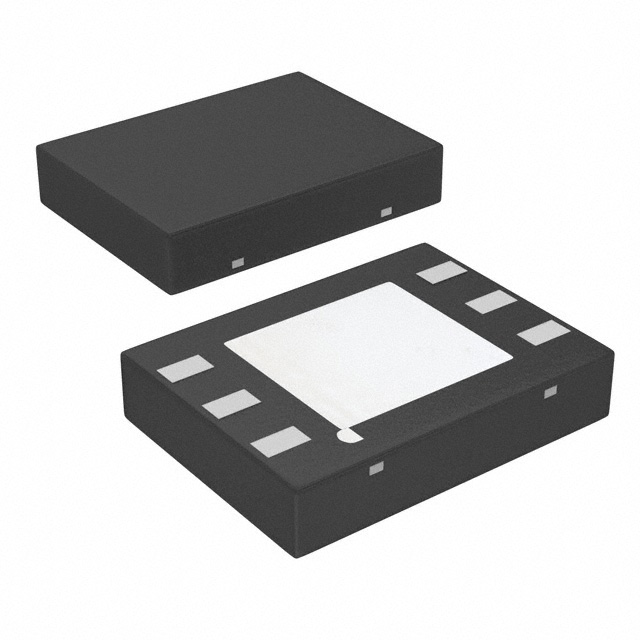

LP8340ILDX-ADJ/AULFPROTOTYPE |
0 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Bulk | Active | Positive | Adjustable | 1 | 10V | 1.25V | 9.3V | 1V @ 1A | 1A | 50 µA | 170 µA | 55dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2.92x3.29) |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
