Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC78L05F-TP-HFIC REG LINEAR 5V 100MA SOT-89 |
0 |
|
Datasheet |
- | TO-243AA | Bulk | Active | Positive | Fixed | 1 | 30V | 5V | - | 1.7V @ 40mA | 100mA | 5.5 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -20°C ~ 120°C (TJ) | - | - | Surface Mount | SOT-89 |
|
LP2951CMX/E7002608PROTOTYPE |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Adjustable | 1 | 30V | 1.235V | 30V | 0.6V @ 100mA | 100mA | 140 µA | 14 mA | - | Enable, Error Flag | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

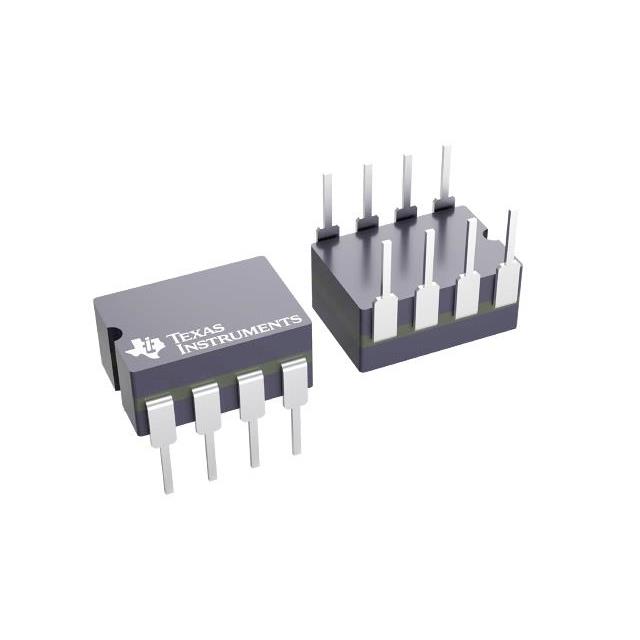

JL2951BPASERIES OF ADJUSTABLE MICROPOWER |
0 |
|
- |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (5V) | 29V | 0.6V @ 100mA | 100mA | 20 mA | - | 50dB (120Hz) | Enable | Over Temperature | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CDIP |
|
LM2991 MD8NEGATIVE LOW DROPOUT ADJUSTABLE |
0 |
|
Datasheet |
- | Die | Tube | Active | Negative | Adjustable | 1 | -26V | -2V | -25V | 1V @ 1A | 1A | 5 mA | - | 50dB (1kHz) | Enable | Over Temperature, Short Circuit | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
LM2936M-5.0/SL162643PROTOTYPE |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

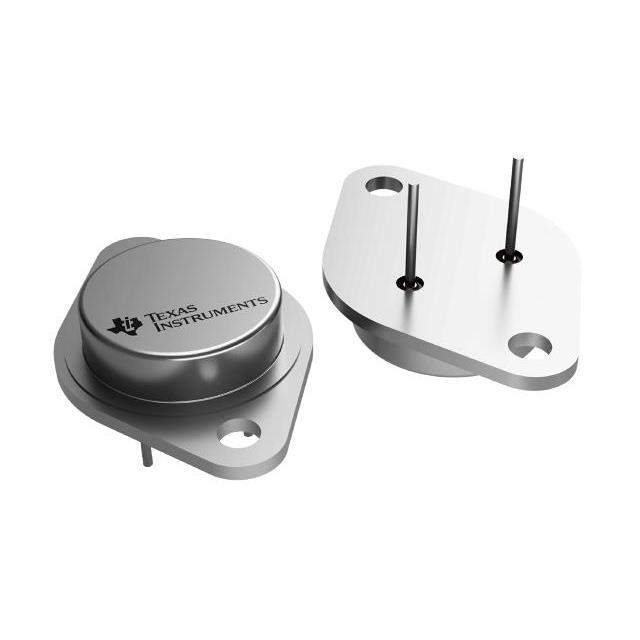

JL137SYASPACE GRADE -4.2-V TO -40-V, 1.5 |
0 |
|
- |
- | TO-204AA, TO-3 | Tray | Active | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | 5 mA | - | 48dB (2.4kkHz) | Current Limit | Over Current, Over Temperature | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3-2 |
|

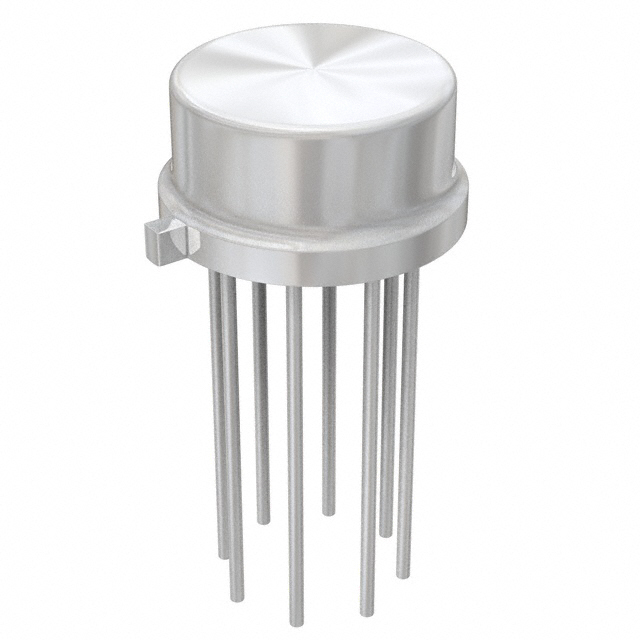

JM38510/10201SIASPACE-GRADE, 9.5-V TO 40-V, 150- |
0 |
|
Datasheet |
- | TO-100-10 Metal Can | Tray | Active | Positive | Adjustable | 1 | 40V | 2V | 37V | - | 150mA | - | - | 64dB ~ 74dB (10kHz) | Current Limit | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-100-10 |
|
|
LP2989ILDX-3.3/S5000796PROTOTYPE |
0 |
|
- |
- | 8-WDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.65V @ 500mA | 500mA | 200 µA | - | - | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WSON (4x4) |
|
|
LM2937ESX-5.0/E5000842PROTOTYPE |
0 |
|
- |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | - | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
LM1086IT-3.3/S4000135PROTOTYPE |
0 |
|
- |
- | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 27V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | - | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
LP2951CMX/ELDB1943PROTOTYPE |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Adjustable | 1 | 30V | 1.2V | 29V | 0.6V @ 100mA | - | 140 µA | 20 mA | - | Enable, Error Flag | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LM2941SX/ELDB1828PROTOTYPE |
0 |
|
- |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Obsolete | Positive | Adjustable | 1 | 26V | 5V | 20V | 0.2V @ 100mA | 1A | 20 mA | - | - | Enable | Mirror-Image Insertion, Over Current, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LM1117IDTX-3.3/J7003099PROTOTYPE |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Active | Positive | Adjustable | 1 | 15V | 3.3V | - | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252 |
|
|
LM723J/883/MABIPROTOTYPE |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LM2941T/SL108980PROTOTYPE |
0 |
|
- |
- | TO-220-5 Formed Leads | Bulk | Obsolete | Positive | Adjustable | 1 | 26V | 5V | 20V | 0.2V @ 100mA | 1A | 20 mA | - | - | Enable | Mirror-Image Insertion, Over Current, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
|
LM2937ESX-8.0/E7001854PROTOTYPE |
0 |
|
- |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 8V | - | 1V @ 500mA | 500mA | 10 mA | 20 mA | - | - | Mirror-Image Insertion, Over Temperature, Short Circuit, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
LM2941-MD81A LOW DROPOUT ADJUSTABLE REGULA |
0 |
|
Datasheet |
- | Die | Tube | Active | Positive | Adjustable | 1 | 26V | 5V | 20V | - | 1A | 20 mA | - | - | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -55°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
|
LM337T/ELLI802PROTOTYPE |
0 |
|
- |
- | TO-220-3 | Bulk | Obsolete | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | 10 mA | - | 77dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
LM1086IT-5.0/S5002153PROTOTYPE |
0 |
|
- |
- | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 25V | 5V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | - | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|

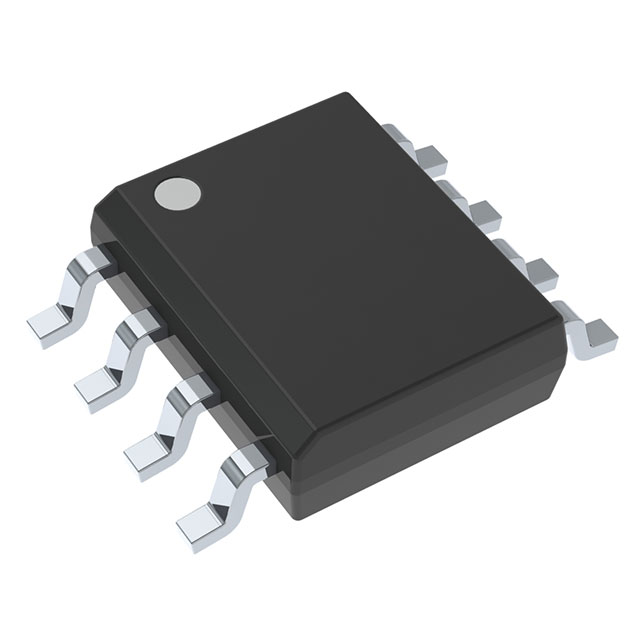

LP4951CMX/NAK2PROTOTYPE |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Positive | Adjustable | 1 | 30V | 1.235V | 30V | 0.6V @ 100mA | 100mA | 170 µA | 19 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
