Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPX5205M5-L-3-3IC REG LINEAR 3.3V 150MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 16V | 3.3V | - | 0.35V @ 150mA | 150mA | 5 µA | 2.5 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
AS1374-BWLT1833IC REG LINEAR 1.8V/3.3V 6WLCSP |
0 |
|
Datasheet |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | -, 0.15V @ 100mA | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
|
AS1374BWLT18285IC REG LINEAR 1.8V/2.85V 6WLCSP |
0 |
|
Datasheet |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 2.85V | - | -, 0.15V @ 100mA | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
AS13986-1833-TIC REG LINEAR 1.8V/3.3V 8WLP |
0 |
|
Datasheet |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | -, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WLP (1.55x1.55) |
|
|
AS13986-1225-TIC REG LINEAR 1.2V/2.5V 8WLP |
0 |
|
Datasheet |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 2.5V | - | -, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WLP (1.55x1.55) |
|
|
AS13986-2828-TIC REG LINEAR 2.8V/2.8V 8WLP |
0 |
|
Datasheet |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 2.8V, 2.8V | - | 0.1V @ 150mA, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WLP (1.55x1.55) |
|
|
AS1374-BWLT1818IC REG LINEAR 1.8V/1.8V 6WLCSP |
0 |
|
Datasheet |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 1.8V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
|
AS1374-BWLT1218IC REG LINEAR 1.2V/1.8V 6WLCSP |
0 |
|
Datasheet |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 1.8V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
|
AS1374-BWLT1214IC REG LINEAR 1.2V/1.4V 6WLCSP |
0 |
|
Datasheet |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 1.4V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|

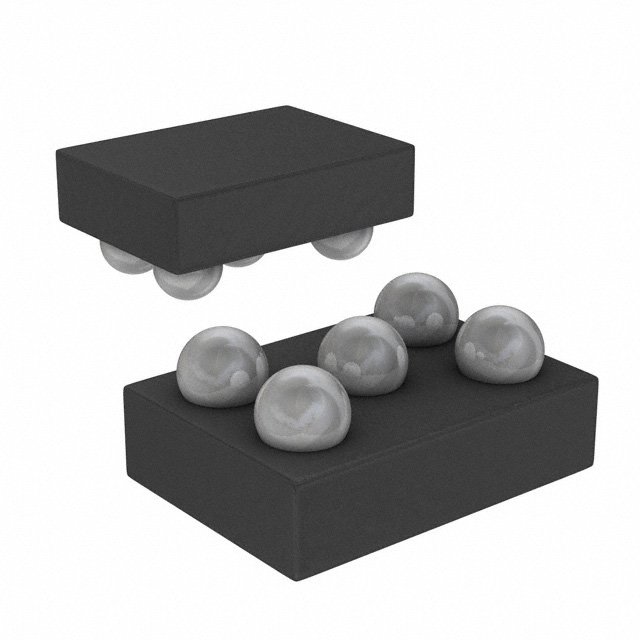

AS13985F-26-TIC REG LINEAR 2.6V 150MA 5WLCSP |
0 |
|
Datasheet |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F27-TIC REG LINEAR 2.7V 150MA 5WLCSP |
0 |
|
Datasheet |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F28-TIC REG LINEAR 2.8V 150MA 5WLCSP |
0 |
|
Datasheet |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F33-TIC REG LINEAR 3.3V 150MA 5WLCSP |
0 |
|
Datasheet |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F12-TIC REG LINEAR 1.2V 150MA 5WLCSP |
0 |
|
Datasheet |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F18-TIC REG LINEAR 1.8V 150MA 5WLCSP |
0 |
|
Datasheet |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F29-TIC REG LINEAR 2.9V 150MA 5WLCSP |
0 |
|
Datasheet |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
AS1360-40-TIC REG LINEAR 4V 200MA SOT23-3 |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 4V | - | 0.7V @ 200mA | 200mA | 1.5 µA | 3 µA | - | - | Over Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
AS13985F30-TIC REG LINEAR 3V 150MA 5WLCSP |
0 |
|
Datasheet |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
,TO-226_bentlead.jpg)
|
LP2950ACN-L-3-3/TRIC REG LINEAR 3.3V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 170 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
|
LP2950ACN-L-5-0/TRIC REG LINEAR 5V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 170 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
