Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS1353-15-TIC REG LINEAR 1.5V 150MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 150mA | 180 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS1353-26-TIC REG LINEAR 2.6V 150MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.6V @ 150mA (Typ) | 150mA | 180 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS1353-33-TIC REG LINEAR 3.3V 150MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.6V @ 150mA (Typ) | 150mA | 180 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
AS1353-36-TIC REG LINEAR 3.6V 150MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.6V @ 150mA (Typ) | 150mA | 180 µA | - | 60dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
AS1358-BTTT-18IC REG LIN 1.8V 150MA TSOT23-5 |
0 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
|
AS1358-BTTT-27IC REG LIN 2.7V 150MA TSOT23-5 |
0 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.12V @ 150mA | 150mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
|
AS1358-BTTT-285IC REG LIN 2.85V 150MA TSOT23-5 |
0 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.12V @ 150mA | 150mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
|
AS1359-BTTT-18IC REG LIN 1.8V 300MA TSOT23-5 |
0 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
|
AS1359-BTTT-26IC REG LIN 2.6V 300MA TSOT23-5 |
0 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.23V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable | Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
AS1361-BTTT-45IC REG LIN 4.5V 150MA TSOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.095V @ 150mA | 150mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
AS1362-BTTT-25IC REG LIN 2.5V 300MA TSOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.23V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
AS1362-BTTT-27IC REG LIN 2.7V 300MA TSOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.23V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
AS1362-BTTT-285IC REG LIN 2.85V 300MA TSOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.23V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
AS1362-BTTT-45IC REG LIN 4.5V 300MA TSOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | 0.2V @ 300mA | 300mA | 90 µA | - | 92dB ~ 62dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
AS1363-BSTT-15IC REG LINEAR 1.5V 500MA SOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 500mA | 150 µA | 200 µA | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
AS1363-BSTT-30IC REG LINEAR 3V 500MA SOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | - | 500mA | 150 µA | 200 µA | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
AS1363-BSTT-45IC REG LINEAR 4.5V 500MA SOT23-6 |
0 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | - | 500mA | 150 µA | 200 µA | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|

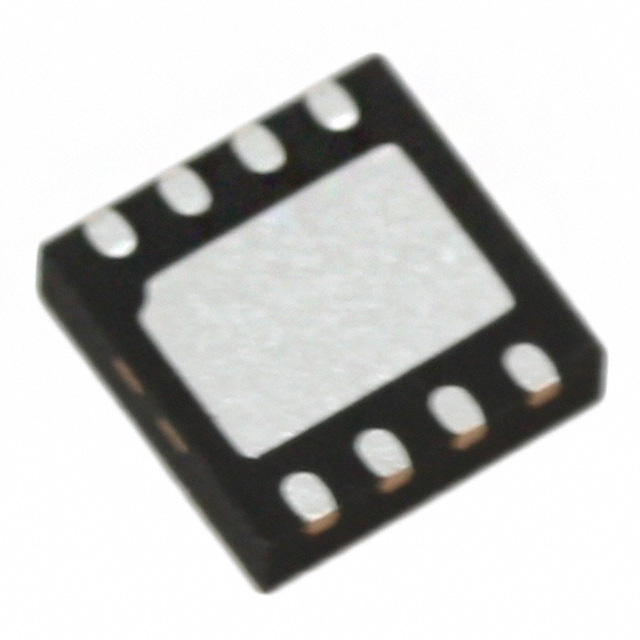

AS1364-BTDT-33IC REG LINEAR 3.3V 1A 8TDFN |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.32V @ 1A | 1A | 150 µA | 200 µA | 78dB ~ 46dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (3x3) |
|

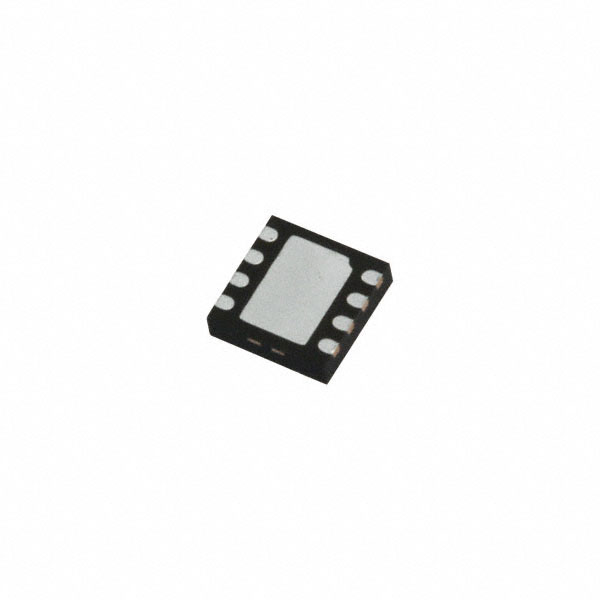

AS1364-BTDT-45IC REG LINEAR 4.5V 1A 8TDFN |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 4.5V | - | - | 1A | 150 µA | 200 µA | 78dB ~ 46dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
AS1367-BTDT-12IC REG LINEAR 1.2V 150MA 8TDFN |
0 |
|
Datasheet |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 150mA | 16 µA | 30 µA | 75dB ~ 52dB (1kHz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 8-TDFN (2x2) |
