Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV8674DS120GIC REG LINEAR 12V 350MA D2PAK |
0 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Positive | Fixed | 1 | 45V | 12V | - | 0.6V @ 350mA | 350mA | 42 µA | - | 67dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
|
NCV8674DS120R4GIC REG LINEAR 12V 350MA D2PAK |
0 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 12V | - | 0.6V @ 350mA | 350mA | 42 µA | - | 67dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
L4993DIC REG LINEAR 5V 150MA 8SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 125 µA | 2 mA | 55dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
L4995KIC REG LIN 5V 500MA POWERSSO-24 |
0 |
|
Datasheet |
- | 24-PowerBSOP (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-24 |
|
|
L4988DIC REG LINEAR 5V 200MA 8SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 200mA | 200mA | 150 µA | 2.5 mA | 60dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
L4993MDIC REG LINEAR 5V 150MA 20SO |
0 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 125 µA | 2 mA | 55dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 20-SO |
|
L4995JIC REG LIN 5V 500MA POWERSSO-12 |
0 |
|
Datasheet |
- | PowerSSO-12 | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-12 |
|
|
L4995AJIC REG LIN 5V 500MA POWERSSO-12 |
0 |
|
Datasheet |
- | PowerSSO-12 | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.5V @ 400mA | 500mA | 160 µA | 2.7 mA | 55dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PowerSSO-12 |
|
LX8213-00ISEIC REG LIN POS ADJ 300MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.2V | 5.5V | 0.3V @ 300mA | 300mA | 90 µA | - | 68dB ~ 54dB (100Hz ~ 10kHz) | Enable | Over Temperature, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

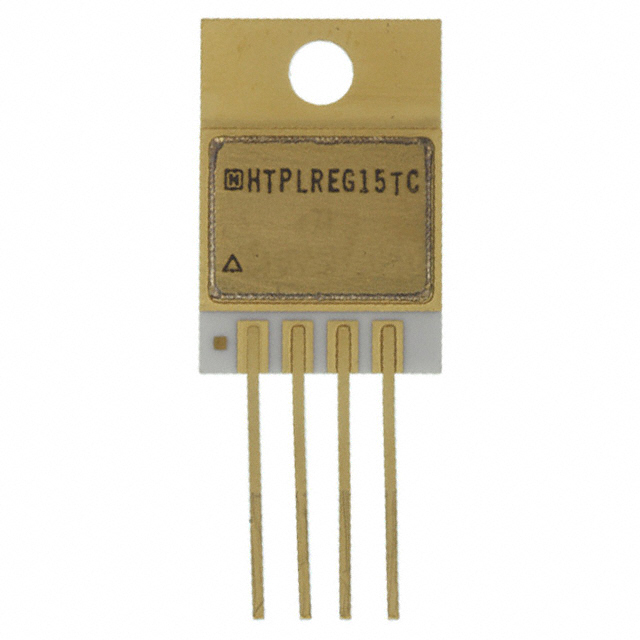

HTPLREG15TCIC REG LIN 15V 500MA 4PIN PWR |
0 |
|
Datasheet |
- | 4-SIP | Bulk | Active | Positive | Fixed | 1 | 28V | 15V | - | 3V @ 250mA | 500mA | 1.5 mA | - | 66dB (120Hz) | Enable | Short Circuit | -55°C ~ 225°C | - | - | Through Hole | Hermetic 4-Pin Power |
|
HTPLREG10TCIC REG LIN 10V 500MA 4PIN PWR |
0 |
|
Datasheet |
- | 4-SIP | Bulk | Active | Positive | Fixed | 1 | 28V | 10V | - | 3V @ 250mA | 500mA | 1.5 mA | - | 66dB (120Hz) | Enable | Short Circuit | -55°C ~ 225°C | - | - | Through Hole | Hermetic 4-Pin Power |
|
|
HTPLREG12TCIC REG LIN 12V 500MA 4PIN PWR |
0 |
|
Datasheet |
- | 4-SIP | Bulk | Active | Positive | Fixed | 1 | 28V | 12V | - | 3V @ 250mA | 500mA | 1.5 mA | - | 66dB (120Hz) | Enable | Short Circuit | -55°C ~ 225°C | - | - | Through Hole | Hermetic 4-Pin Power |
|
FAN2564UMP15XIC REG LINEAR 1.5V 300MA 6UMLP |
0 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.5V | - | 0.16V @ 300mA | 300mA | 75 µA | 200 µA | 60dB (1kHz) | Enable | Over Temperature, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UMLP (2x2) |
|
|
PQ1LA335MSPQIC REG LINEAR 3.3V 300MA SOT89 |
0 |
|
- |
- | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 0.7V @ 300mA | 300mA | 800 µA | - | 55dB (400Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89 |
|
MAX8840ELT45+TIC REG LINEAR 4.5V 150MA 6UDFN |
0 |
|
Datasheet |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 4.5V | - | 0.12V @ 120mA (Typ) | 150mA | 90 µA | - | 78dB ~ 54dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-µDFN (1.5x1) |
|
TA48015BF(T6L1,NQ)IC REG LINEAR 1.5V 1A PW-MOLD |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.5V | - | 1.9V @ 1A (Typ) | 1A | 1.7 mA | 20 mA | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PW-MOLD |
|
|
TA48018BF(T6L1,NQ)IC REG LINEAR 1.8V 1A PW-MOLD |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 1.6V @ 1A (Typ) | 1A | 1.7 mA | 20 mA | 66dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PW-MOLD |
|
|
TA48LS00F(TE85L,F)IC REG LINEAR POS ADJ 300MA PS8 |
0 |
|
- |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 14V | 1.5V | 5V | 0.6V @ 300mA | 300mA | 1.7 mA | 10 mA | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PS-8 (2.9x2.4) |
|
TCR5SB30A(T5L,F,T)IC REG LINEAR 3V 150MA SMV |
0 |
|
- |
TCR5SB | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3V | - | 0.19V @ 50mA | 150mA | 75 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
|
TCR5SB33A(T5L,F,T)IC REG LINEAR 3.3V 150MA SMV |
0 |
|
- |
TCR5SB | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.19V @ 50mA | 150mA | 75 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
