Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
__2.jpg)
|
LF80ABDT-TRIC REG LINEAR 8V 500MA DPAK |
8,643 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 8V | - | 0.7V @ 500mA | 500mA | 1.5 mA | 12 mA | 72dB ~ 57dB (120Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
LP2950CZ-5.0RAGIC REG LIN 5V 100MA TO226AA/TO92 |
1,179 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
,TO-226_straightlead.jpg)
|
S-812C36AY-B2-UIC REG LINEAR 3.6V 50MA TO92-3 |
384 |
|
Datasheet |
S-812C | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 16V | 3.6V | - | 0.35V @ 10mA | 50mA | 500 nA | 1.8 µA | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
TPS77015DBVTIC REG LINEAR 1.5V 50MA SOT23-5 |
447 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 1.5V | - | - | 50mA | 28 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS72218DBVRIC REG LINEAR 1.8V 50MA SOT23-5 |
1,380 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.1V @ 50mA | 50mA | 120 µA | 550 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
XC6902NA51PR-GIC REG LIN -10.5V 200MA SOT89-5 |
5,819 |
|
Datasheet |
- | SOT-89-5/6 | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -16V | -10.5V | - | - | 200mA | 350 µA | - | 45dB (1kHz) | - | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
NCV8623MN-50R2GIC REG LINEAR 5V 150MA 6DFN |
5,995 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 5V | - | 0.26V @ 150mA | 150mA | 200 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3) |
|
TLS810B1EJV50XUMA1IC REG LIN 5V 100MA 8DSO E-PAD |
3,471 |
|
Datasheet |
OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.55V @ 100mA | 100mA | 1 µA | 11 µA | 55dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
1820-6.jpg)
|
R1524K050B-TRIC REG LINEAR 5V 200MA DFN1820-6 |
2,692 |
|
Datasheet |
R1524x | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.6V @ 200mA | 200mA | 2.2 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -50°C ~ 125°C (TA) | - | - | Surface Mount | DFN(PL)1820-6 |
|
RT9186AGQVIC REG LIN POS ADJ 500MA 8VDFN |
720 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 4.5V | 0.22V @ 500mA | 500mA | 250 µA | - | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-VDFN (3x3) |
|
NCV8730BMTW1500TBGIC REG LINEAR 15V 150MA 6WDFNW |
8,815 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 38V | 15V | - | 0.48V @ 150mA | 150mA | 3 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|
RTQ2531WGQWIC REG LIN ADJ 500MA WDFN-8S |
6,647 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5.3V | 0.15V @ 500mA | 500mA | - | - | 63dB (100kHz), 60dB ~ 48dB (1kHz ~ 500kHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Reverse Current, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WDFN-SL (2x2) |
|
|
TLE4254EJSXUMA2IC REG LINEAR POS ADJ 70MA 8DSO |
5,833 |
|
Datasheet |
OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | Tracking | - | 0.4V @ 70mA | 70mA | 80 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
LM1117ILD-ADJ/NOPBIC REG LIN POS ADJ 800MA 8WSON |
4,766 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 15V | 1.25V | 13.8V | 1.2V @ 800mA | 800mA | 5 mA | 10 mA | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
|
NCV8730BMTWADJTBGIC REG LIN POS ADJ 150MA 6WDFNW |
4,518 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 38V | 1.2V | 24V | 0.48V @ 150mA | 150mA | 3 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|
|
TLE4254EJAXUMA2IC REG LIN POS ADJ 70MA 8DSO |
4,450 |
|
Datasheet |
OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 45V | Tracking | - | 0.4V @ 70mA | 70mA | 80 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-27 |
|

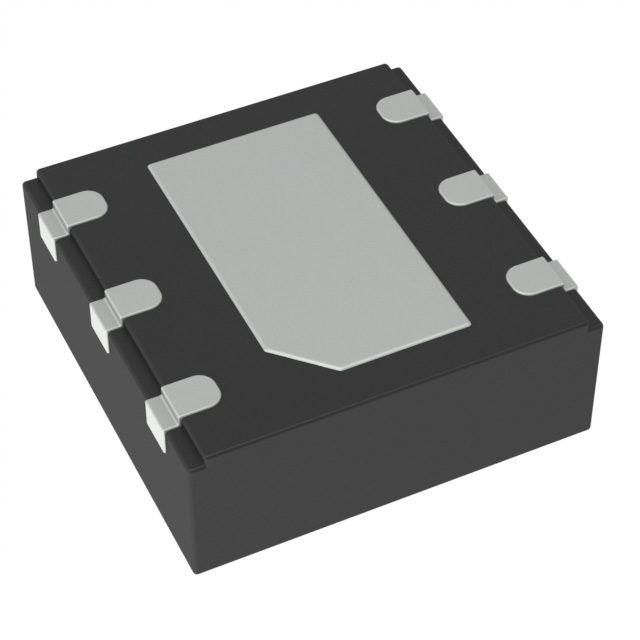

LD49100PU10RY1 A, LOW QUIESCENT CURRENT, LOW- |
2,846 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.4V @ 1A | 1A | 50 µA | 300 µA | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-DFN (3x3) |
|
NCV8560SN330T1GIC REG LINEAR 3.3V 150MA 5TSOP |
2,792 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | - | 150mA | 180 µA | - | 62dB ~ 38dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
MCP1722-5010H/Q8BIC DUAL LDO 5.0V/10VOUT VDFN |
220 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tube | Active | Positive | Fixed | 2 | 55V | 10V, 5V | - | 0.75V @ 50mA, 0.75V @ 100mA | 50mA, 100mA | 80 µA | - | 80dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-VDFN (3x3) |
|
TPS715A33DRBTIC REG LINEAR 3.3V 80MA 8SON |
10,818 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.3V | - | 1.12V @ 80mA | 80mA | 4.2 µA | 5.8 µA | 60dB (100kHz) | - | Over Current, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
