Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R1524N033B-TR-FEIC REG LINEAR 3.3V 200MA SOT23-5 |
18,914 |
|
Datasheet |
R1524x | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 2V @ 200mA | 200mA | 6.5 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
BU25JA3DG-CTR300MA 2.5V, CMOS LDO REGULATORSF |
5,999 |
|
Datasheet |
BUxxJA3DG-C | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.24V @ 300mA | 300mA | 80 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 5-SSOP |
|
BD33HC5WEFJ-E2IC REG LINEAR 3.3V 1.5A 8HTSOP |
4,972 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3.3V | - | 0.93V @ 1.5A | 1.5A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
TPS73130DBVTIC REG LINEAR 3V 150MA SOT23-5 |
3,904 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.1V @ 150mA | 150mA | 550 µA | 750 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
BD00HC0WEFJ-E2IC REG LINEAR POS ADJ 1A 8HTSOP |
3,599 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 8V | 0.8V | 7V | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
TPS73433DRVTIC REG LINEAR 3.3V 250MA 6WSON |
2,100 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.22V @ 250mA | 250mA | 65 µA | - | 60dB ~ 28dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
BU33JA3DG-CTR300MA 3.3V, CMOS LDO REGULATORSF |
1,318 |
|
Datasheet |
BUxxJA3DG-C | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.2V @ 300mA | 300mA | 80 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | 5-SSOP |
|
|
TPS73125DBVTIC REG LINEAR 2.5V 150MA SOT23-5 |
1,184 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.1V @ 150mA | 150mA | 550 µA | 750 µA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS73401DRVTIC REG LIN POS ADJ 250MA 6WSON |
908 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 1.25V | 6.2V | 0.22V @ 250mA | 250mA | 65 µA | - | 60dB ~ 28dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
R1511S001C-E2-FEIC REG LIN POS ADJ 300MA 6HSOP |
904 |
|
Datasheet |
R1511x | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 3V | 9V | 1.5V @ 300mA | 300mA | 180 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | 6-HSOP-J |
|
TC2117-3.3VEBTRIC REG LINEAR 3.3V 800MA 3DDPAK |
750 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 1.2V @ 800mA | 800mA | 130 µA | - | 55dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|
L4993DTRIC REG LINEAR 5V 150MA 8SO |
7,505 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 125 µA | 2 mA | 55dB (100Hz) | Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
L5150CJTRIC REG LIN 5V 150MA POWERSSO-12 |
7,277 |
|
Datasheet |
- | PowerSSO-12 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 150mA | 150mA | 80 µA | 4.2 mA | 48dB (100Hz) | Reset | Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | PowerSSO-12 |
|
TPS79201DBVRIC REG LIN POS ADJ 100MA SOT23-6 |
5,008 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.2V | 5.5V | - | 100mA | 250 µA | - | 70dB ~ 47dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|

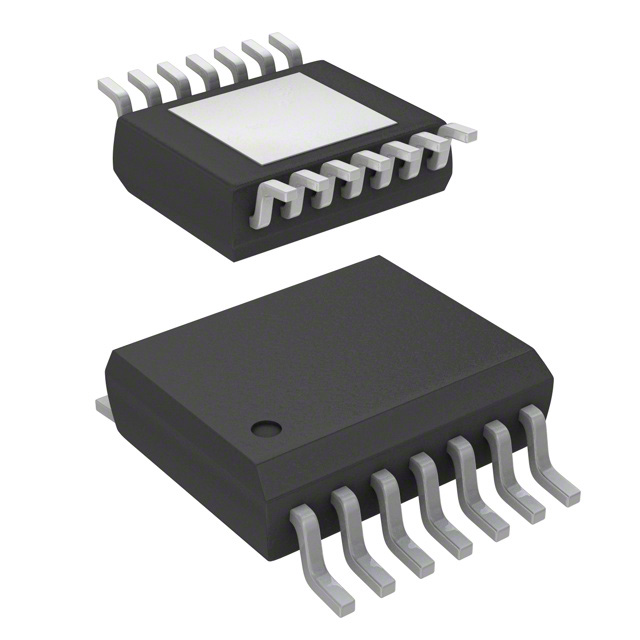

TLS835B2ELVSEXUMA1IC REG LIN POS PROG 350MA SSOP14 |
4,631 |
|
Datasheet |
OPTIREG™ | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Programmable | 1 | 40V | 3.3V, 5V | - | 0.60V @ 250mA, 0.5V @ 250mA | 350mA | 25 µA | - | 60dB (100Hz), 63db (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SSOP-14-5 |
|
TPS76618DRIC REG LINEAR 1.8V 250MA 8SOIC |
4,491 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 1.8V | - | - | 250mA | 50 µA | - | 63dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
LD49100PU18RYIC REG LINEAR 1.8V 1A 6DFN |
3,537 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.4V @ 1A | 1A | 50 µA | 300 µA | 65dB ~ 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-DFN (3x3) |
|
|
LD49100PU12RYIC REG LINEAR 1.2V 1A 6DFN |
2,743 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.4V @ 1A | 1A | 50 µA | 300 µA | 65dB ~ 62dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-DFN (3x3) |
|
LP38693MPX-5.0/NOPBIC REG LINEAR 5V 500MA SOT223-5 |
2,613 |
|
Datasheet |
- | TO-261-5, TO-261AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 5V | - | 0.45V @ 500mA | 500mA | 55 µA | 100 µA | 55dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
|
TPS79230DBVRIC REG LINEAR 3V 100MA SOT23-5 |
2,336 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.1V @ 100mA | 100mA | 250 µA | - | 70dB ~ 47dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
