Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ033Y053ZZHIC REG LINEAR 3.3V 5A SC63 |
0 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tube | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.5V @ 5A | 5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SC-63 |
|

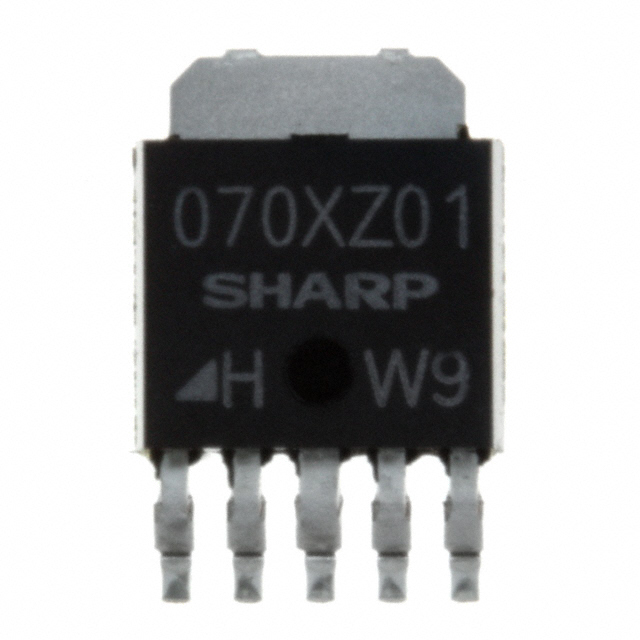

PQ070XZ01ZZHIC REG LINEAR POS ADJ 1A SC63 |
0 |
|
Datasheet |
* | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

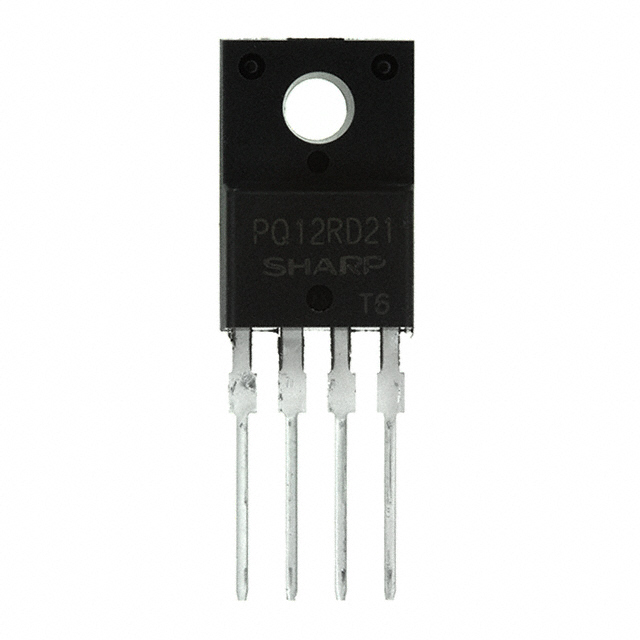

PQ12RD21J00HIC REG LINEAR 12V 2A TO220-4 |
0 |
|
Datasheet |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

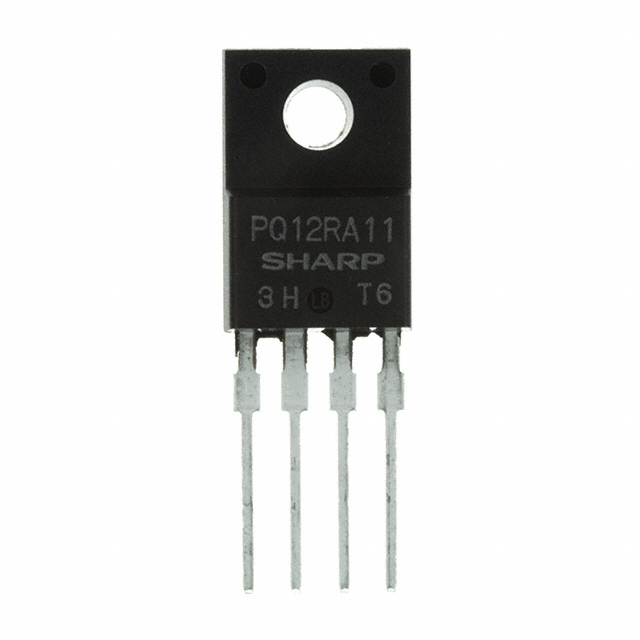

PQ12RA11J00HIC REG LINEAR 12V 1A TO220-4 |
0 |
|
- |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | - | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

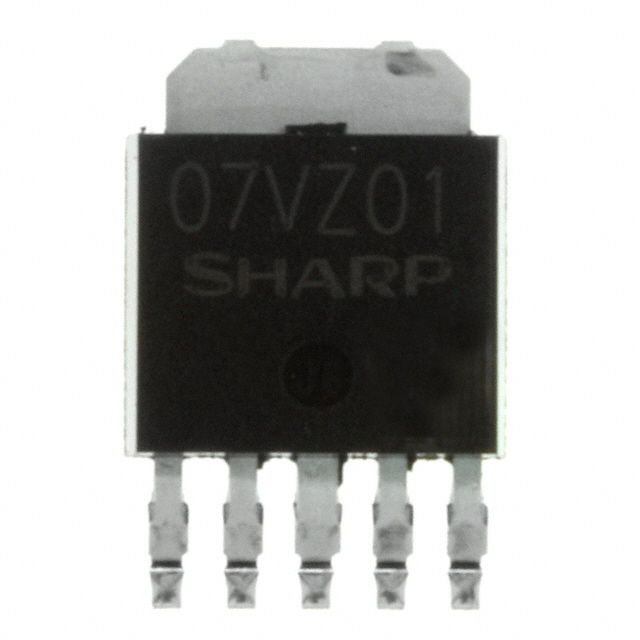

PQ07VZ012ZPHIC REG LINEAR POS ADJ 1A SC63 |
0 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 500mA | 1A | 7 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SC-63 |
|

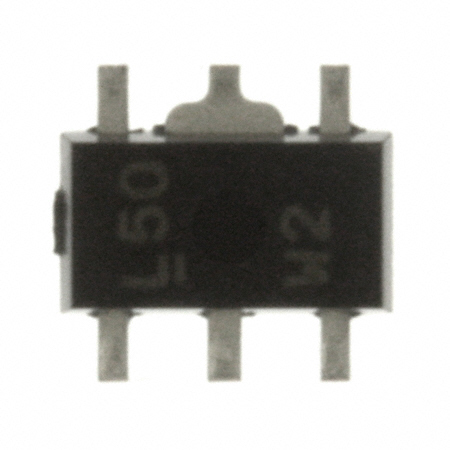

PQ1L503M2SPQIC REG LINEAR 5V 300MA SOT89 |
0 |
|
Datasheet |
- | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-89 |
|
PQ1K503M2ZPHIC REG LINEAR 5V 300MA SOT23L-6 |
0 |
|
Datasheet |
- | SOT-23L-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 5V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23L-6 |
|
|
PQ1K333M2ZPHIC REG LIN 3.3V 300MA SOT23L-6 |
0 |
|
Datasheet |
- | SOT-23L-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23L-6 |
|
|
PQ1K253M2ZPHIC REG LIN 2.5V 300MA SOT23L-6 |
0 |
|
Datasheet |
- | SOT-23L-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 2.5V | - | 0.7V @ 300mA | 300mA | 500 µA | - | - | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23L-6 |
|
|
PQ09RD11J00HIC REG LINEAR 9V 1A TO220-4 |
0 |
|
- |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 9V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

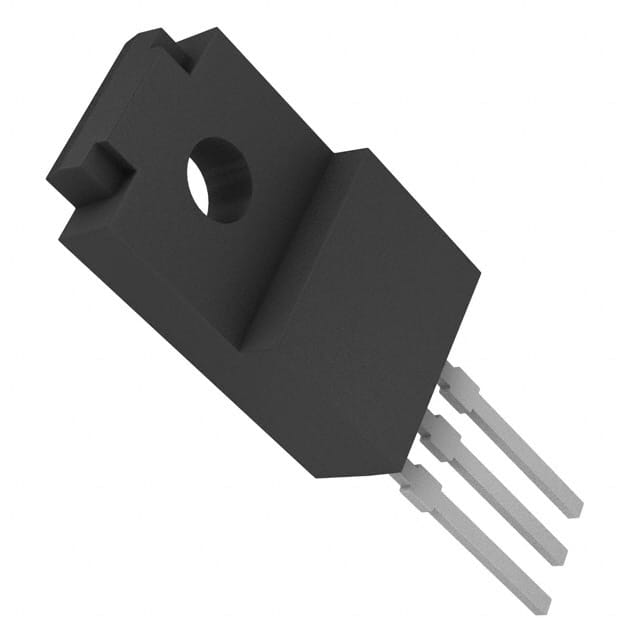

BA178M07TIC REG LINEAR 7V 500MA TO220FP |
0 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | Positive | Fixed | 1 | 22V | 7V | - | 2V @ 500mA (Typ) | 500mA | 4.5 mA | 6 mA | 71dB (120Hz) | - | - | -40°C ~ 85°C | - | - | Through Hole | TO-220FP |
|
LD29150PT18RIC REG LINEAR 1.8V 1.5A PPAK |
0 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 1.8V | - | 0.7V @ 1.5A | 1.5A | 180 µA | 80 mA | 72dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
LP3881EMR-1.2/NOPBIC REG LIN 1.2V 800MA 8SO PWRPAD |
0 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.19V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
|
LP3881EMR-1.5/NOPBIC REG LIN 1.5V 800MA 8SO PWRPAD |
0 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.19V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
,TO-226_straightlead.jpg)
|
NJM78L18L2AIC REG LINEAR 18V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Positive | Fixed | 1 | 40V | 18V | - | - | 100mA | 6.5 mA | - | 59dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-92-3 |
|
|
NJM78L09L2AIC REG LINEAR 9V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Positive | Fixed | 1 | 30V | 9V | - | - | 100mA | 6 mA | - | 65dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-92-3 |
|
|
NJM79L09L2AIC REG LINEAR -9V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Negative | Fixed | 1 | -30V | -9V | - | - | 100mA | 6 mA | - | 67dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-92-3 |
|
|
NJM79L12L2AIC REG LINEAR -12V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | - | 100mA | 6.5 mA | - | 64dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-92-3 |
|
MIC29150-3.3BTIC REG LINEAR 3.3V 1.5A TO220-3 |
0 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 26V | 3.3V | - | 0.6V @ 1.5A | 1.5A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
MIC29150-3.3BUIC REG LINEAR 3.3V 1.5A TO263-3 |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 26V | 3.3V | - | 0.6V @ 1.5A | 1.5A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
