Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NJM2845DL1-23-TE1IC REG LINEAR 2.3V 800MA TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 2.3V | - | 0.28V @ 500mA | 800mA | 600 µA | - | 75dB (1kHz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-252-3 |
|
|
NJM2845DL1-25-TE1IC REG LINEAR 2.5V 800MA TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 2.5V | - | 0.28V @ 500mA | 800mA | 600 µA | - | 75dB (1kHz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-252-3 |
|
|
NJM2845DL1-03-TE1IC REG LINEAR 3V 800MA TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 3V | - | 0.28V @ 500mA | 800mA | 600 µA | - | 75dB (1kHz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-252-3 |
|
PQ025Y3H3ZZHIC REG LINEAR 2.5V 3.5A SC63 |
0 |
|
- |
- | TO-252-6, DPAK (5 Leads + Tab) | Tube | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.5V @ 3.5A | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SC-63 |
|
|
PQ015YZ01ZZHIC REG LINEAR POS ADJ 1A SC63 |
0 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tube | Obsolete | Positive | Adjustable | 1 | 3.7V | 1V | 1.5V | - | 1A | - | - | 65dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | -25°C ~ 85°C | - | - | Surface Mount | SC-63 |
|
|
PQ015Y3H3ZZHIC REG LINEAR 1.5V 3.5A SC63 |
0 |
|
- |
- | TO-252-6, DPAK (5 Leads + Tab) | Tube | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | - | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Surface Mount | SC-63 |
|

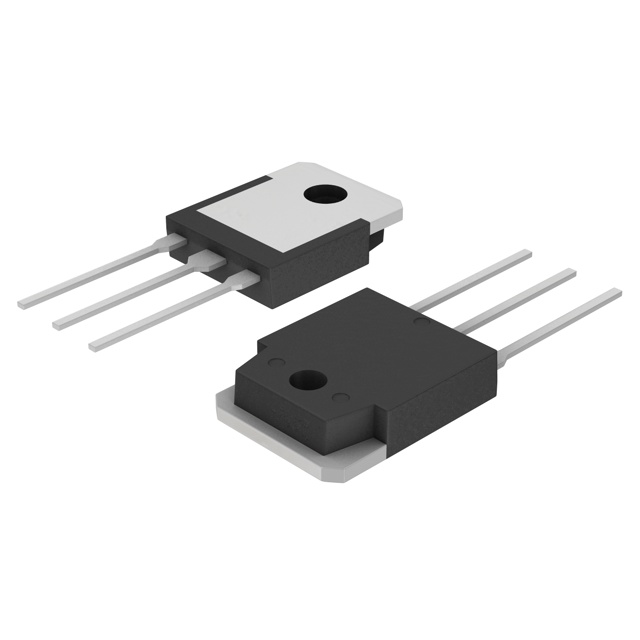

PQ7DV10BJ00HIC REG LINEAR POS ADJ 10A TO3P |
0 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 10A | 10A | - | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-3P |
|

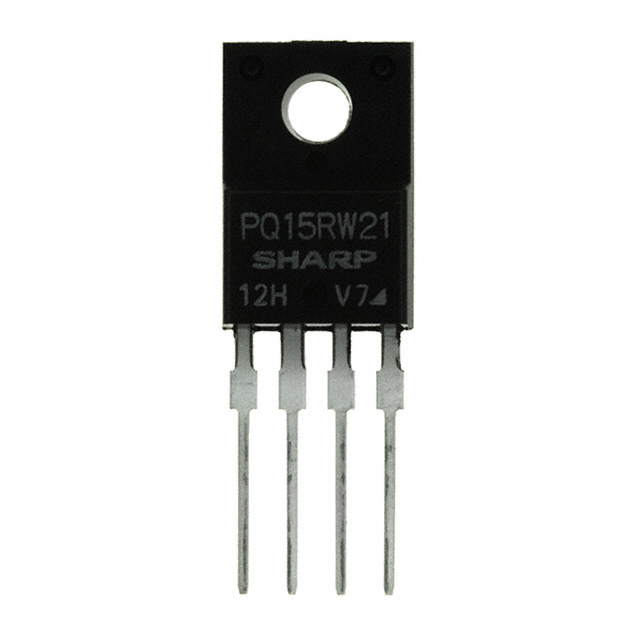

PQ15RW21J00HIC REG LINEAR POS ADJ 2A TO220-4 |
0 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 3V | 15V | 0.5V @ 2A | 2A | 8 mA | - | 55dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
|
PQ7DV10J000HIC REG LINEAR POS ADJ 10A TO3P |
0 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 10A | 10A | - | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-3P |
|

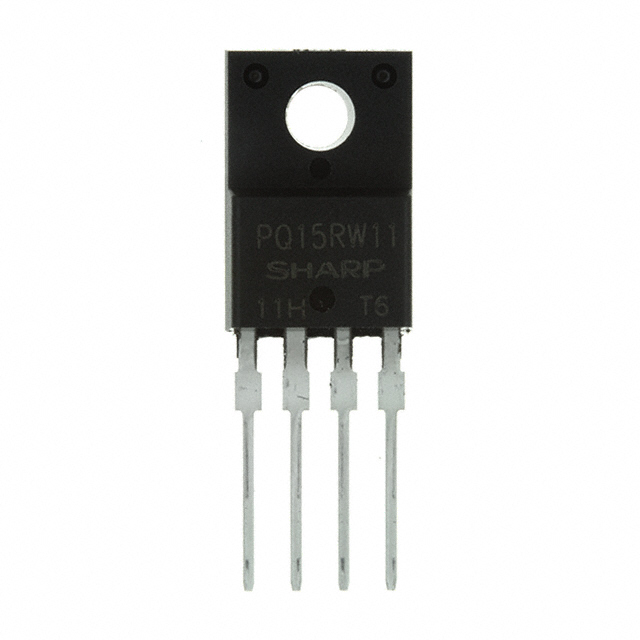

PQ15RW11J00HIC REG LINEAR POS ADJ 1A TO220-4 |
0 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 3V | 15V | 0.5A @ 500mA | 1A | 8 mA | - | 55dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
PQ20RX11J00HIC REG LINEAR POS ADJ 1A TO220-5 |
0 |
|
Datasheet |
- | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Adjustable | 1 | 24V | 3V | 20V | 0.5V @ 500mA | 1A | 8 mA | - | 45dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-5 |
|

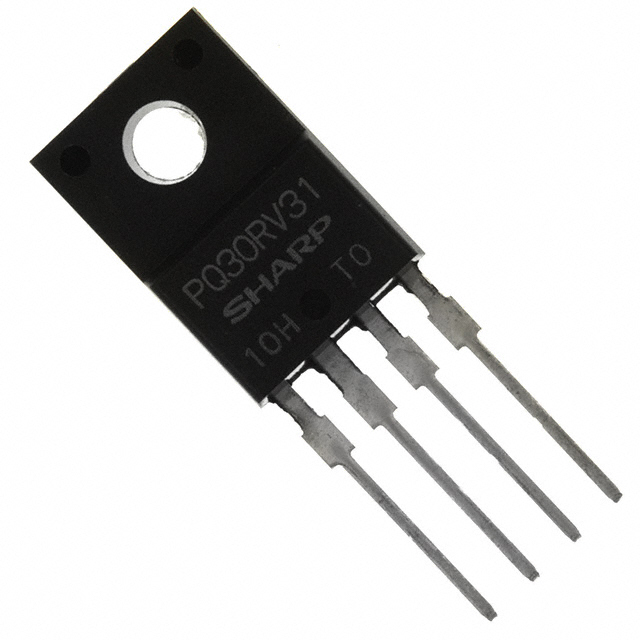

PQ30RV31J00HIC REG LINEAR POS ADJ 3A TO220-4 |
0 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Adjustable | 1 | 35V | 1.5V | 30V | 1V @ 3A | 3A | 7 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

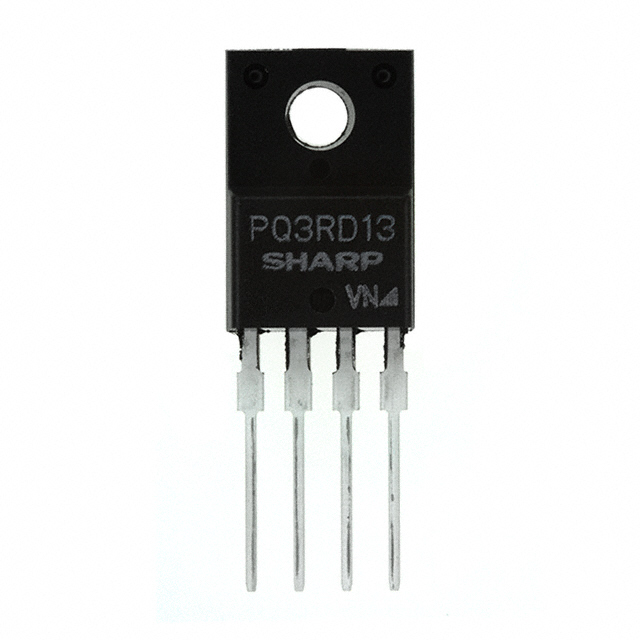

PQ3RD13J000HIC REG LINEAR 3.3V 1A TO220-4 |
0 |
|
- |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

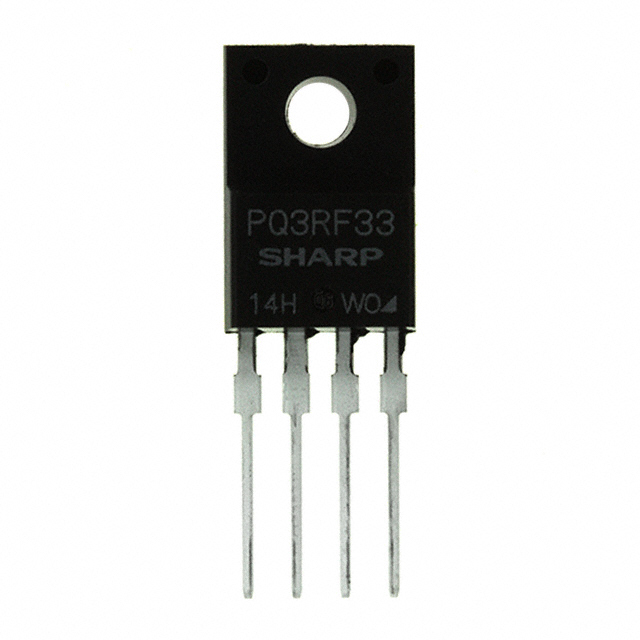

PQ3RF33J000HIC REG LINEAR 3.3V 3.5A TO220-4 |
0 |
|
- |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.5V @ 3A | 3.5A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
PQ5EV7J0000HIC REG LIN POS ADJ 7.5A TO220-5 |
0 |
|
Datasheet |
- | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Adjustable | 1 | 7V | 1.5V | 5V | 0.5V @ 7.5A | 7.5A | - | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-5 |
|

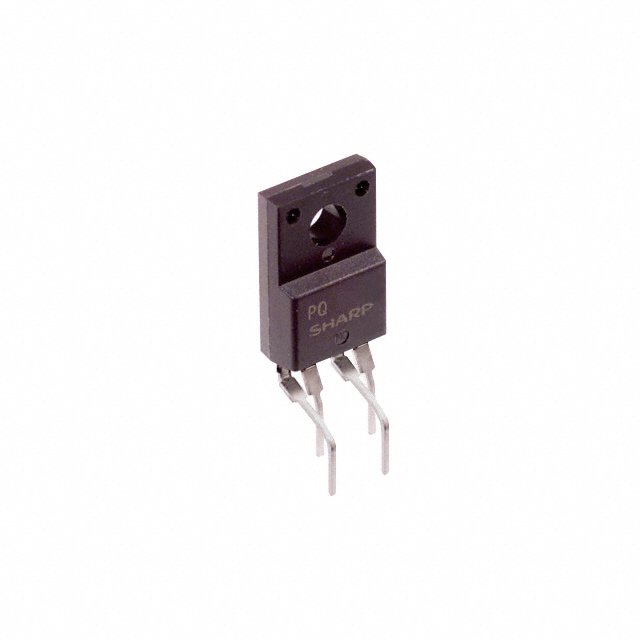

PQ12RD8SJ00HIC REG LINEAR 12V 800MA TO220-4 |
0 |
|
- |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 12V | 20V | - | 800mA | - | - | - | - | - | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

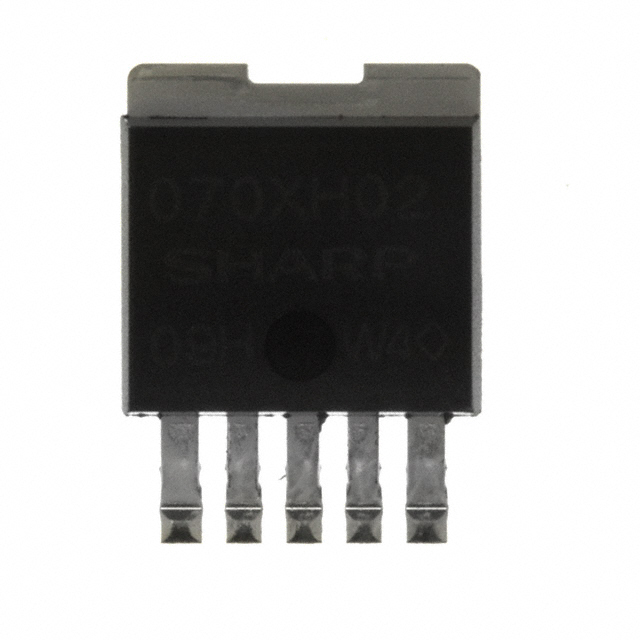

PQ070XH02ZZHIC REG LINEAR POS ADJ 2A TO263 |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 2A | 2A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TO-263 |
|
|
PQ070XH01ZZHIC REG LINEAR POS ADJ 1A TO263 |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 500mA | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TO-263 |
|

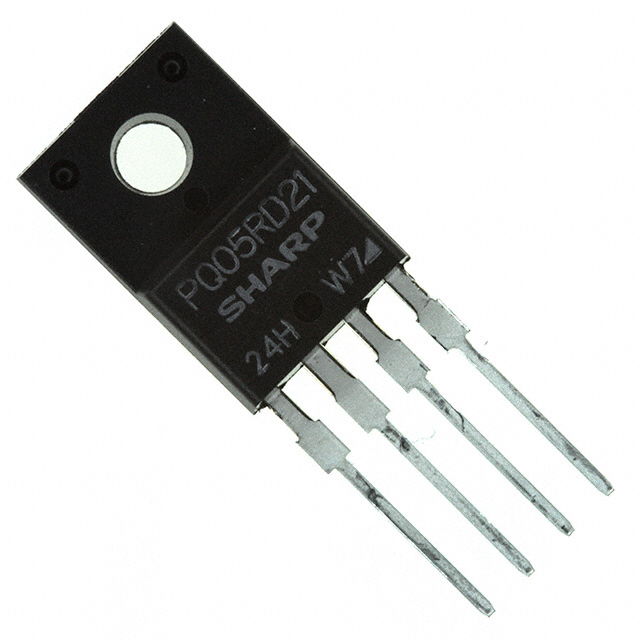

PQ05RD21J00HIC REG LINEAR 5V 2A TO220-4 |
0 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.5V @ 2A | 2A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|

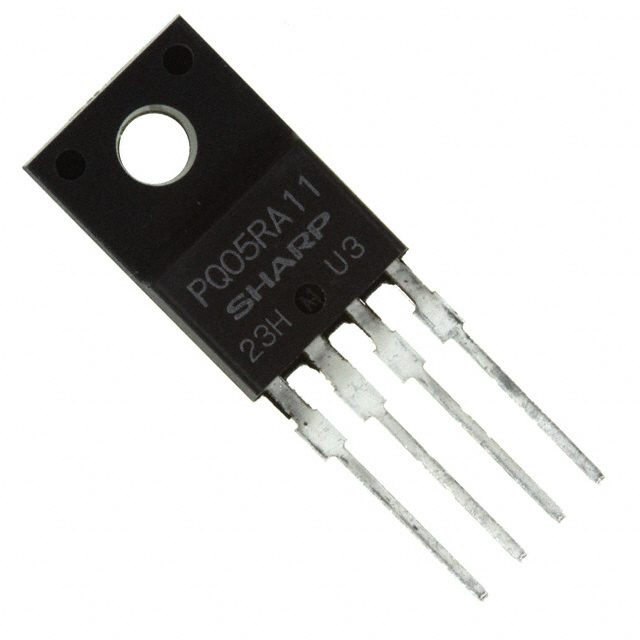

PQ05RA11J00HIC REG LINEAR 5V 1A TO220-4 |
0 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
