Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

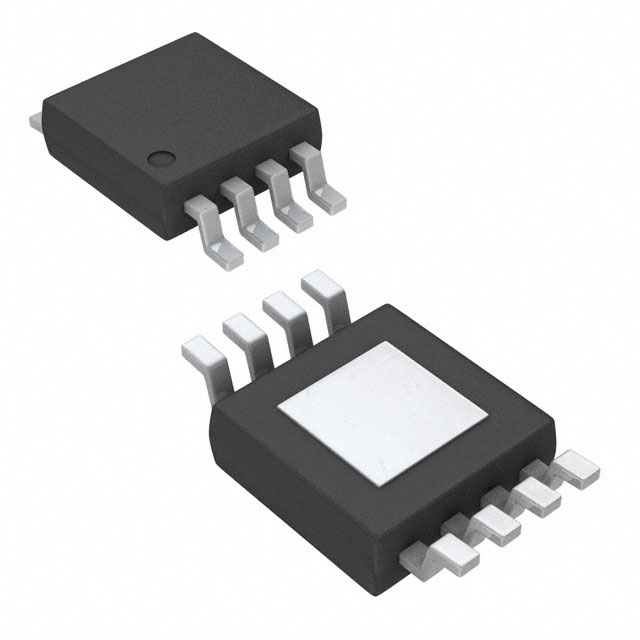

AP7583AQ-50MP-13LDO CMOS LOWCURR MSOP-8EP T&R 2. |
9,675 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | 5V | 0.5V @ 300mA | 300mA | 6 µA | - | 70dB (100Hz) | Current Limit, Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-MSOP-EP |
|
NCV5500DT33RKGIC REG LINEAR 3.3V 500MA DPAK-5 |
3,640 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120hZ ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
NCP5501DT50RKGIC REG LINEAR 5V 500MA DPAK |
2,256 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120hZ ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 85°C | - | - | Surface Mount | DPAK |
|
MC7915ACD2TGIC REG LINEAR -15V 1A D2PAK |
1,512 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
LD1086V33-DGIC REG LINEAR 3.3V 1.5A TO220AB |
848 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | 79dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
LD1086BV-DGIC REG LINEAR POS ADJ 1.5A TO220 |
842 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Positive | Adjustable | 1 | 30V | 1.25V | 28.5V | 1.5V @ 1.5A | 1.5A | 10 mA | - | 88dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
LM320T-15/NOPBIC REG LINEAR -15V 1.5A TO220-3 |
369 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -15V | - | - | 1.5A | 2 mA | - | 64dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
TLE4253EXUMA2IC REG LIN POS ADJ 250MA 8DSO |
13,678 |
|
Datasheet |
OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | Tracking | - | 0.6V @ 200mA | 250mA | 150 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-27 |
__2.jpg)
|
L4941BDT-TRIC REG LINEAR 5V 1A DPAK |
5,015 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.7V @ 1A | 1A | 8 mA | 40 mA | 68dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | DPAK |
|
|
MC7812BD2TR4GIC REG LINEAR 12V 1A D2PAK |
3,033 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 60dB (1kHz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC33269DT-3.3GIC REG LINEAR 3.3V 800MA DPAK |
1,367 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 1.35V @ 800mA | 800mA | 8 mA | - | 55dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
LD29150PTRIC REG LINEAR POS ADJ 1.5A PPAK |
66,814 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 14V | 1.23V | 13.3V | 0.7V @ 1.5A | 1.5A | 180 µA | 80 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | PPAK |
|
NCP730BMT1500TBGIC REG LINEAR 15V 150MA 6WDFN |
10,926 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 38V | 15V | - | 0.48V @ 150mA | 150mA | 3 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
TPS7B8450QDCYRQ1IC REG LINEAR 5V 150MA SOT223-4 |
9,500 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.255V @ 150mA | 150mA | 25 µA | 35 µA | 70dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223-4 |
|
MP2002AGD-ZIC REG LDO 500MA 8QFN |
4,827 |
|
Datasheet |
- | 8-TFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.5V | 5V | 0.29V @ 500mA (Typ) | 500mA | - | - | - | Enable, Power Good | Over Current, Over Temperature | 125°C (TJ) | - | - | Surface Mount | 8-QFN (2x3) |
|
NJW4105DL5-05A-TE1HIGH VOLTAGE IO=500MA LDO REGULA |
1,891 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.7V @ 500mA | 500mA | 105 µA | - | 53dB (1kHz) | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C | - | - | Surface Mount | TO-252-5 |
|
MIC5219-3.3YMM-TRIC REG LINEAR 3.3V 500MA 8MSOP |
19,719 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
NCP730ASN300T1GIC REG LINEAR 3V 150MA 5TSOP |
8,758 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 38V | 3V | - | 0.48V @ 150mA | 150mA | 2.5 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 5-TSOP |
|
TPS74701QDRCRQ1IC REG LIN POS ADJ 500MA 10VSON |
8,182 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 1.39V @ 500mA | 500mA | - | - | 60dB ~ 30dB (1kHz ~ 300kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 10-VSON (3x3) |
|
|
MIC5219-5.0YMM-TRIC REG LINEAR 5V 500MA 8MSOP |
5,291 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 5V | - | 0.6V @ 500mA | 500mA | 8 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
