Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP711BMTADJTBGIC REG LIN POS ADJ 100MA 6WDFN |
4,974 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 18V | 1.2V | 17V | 0.355V @ 100mA | 100mA | 3 µA | - | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
MC7912BD2TR4GIC REG LINEAR -12V 1A D2PAK |
4,264 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -12V | - | 1.3V @ 1A (Typ) | 1A | - | - | 61dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
NJM2846DL3-18-TE1IC REG LINEAR 1.8V 800MA TO252-5 |
2,642 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 1.8V | - | - | 800mA | 600 µA | - | 75dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-252-5 |
|
TPS7B8450QWDRBRQ1AUTOMOTIVE 150-MA, 40-V, LOW-DRO |
18,846 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.225V @ 150mA | 150mA | 26 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
TPS7B8433QWDRBRQ1AUTOMOTIVE 150-MA, 40-V, LOW-DRO |
7,499 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.225V @ 150mA | 150mA | 26 µA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
NCV8705MWADJTCGIC REG LINEAR POS ADJ 500MA 8DFN |
5,635 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5.5V | 0.35V @ 500mA | 500mA | 25 µA | - | 73dB ~ 56dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-DFN (3x3) |
|
BD00HC5WEFJ-E2IC REG LIN POS ADJ 1.5A 8HTSOP |
3,598 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 8V | 1.5V | 7V | 0.93V @ 1.5A | 1.5A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
|
NCV8705MW30TCGIC REG LINEAR 3V 500MA 8DFN |
498 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | - | 500mA | 25 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-DFN (3x3) |
|
MC7915ACTGIC REG LINEAR -15V 1A TO220AB |
459 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.3V @ 1A (Typ) | 1A | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|

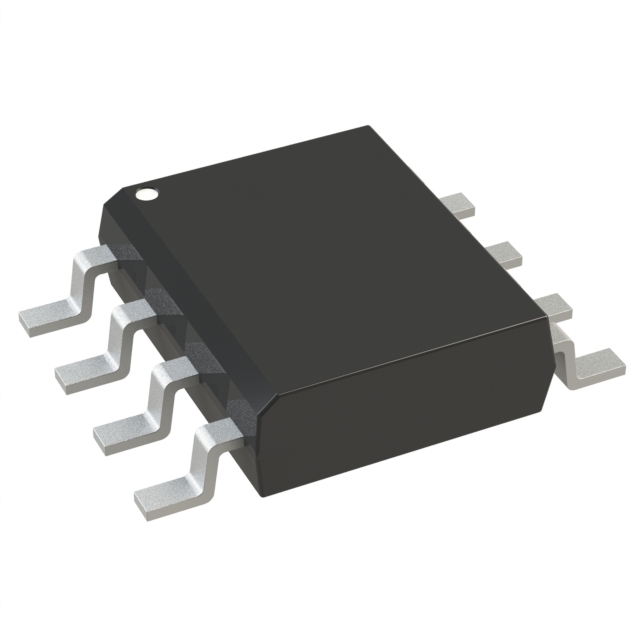

XC6230A001QR-GMULTIFUNCTION 2A HIGH SPEED LDO |
137 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.2V | 5V | 0.52V @ 2A | 2A | 83 µA | - | 70dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Current | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOP-8FD |
|
|
MC7812ACD2TR4GIC REG LINEAR 12V 1A D2PAK |
12,027 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1A | 6 mA | - | 60dB (1kHz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
MC33275DT-3.3RKGIC REG LINEAR 3.3V 300MA DPAK |
3,493 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13V | 3.3V | - | 0.5V @ 300mA | 300mA | 200 µA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
BD00GC0WEFJ-E2IC REG LINEAR POS ADJ 1A 8HTSOP |
2,835 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 14V | 1.5V | 13V | 0.92V @ 1A | 1A | 0.6 mA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | - | - | Surface Mount | 8-HTSOP-J |
|
TPS72118DBVTIC REG LINEAR 1.8V 150MA SOT23-5 |
2,391 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.24V @ 150mA | 150mA | 120 µA | 850 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
MC7905ACD2TR4GIC REG LINEAR -5V 1A D2PAK |
2,304 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -5V | - | 1.3V @ 1A (Typ) | 1A | - | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
|
MC7912ACTGIC REG LINEAR -12V 1A TO220AB |
1,510 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -12V | - | 1.3V @ 1A (Typ) | 1A | - | - | 61dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|

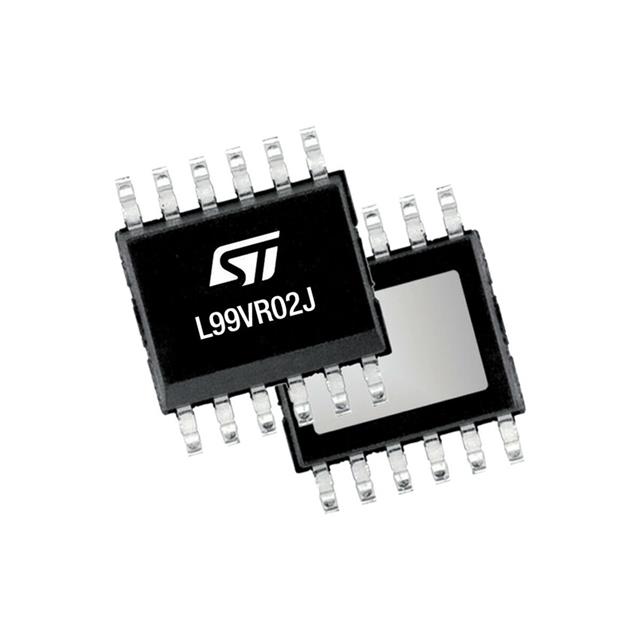

L99VR02JAUTOMOTIVE LINEAR VOLTAGE REGULA |
859 |
|
Datasheet |
- | 12-LSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Programmable | 1 | 28V | 0.8V | 5V | 0.5V @ 500mA | 500mA | 130 µA | 2.5 mA | 75dB (1kHz) | Current Limit, Enable, Reset Output, Watchdog | Over Current, Over Temperature, Over Voltage, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 175°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PowerSSO-12 |
|
LM2941T/LF03IC REG LINEAR POS ADJ 1A TO220-5 |
766 |
|
Datasheet |
- | TO-220-5 Formed Leads | Tube | Active | Positive | Adjustable | 1 | 26V | 5V | 20V | 1V @ 1A | 1A | 10 mA | 15 mA | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
,TO-226_straightlead.jpg)
|
TL750L12CLPIC REG LINEAR 12V 150MA TO92-3 |
1,242 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 26V | 12V | - | 0.6V @ 150mA | 150mA | 2 mA | 12 mA | 65dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
TPS7A2601DRVTIC REG LIN POS ADJ 500MA 6WSON |
16,477 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 18V | 1.24V | 17.4V | 0.355V @ 500mA | 500mA | 4.5 µA | - | 75dB ~ 52dB (10Hz ~ 1kHz) | Enable, Power Good | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
