Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

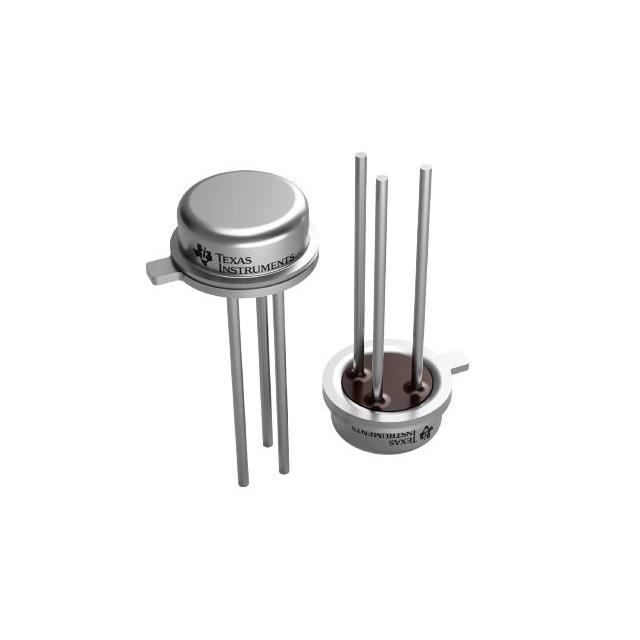

LM136AH-5.0/883IC VREF SHUNT 5V TO46-3 |
0 |
|
Datasheet |
TO-206AB, TO-46-3 Metal Can | - | Bulk | Active | Shunt | Fixed | 5V | - | 10 mA | ±1% | - | - | - | - | - | 600 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-46-3 |
|
|
LM136-2.5 MD8IC VREF SHUNT 2.5V DIE |
0 |
|
Datasheet |
Die | - | Tube | Active | Shunt | Fixed | 2.5V | - | 10 mA | ±1% | 20ppm/°C | - | - | - | - | 400 µA | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
LM185BYH2.5-QVIC VREF SHUNT 2.5V TO46-2 |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Tray | Active | Shunt | Fixed | 2.5V | - | 20 mA | - | 50ppm/°C | - | - | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
LM185-2.5 MD8IC VREF SHUNT 2.5V DIE |
0 |
|
Datasheet |
Die | - | Tube | Active | Shunt | Fixed | 2.5V | - | 20 mA | - | - | - | - | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
LM185BYH2.5/883IC VREF SHUNT 2.5V TO46-2 |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Tray | Active | Shunt | Fixed | 2.5V | - | 20 mA | - | 50ppm/°C | - | 120µVrms | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
LM136AH-5.0/883/MPGDIC VREF SHUNT 5V TO46-3 |
0 |
|
Datasheet |
TO-206AB, TO-46-3 Metal Can | LM136-5.0 | Bulk | Active | Shunt | Adjustable | 4V | 6 V | 10 mA | - | - | - | - | - | - | - | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-46-3 |
|
|
LM136AH-2.5/883/MPGDIC VREF SHUNT 2.49V TO46-3 |
0 |
|
Datasheet |
TO-206AB, TO-46-3 Metal Can | - | Bulk | Active | Shunt | Fixed | 2.49V | - | 10 mA | ±1% | - | - | - | - | - | 400 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-46-3 |
|
LM4040CEM3-2.5/E7001881IC VREF SHUNT 2.5V SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±0.5% | 100ppm/°C | - | 35µVrms | - | - | 68 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|

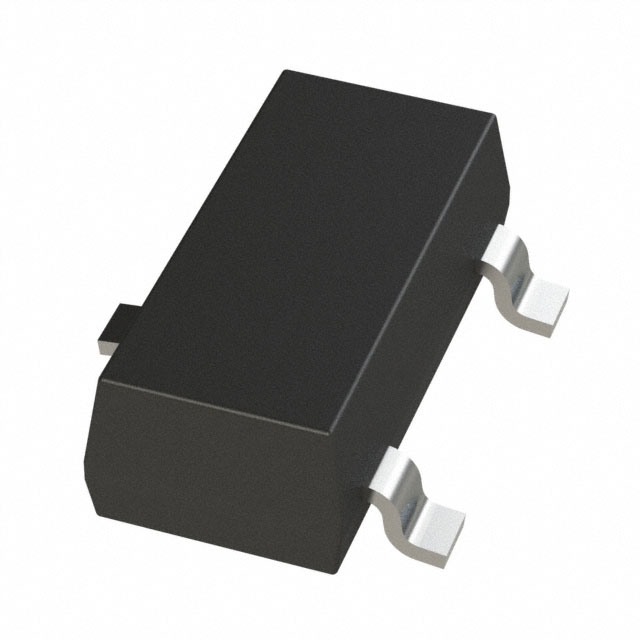

ATL431EAIDBZRIC VREF SHUNT 2.5V SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 48ppm/°C | - | - | - | - | 35 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM185BWG/883IC VREF SHUNT 1.24V 10CFP |
0 |
|
Datasheet |
10-CSOIC (0.241", 6.12mm Width) | - | Tray | Active | Shunt | Adjustable | 1.24V | 5.3 V | 20 mA | ±1% | 50ppm/°C | - | - | - | 50µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-CFP |
|
|
LM4040CEM3X-5.0/ELDB2169IC VREF SHUNT 5V SOT23-3 |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Shunt | Fixed | 5V | - | 15 mA | ±0.5% | 100ppm/°C | - | 80µVrms | - | - | 83 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
LM185-1.2-MD8IC VREF SHUNT 1.2V DIE |
0 |
|
Datasheet |
Die | - | Tube | Active | Shunt | Fixed | 1.2V | - | 30 mA | ±1% | 150ppm/°C | - | 60µVrms | - | - | 20 µA | -55°C ~ 125°C | - | - | Surface Mount | Die |
|
|
LM185H-2.5/883IC VREF SHUNT 2.5V TO46-2 |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Tray | Active | Shunt | Fixed | 2.5V | - | 20 mA | - | 150ppm/°C | - | - | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
LM285IDRMO-1-2IC VREF SHUNT 1% |
0 |
|
- |
- | - | Bulk | Obsolete | Shunt | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LM4040DEM3-2.5/S4000169IC VREF SHUNT 2.5V SOT23-3 |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Shunt | Fixed | 2.5V | - | 15 mA | ±1% | 150ppm/°C | - | 35µVrms | - | - | 73 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
LM4050AEM3-5.0/S7002735IC VREF SHUNT 0.1% SOT23-3 |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Shunt | - | 5V | - | - | ±0.1% | - | - | - | - | - | - | - | - | - | - | SOT-23-3 |
|
|
ATL432EAQDBZRIC VREF SHUNT 2.5V SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 92ppm/°C | - | - | - | - | 80 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4041DIM3X-1.2/E7002631IC VREF SHUNT 1.225V SOT23-3 |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Shunt | Fixed | 1.225V | - | 12 mA | ±1% | 150ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
8418002XAIC VREF SHUNT 5V TO46-3 |
0 |
|
Datasheet |
TO-206AB, TO-46-3 Metal Can | - | Bulk | Active | Shunt | Fixed | 5V | - | 10 mA | ±1% | - | - | - | - | - | 600 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-46-3 |
|
|
LM185H-1.2-SMDIC VREF SHUNT 1.2V TO46-2 |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Tray | Active | Shunt | Fixed | 1.2V | - | 20 mA | ±1% | 150ppm/°C | - | - | 1.2V | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
