Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_bentlead.jpg)
|
TL431ALP-BPIC VREF SHUNT ADJ TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Programmable | 2.5V | 36 V | 100 mA | - | - | - | - | 2.475V ~ 37V | - | 1 mA | 0°C ~ 70°C | - | - | Through Hole | TO-92 |
|
|
TL431BLP-BPIC VREF SHUNT ADJ 0.5% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Programmable | 2.5V | 36 V | 100 mA | ±0.5% | - | - | - | 2.4875V ~ 37V | - | 1 mA | 0°C ~ 70°C | - | - | Through Hole | TO-92 |
|

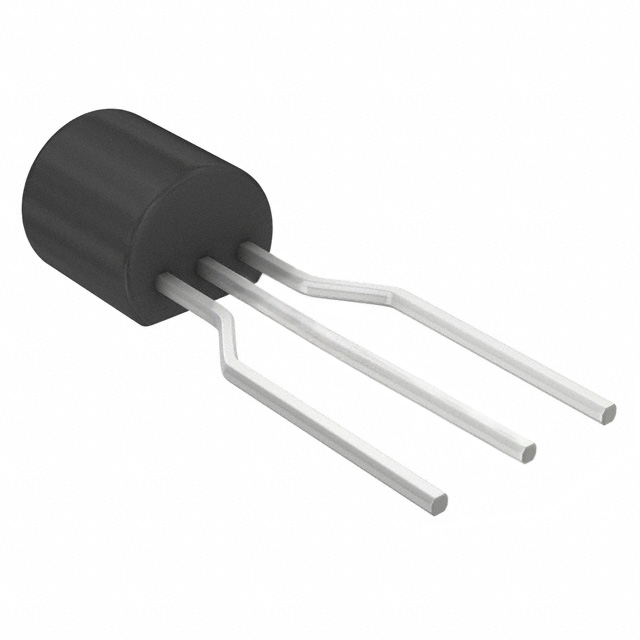

TL431LP-APIC VREF SHUNT 36V TO92 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Programmable | 2.5V | 36 V | 100 mA | - | - | - | - | 2.44V ~ 37V | - | 1 mA | 0°C ~ 70°C (TJ) | - | - | Through Hole | TO-92 |
|
|
TL431LP-BPIC VREF SHUNT 36V TO92 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Programmable | 2.5V | 36 V | 100 mA | - | - | - | - | 2.44V ~ 37V | - | 1 mA | 0°C ~ 70°C (TJ) | - | - | Through Hole | TO-92 |
|
|
TL431KLP-BPIC VREF SHUNT 36V TO92 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Programmable | 2.5V | 36 V | 100 mA | - | - | - | - | 2.482V ~ 37V | - | 1 mA | -40°C ~ 85°C (TJ) | - | - | Through Hole | TO-92 |
|
|
TL431BLP-APIC VREF SHUNT ADJ 0.5% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Programmable | 2.5V | 36 V | 100 mA | ±0.5% | - | - | - | 2.4875V ~ 37V | - | 1 mA | 0°C ~ 70°C | - | - | Through Hole | TO-92 |
|
|
TL431KLP-APIC VREF SHUNT 36V TO92 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Programmable | 2.5V | 36 V | 100 mA | - | - | - | - | 2.482V ~ 37V | - | 1 mA | -40°C ~ 85°C (TJ) | - | - | Through Hole | TO-92 |
|
|
TL431ALP-APIC VREF SHUNT ADJ TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Programmable | 2.5V | 36 V | 100 mA | - | - | - | - | 2.475V ~ 37V | - | 1 mA | 0°C ~ 70°C | - | - | Through Hole | TO-92 |
|
SG3503MIC VREF SERIES 1% 8DIP |
0 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 10ppm/°C | - | - | 4.5V ~ 40V | 2mA | - | 0°C ~ 70°C (TA) | Military | MIL-STD-883 | Through Hole | 8-PDIP |
|

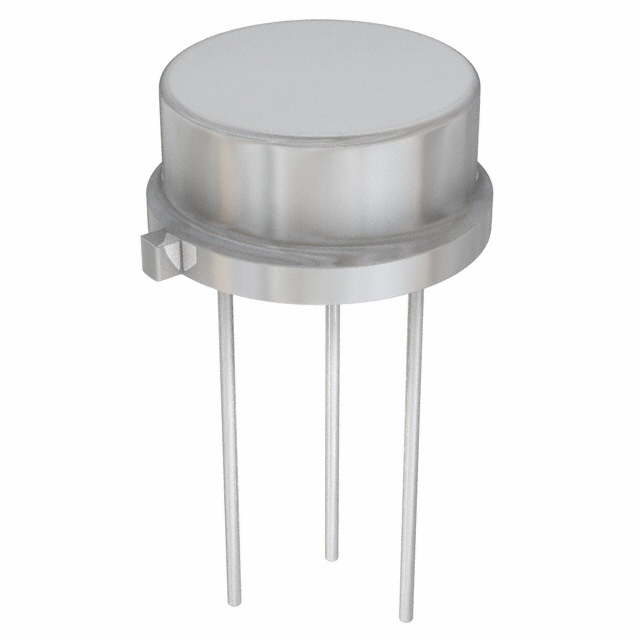

SG1503TIC VREF SERIES 1% TO39 |
0 |
|
Datasheet |
TO-205AD, TO-39-3 Metal Can | - | Tray | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 10ppm/°C | - | - | 4.5V ~ 40V | 2mA | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG3503DM-TRIC VREF SERIES 1% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 10ppm/°C | - | - | 4.5V ~ 40V | 2mA | - | 0°C ~ 70°C (TA) | Military | MIL-STD-883 | Surface Mount | 8-SOIC |
|
|
SG3503DMIC VREF SERIES 1% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 10ppm/°C | - | - | 4.5V ~ 40V | 2mA | - | 0°C ~ 70°C (TA) | Military | MIL-STD-883 | Surface Mount | 8-SOIC |
|
SG1503YIC VREF SERIES 1% 8CERDIP |
0 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | - | Tray | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 10ppm/°C | - | - | 4.5V ~ 40V | 2mA | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | 8-CERDIP |
|
|
SG1503Y-883BIC VREF SERIES 1% 8CERDIP |
0 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | - | Tray | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 10ppm/°C | - | - | 4.5V ~ 40V | 2mA | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | 8-CERDIP |
|
|
SG1503T-DESCIC VREF SERIES 1% TO39 |
0 |
|
Datasheet |
TO-205AD, TO-39-3 Metal Can | - | Tray | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 10ppm/°C | - | - | 4.5V ~ 40V | 2mA | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG1503Y-DESCIC VREF SERIES 1% 8CERDIP |
0 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | - | Tray | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 10ppm/°C | - | - | 4.5V ~ 40V | 2mA | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | 8-CERDIP |
|
MAX6150ESA-TVOLTAGE REFERENCE |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Series | Fixed | 5V | - | 1 mA | ±1% | 50ppm/°C | 35µVp-p | 900µVp-p | 5.2V ~ 12.6V | 145µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LM4040AEX3-5.0PRECISION MICROPOWER SHUNT VREF |
0 |
|
Datasheet |
SC-70, SOT-323 | - | Bulk | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.1% | 100ppm/°C | - | 80µVrms | - | - | 80 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-3 |
|
MAX6037AAUK12-TLOW-POWER, FIXED REFERENCE |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Bulk | Active | Series | Fixed | 1.25V | - | 5 mA | ±0.2% | 25ppm/°C | 6µVp-p | 15µVrms | 2.5V ~ 5.5V | 275µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MCP1501T-18E/CHYVAOIC VREF SERIES 1.8V SOT23-6 |
0 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.8V | - | 20 mA | ±0.1% | 50ppm/°C | - | - | 2V ~ 5.5V | 550µA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-6 |
