Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX6241ACPA+IC VREF SERIES 0.02% 8DIP |
33 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series, Buried Zener | Fixed | 4.096V | - | 15 mA | ±0.02% | 2ppm/°C | 2.4µVp-p | 2µVrms | 8V ~ 36V | 3.2mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
UC117L/80730ANALG VOLT REF & OTHER |
87 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AD588SEVOLTAGE REFERENCE, 2 OUTPUT, 10V |
20 |
|
Datasheet |
20-CLCC | - | Bulk | Obsolete | Series, Buried Zener | Programmable | - | - | 10 mA | - | 6ppm/°C | - | - | 36V | 10mA | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Surface Mount | 20-CLCC (9x9) |
|
|
AD2702UDB+/-10VPRECISION REFERENCE SERIES |
6 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | - | Bulk | Active | Series | Fixed | ±10V | - | 10 mA | ±0.05% | 3ppm/°C | 50µVp-p | - | ±13V ~ 18V | 17mA | - | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | 14-BBDIP-H |
|
8503003YCVREF, THIN FILM (AD2702SD) |
6 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | - | Bulk | Active | Series | Fixed | 10V | - | 5 mA | - | - | 150µVp-p | - | 13.5V ~ 16.5V | 17mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
|
AD2701JDPRECISION 10V REFERENCE SERIES |
24 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | AD2701 | Bulk | Active | Series | Fixed | -10V | - | 10 mA | ±0.05% | 10ppm/°C | 50µVp-p | - | ±13V ~ 18V | 14mA | - | -25°C ~ 85°C | - | - | Through Hole | 14-CERDIP |
|
AD580UHIC VREF SERIES 0.4% TO52-3 |
9 |
|
Datasheet |
TO-206AC, TO-52-3 Metal Can | - | Bulk | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.4% | 10ppm/°C | 8µVp-p | - | 4.5V ~ 30V | 1.5mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-52-3 |
|
AD2702JDIC VREF SERIES PREC +-10V 14CDIP |
4 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 14-CERDIP |
|
|
AD2701SDPRECISION 10V REFERENCE SERIES |
9 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | AD2701 | Bulk | Active | Series | Fixed | -10V | - | 10 mA | ±0.05% | 3ppm/°C | 50µVp-p | - | ±13V ~ 18V | 14mA | - | -55°C ~ 125°C | - | - | Through Hole | 14-CERDIP |
|
|
VRE210MAIC VREF SERIES 0.01% 20CLCC |
2 |
|
Datasheet |
20-LCC | - | Tube | Discontinued at Digi-Key | Series | Fixed | 10V | - | 10 mA | ±0.01% | 1ppm/°C Typical | 6µVp-p | - | 13.5V ~ 22V | 7mA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-CLCC |
|
|
LM185H-1.2-QVTWO TERMINAL VOLTAGE REFERENCE, |
6 |
|
Datasheet |
TO-46-2 Metal Can | - | Bulk | Active | Shunt | Fixed | 1.2V | - | 20 mA | ±1% | 50ppm/°C | - | - | - | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-46-2, Metal Can |
|
AD2702SD/883BIC VREF SERIES 14CDIP |
0 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | - | Bulk | Obsolete | Series | Fixed | ±10V | - | 10 mA | - | 5ppm/°C | 50µVp-p | - | 13V ~ 18V | 17mA | - | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | 14-CERDIP |
|
5962-8958101PAIC VREF SERIES 0.3% 8CERDIP |
0 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | - | Tube | Active | Series | Fixed | 10V | - | 10 mA | ±0.3% | 8.5ppm/°C | 30µVp-p | - | 12V ~ 36V | 1.4mA | - | -55°C ~ 125°C | - | - | Through Hole | 8-CERDIP |
|
|
UPC1093T-1-E2-AIC VREF SHUNT 2.495V TO243AA |
0 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 150 mA | ±2% | 100ppm/°C | - | - | - | - | 1 mA | -20°C ~ 85°C (TA) | - | - | Surface Mount | 3-Power minimold |
|
|
UPC1093T-E1-AIC VREF SHUNT 2.495V TO243AA |
0 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 150 mA | ±2% | 100ppm/°C | - | - | - | - | 1 mA | -20°C ~ 85°C (TA) | - | - | Surface Mount | 3-Power minimold |
|
|
UPC1944T-E1-AIC VREF SHUNT 1.26V TO243AA |
0 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.26V | 24 V | 30 mA | ±2.4% | - | - | - | - | - | 1 mA | -30°C ~ 85°C (TA) | - | - | Surface Mount | 3-Power minimold |
|
|
UPC1943T-E2-AIC VREF SHUNT 1.26V TO243AA |
0 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.26V | 24 V | 30 mA | ±2.4% | - | - | - | - | - | 1 mA | -30°C ~ 85°C (TA) | - | - | Surface Mount | 3-Power minimold |
|
|
UPC1944T-E2-AIC VREF SHUNT 1.26V TO243AA |
0 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.26V | 24 V | 30 mA | ±2.4% | - | - | - | - | - | 1 mA | -30°C ~ 85°C (TA) | - | - | Surface Mount | 3-Power minimold |
|

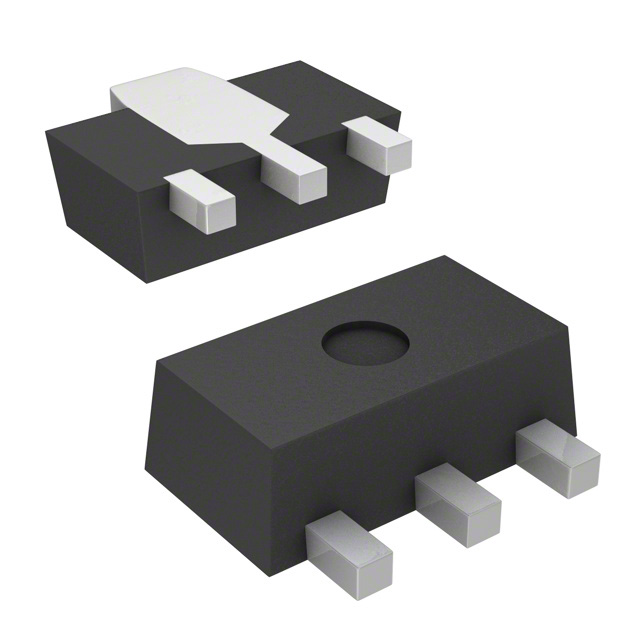

UPC1093T-E2-AIC VREF SHUNT 2.495V TO243AA |
0 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 150 mA | ±2% | 100ppm/°C | - | - | - | - | 1 mA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89 |
|
|
UPC1943T-E1-AIC VREF SHUNT 1.26V TO243AA |
0 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.26V | 24 V | 30 mA | ±2.4% | - | - | - | - | - | 1 mA | -30°C ~ 85°C (TA) | - | - | Surface Mount | 3-Power minimold |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
