Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4050AEX3-3.3/V+50PPM/C PRECISION MICROPOWER SHU |
0 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3.3V | - | 15 mA | ±0.1% | 50ppm/°C | - | 50µVrms | - | - | 67 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-70-3 |
|
LM4050QCEM3-4.1/NOPBIC VREF SHUNT 0.5% SOT23-3 |
44 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.096V | - | 15 mA | ±0.5% | 50ppm/°C | - | 93µVrms | - | - | 78 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
TLE2426MDIC VREF GND REF ADJ 1% 8SOIC |
63 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Ground Reference (Virtual) | Adjustable | 2V | 20 V | 20 mA | ±1% | 35ppm/°C Typical | - | 120µVrms | 4V ~ 40V | 400µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
ISL21010CFH320Z-T7AIC VREF SERIES 0.2% SOT23-3 |
53 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 25 mA | ±0.2% | 50ppm/°C | 58µVp-p | 26µVrms | 2.2V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
MAX6241BCSAIC VREF SERIES 0.1% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series, Buried Zener | Fixed | 4.096V | - | 15 mA | ±0.1% | 5ppm/°C | 2.4µVp-p | 2µVrms | 8V ~ 36V | 3.2mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MAX6070BAUT33+LOW-NOISE, HIGH-PRECISION SERIES |
0 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 10 mA | ±0.08% | 8ppm/°C | 10µVp-p | 6µVrms | 3.5V ~ 5.5V | 330µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
ISL60002DAH333Z-T7AIC VREF SERIES 0.15% SOT23-3 |
39 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 20 mA | ±0.15% | 20ppm/°C | 30µVp-p | - | 3.5V ~ 5.5V | 700nA | - | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
ISL60002DIH325Z-T7AIC VREF SERIES 0.2% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 7 mA | ±0.2% | 20ppm/°C | 30µVp-p | - | 2.7V ~ 5.5V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
MX580JESAMX580 +2.5V REFERENCE |
71 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Fixed | 2.5V | - | - | ±0.4% | 10ppm/°C | 60µVp-p | - | 4.5V ~ 30V | 1.5mA | - | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
AD680AR-REEL7IC VREF SERIES PREC 2.5V 8-SOIC |
92 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-SOIC |
|
ISL21060BFH620Z-TKIC VREF SERIES 0.05% SOT23-6 |
67 |
|
Datasheet |
SOT-23-6 | FGA™ | Bulk | Obsolete | Series | Fixed | 2.048V | - | 10 mA | ±0.05% | 10ppm/°C | 10µVp-p | 2.5µVrms | 2.5V ~ 5.5V | 40µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-SOT |
|
|
UC39431DIC VREF SHUNT ADJ 0.39% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 1.3V | 36 V | 100 mA | ±0.39% | - | - | - | - | - | 800 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
UC39431NIC VREF SHUNT ADJ 0.39% 8DIP |
50 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Bulk | Active | Shunt | Adjustable | 1.3V | 36 V | 100 mA | ±0.39% | - | - | - | - | - | 800 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
ISL21007DFB825Z-TKIC VREF SERIES 0.16% 8SOIC |
73 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 5 mA | ±0.16% | 10ppm/°C | 4.5µVp-p | - | 2.7V ~ 5.5V | 150µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ISL21007CFB830ZIC VREF SERIES 0.08% 8SOIC |
40 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tube | Obsolete | Series | Fixed | 3V | - | 7 mA | ±0.08% | 5ppm/°C | 4.5µVp-p | - | 3.2V ~ 5.5V | 150µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|

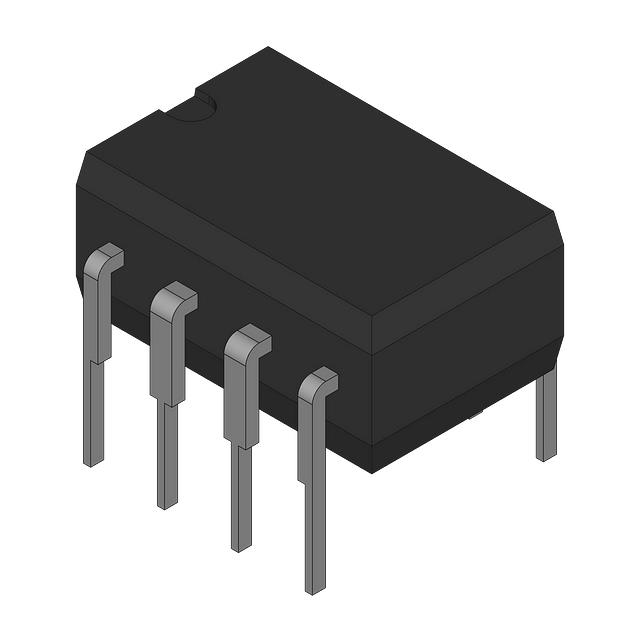

LT1460BIN8-5#PBFLT1460 - MICROPOWER PRECISION RE |
75 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Bulk | Obsolete | Series | Fixed | 5V | - | 40 mA | ±0.1% | 10ppm/°C | 20µVp-p | 20µVrms | 30V | 225µA | - | -40°C ~ 85°C | - | - | Through Hole | 8-PDIP |
|
TLE2425MJGBPRECISION VIRTUAL GROUND |
53 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | - | Bulk | Active | Ground Reference (Virtual) | Fixed | 2.5V | - | 20 mA | ±0.8% | 20ppm/°C Typical | - | 100µVrms | 4V ~ 40V | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CDIP |
|
|
MAX6175BASA+TIC VREF SERIES 0.1% 8SOIC |
17 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 30 mA | ±0.1% | 10ppm/°C | 9µVp-p | 14.5µVrms | 7V ~ 40V | 700µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
REF02EJIC PREC VOLT REFERENCE 5V TO99-8 |
88 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-99-8 |
|
AD41897AD580-UHM VOLTAGE REF. IC |
17 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
