Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

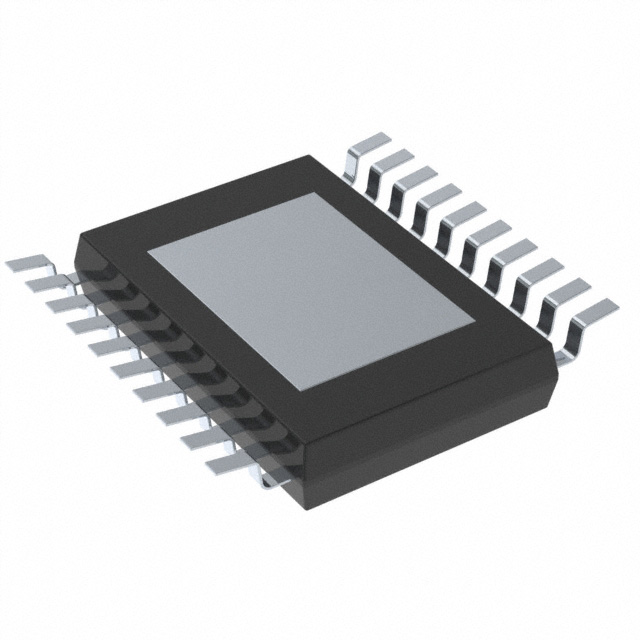

IPS4260LTRIC PWR SWTCH P-CHAN 1:1 20HTSSOP |
2,989 |
|
Datasheet |
20-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | Low Side | N-Channel | On/Off | 7V ~ 50V | Not Required | 2A | 280mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-HTSSOP |
|
MIC2042-1YTSIC PWR SWITCH N-CHAN 1:1 14TSSOP |
101 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | - | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | 1.6V ~ 5.5V | 3A | 40mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
TPS12110AQDGXRQ1AUTOMOTIVE 3.5-V TO 40-V HIGH-SI |
3,886 |
|
Datasheet |
20-TFSOP (0.118", 3.00mm Width), 19 Leads | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | - | 3.5V ~ 40V | 4A | - | Differential | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Battery, Reverse Current, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 19-VSSOP |
|
VNB14NV04TR-EIC PWR DRIVER N-CHAN 1:1 D2PAK |
1,771 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET II™, VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 12A | 35mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
IPS160HTRIC PWR SWTCH P-CHAN 1:1 PWRSSO12 |
5,637 |
|
Datasheet |
12-PowerLSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 8V ~ 60V | Not Required | 2.5A | 60mOhm | Non-Inverting | - | Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PowerSSO-12 |
|
|
NCV84120DR2GSELF PROTECTED VERY LOW IQ HIGH |
2,676 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 1 | 1:1 | High Side | N-Channel | Logic | 4V ~ 28V | 4V ~ 28V | 9A | 120mOhm | Non-Inverting | Auto Restart | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
TPS12111LQDGXRQ1AUTOMOTIVE 3.5-V TO 40-V HIGH-SI |
4,433 |
|
Datasheet |
20-TFSOP (0.118", 3.00mm Width), 19 Leads | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | - | 3.5V ~ 40V | 4A | - | Differential | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Battery, Reverse Current, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 19-VSSOP |
|
BTS50202EKAXUMA2IC PWR SWITCH N-CHAN 1:1 DSO-14 |
18,313 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 18V | Not Required | 5A | 40mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-14-40-EP |
|
|
BTG7003A1EPWXUMA1IC PWR SWITCH N-CHAN 1:1 14TSSOP |
4,168 |
|
Datasheet |
14-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET™ Wire Guard | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | Logic | 4.1V ~ 28V | 4.1V ~ 28V | 15.7A | 3.6mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Battery, Short Circuit, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-14-22 |
|
MAX14714EWL+TIC PWR PATH SELECTOR 1:2 15WLP |
2,725 |
|
Datasheet |
15-WFBGA, WLBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 2:1 | High Side | - | On/Off | - | 1.6V ~ 5.5V | 6A | 11mOhm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-WLP (1.22x2.05) |
|
TPS27SA08CQPWPRQ1AUTOMOTIVE, 36-V, 8-M, 1-CH SMAR |
1,702 |
|
Datasheet |
16-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 36V | Not Required | 10A | 9mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|

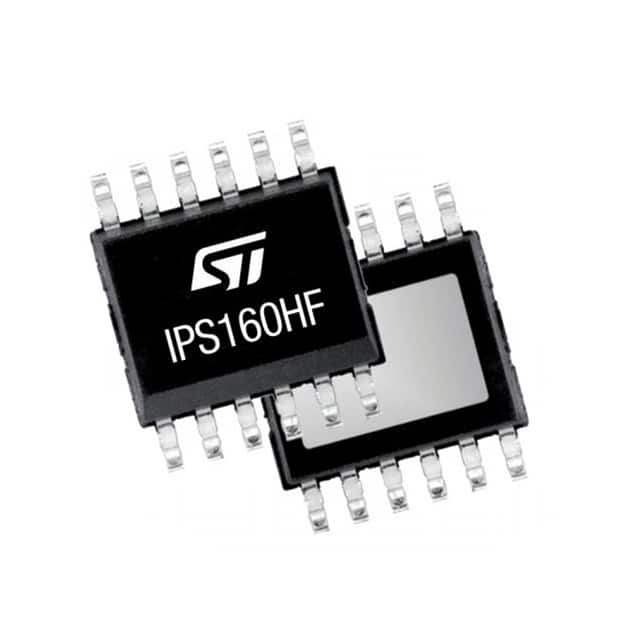

IPS160HFTRSINGLE CHANNEL HIGH-SIDE SWITCHE |
6,746 |
|
Datasheet |
12-LSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | - | 8V ~ 60V | Not Required | 2.4A | 60mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12 |
|

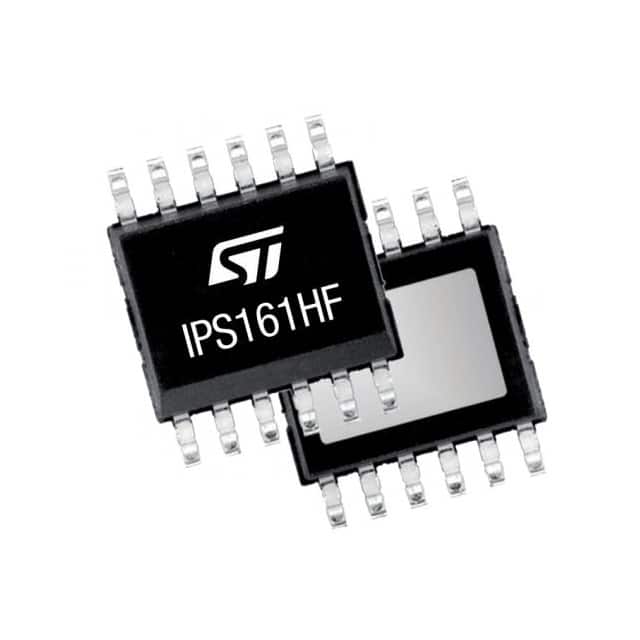

IPS161HFTRSINGLE CHANNEL HIGH-SIDE SWITCHE |
4,328 |
|
Datasheet |
12-LSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | - | 8V ~ 60V | Not Required | 600mA | 60mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12 |
|
TPS2042ADIC PWR SWITCH N-CHAN 1:2 8SOIC |
387 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | 0°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
HS2950P.M29V 5A LOAD PROTECTION HOTSWITCH |
593 |
|
Datasheet |
12-UFDFN Exposed Pad | HotSwitch® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 29V | Not Required | 5A | 25mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|
VN820B5TR-EIC PWR DRIVER N-CHAN 1:1 P2PAK |
1,043 |
|
Datasheet |
P2PAK (4 Leads + Tab) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 9A | 40mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | P2PAK |
|
VNQ7050AJTRIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
7,000 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | Parallel | 4V ~ 28V | Not Required | 21A | 50mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
VN5012AKTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
508 |
|
Datasheet |
24-PowerBSOP (0.295", 7.50mm Width) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 36V | Not Required | 45A | 12mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
TPS2550DBVTIC PWR SWITCH N-CHAN 1:1 SOT23-6 |
32 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 6.5V | Not Required | 1.1A | 85mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
TPS2551DRVTIC PWR SWITCH N-CHAN 1:1 6WSON |
134 |
|
Datasheet |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 6.5V | Not Required | 1.1A | 100mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
