Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RT9742GGJ5IC PWR SWTCH N-CHAN 1:1 TSOT23-5 |
5,966 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 6V | Not Required | 1A | 70mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
BD1HC500EFJ-CE2IC PWR SWITCH P-CHAN 1:1 8HTSOP |
3,111 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | - | - | 4V ~ 18V | 2A | 500mOhm | CMOS | - | Over Current, Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
VND7140AJTRIC PWR DRVR N-CHAN 1:1 PWRSSO16 |
6,868 |
|
Datasheet |
16-PowerLFSOP (0.154", 3.90mm Width) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 8A | 140mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
TPS1HTC100QPWPRQ1Automotive, 60V, 3.5A, 30mohm |
937 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 60V | Not Required | 4A | 83mOhm | Non-Inverting | Latch Function, Load Discharge, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Battery, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 14-HTSSOP |
|
DPS1133FIA-13IC PWR SWITCH 1:1 V-QFN4040-17 |
6,690 |
|
Datasheet |
17-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | - | On/Off | 4.5V ~ 24V | Not Required | 3.5A | 30mOhm | Non-Inverting | Load Discharge | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | - | - | - | Surface Mount | V-QFN4040-17 |
|
TBD62384AFWG,ELIC PWR DRIVER N-CHAN 1:1 18SOP |
749 |
|
Datasheet |
18-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | Low Side | N-Channel | On/Off | 0V ~ 50V | 4.5V ~ 5.5V | 400mA | 1.5Ohm | Inverting | - | - | -40°C ~ 85°C | - | - | Surface Mount | 18-SOP |
|
|
MP5017AGD-Z3V TO 5.5V, 1A TO 5A CURRENT LIM |
1,168 |
|
Datasheet |
12-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High/Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 5A | 45mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-QFN (2x3) |
|
TBD62503AFG,ELIC PWR SWITCH N-CHAN 1:1 16SOP |
14,964 |
|
Datasheet |
16-SOIC (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 7 | 1:1 | Low Side | N-Channel | On/Off | 50V (Max) | Not Required | 300mA | - | Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOP |
|
|
TPS281C100ADNTR6-V TO 60-V, 100-M, 4.5-A SINGLE |
7,011 |
|
Datasheet |
12-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off, PWM | 6V ~ 60V | 6V ~ 60V | 5A | 83mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-WSON (4x4) |
|

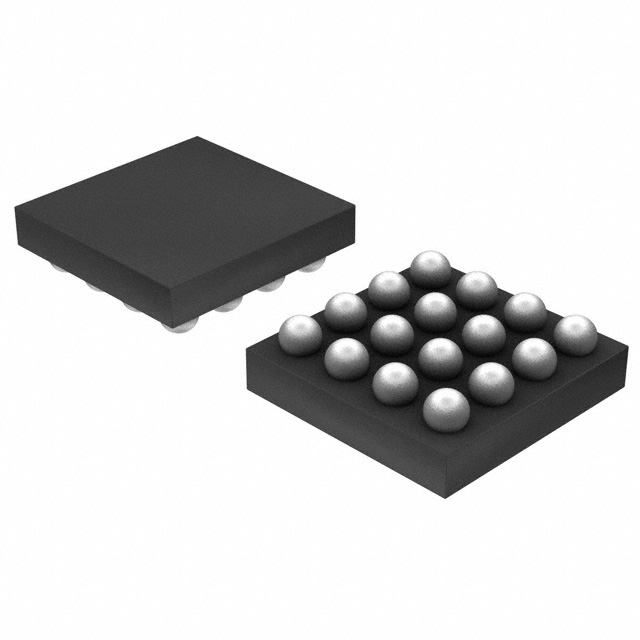

TCK323G,LFIC PWR SWITCH N-CHAN 2:1 16WCSP |
16,606 |
|
Datasheet |
16-UFBGA, CSPBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 2:1 | High Side | N-Channel | On/Off | 2.3V ~ 36V | Not Required | 2A | 98mOhm | - | Slew Rate Controlled, Status Flag | Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WCSPC (1.9x1.9) |
|
BTS70202EPAXUMA1IC PWR SWTCH N-CHAN 1:1 TSDSO-14 |
9,405 |
|
Datasheet |
14-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 5A | 12.7mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-14-22 |
|
ADP198ACBZ-11-R7IC PWR SWITCH P-CHAN 1:1 4WLCSP |
3,931 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.65V ~ 6.5V | Not Required | 1A | 40mOhm | Non-Inverting | Slew Rate Controlled | Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.95x1.03) |
|
TBD62781APGIC PWR DRIVER P-CHAN 1:1 18DIP |
3,487 |
|
Datasheet |
18-DIP (0.300", 7.62mm) | - | Tube | Active | General Purpose | 8 | 1:1 | High Side | P-Channel | On/Off | 50V (Max) | Not Required | 400mA | 1.6Ohm | Non-Inverting | - | - | -40°C ~ 85°C | - | - | Through Hole | 18-DIP |
|
|
BV1HB045EFJ-CE2BUILT-IN CURRENT SENSING FUNCTIO |
3,031 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | 6V ~ 28V | 21A | 45mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Short Circuit, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
ADP198ACBZ-R7IC PWR SWITCH P-CHAN 1:1 4WLCSP |
2,757 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.65V ~ 6.5V | Not Required | 1A | 40mOhm | Non-Inverting | Slew Rate Controlled | Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.95x1.03) |
|
ADP195ACPZ-R7IC PWR SWITCH P-CHAN 1:1 6LFCSP |
447 |
|
Datasheet |
6-UDFN Exposed Pad, CSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 1.1A | 50mOhm | Non-Inverting | Slew Rate Controlled | Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
VNS3NV04PTR-EIC PWR DRIVER N-CHANNEL 1:1 8SO |
4,879 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | OMNIFET II™, VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 3.5A | 120mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
TPS2HB16FQPWPRQ1HYDRA 16 MOHM OTP F |
7,911 |
|
Datasheet |
16-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 28V | Not Required | 60A | 16mOhm | - | - | Current Limiting (Adjustable), Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|
VN5E050JTR-EIC PWR SWTCH N-CHAN 1:1 PWRSSO12 |
5,528 |
|
Datasheet |
PowerSSO-12 | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 19A | 50mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
|
|
DPS1133FIAQ-13PD SWITCH V-QFN4040-17 T&R 4K |
1,427 |
|
Datasheet |
17-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 0V ~ 24V | 4.5V ~ 24V | 3.5A | 30mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | V-QFN4040-17 |
