Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP2311M8G-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
0 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
AP2401ASN-7IC PWR SWITCH P-CHAN 1:1 6UDFN |
0 |
|
Datasheet |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
AP2141AS-13IC PWR SWITCH P-CHANNEL 1:1 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 95mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
|
AP2301M8G-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
0 |
|
- |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
ULN2003VAS16-13IC INTEGRATED CIRCUIT |
0 |
|
- |
16-SOIC (0.154", 3.90mm Width) | ULx200xA | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 7 | 1:1 | Low Side | Darlington | Parallel | 20V (Max) | Not Required | 700mA | - | Inverting | - | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
AP2141AW-7IC PWR SWITCH P-CHAN 1:1 SOT25 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 95mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
AP2401B14KTR-E1IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
AP2401B14KTR-G1IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|

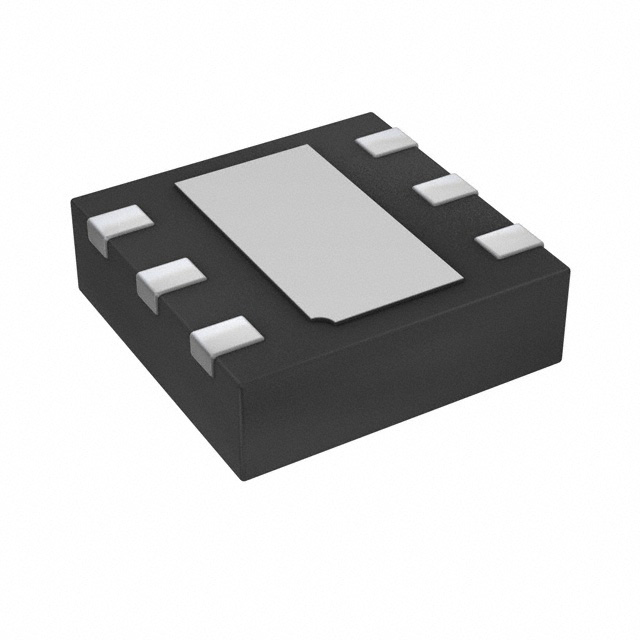

AP2401B34DNTR-G1IC PWR SWITCH P-CHAN 1:1 6UDFN |
0 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2018-6 |
|
AP2411AFGE-7IC PWR SWITCH P-CHAN 1:1 8UDFN |
0 |
|
- |
8-UDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN3030-8 (Type E) |
|
|
AP2822DKETR-G1IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 85mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
AP2822GKETR-G1-01IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 85mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
AP91352MN1-DT8-7RIC PWR REGULATOR N-CH 1:1 12WQFN |
0 |
|
- |
12-WFQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3.6V ~ 12V | Not Required | 2.5A | 50mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | W-QFN3020-12 |
|
BTS118DNTIC PWR SWITCH N-CHAN 1:1 TO252-3 |
0 |
|
- |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 2.4A | 70mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
|
BTS134DNTIC PWR SWITCH N-CHAN 1:1 TO252-3 |
0 |
|
- |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 3.5A | 35mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
|
BTS142DNTIC PWR SWITCH N-CHAN 1:1 TO252-3 |
0 |
|
- |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 4.6A | 23mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
BTS3134NXTIC PWR SWTCH N-CHAN 1:1 SOT223-4 |
0 |
|
- |
TO-261-4, TO-261AA | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 3A | 35mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
MAX14713EWL+IC PWR DRIVER 1:2 15WLP |
0 |
|
Datasheet |
15-WFBGA, WLBGA | - | Strip | Active | General Purpose | 1 | 2:1 | High Side | - | On/Off | - | 1.6V ~ 5.5V | 6A | 11mOhm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-WLP (1.22x2.05) |
|
|
MAX14714EWL+IC PWR PATH SELECTOR 1:2 15WLP |
0 |
|
Datasheet |
15-WFBGA, WLBGA | - | Strip | Active | General Purpose | 1 | 2:1 | High Side | - | On/Off | - | 1.6V ~ 5.5V | 6A | 11mOhm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-WLP (1.22x2.05) |
|
|
NCP81391AMNTXGIC PWR DRIVER N-CHAN 1:1 31QFN |
0 |
|
Datasheet |
34-PowerVFQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side or Low Side | N-Channel | Logic | 20V | 4.5V ~ 13.2V | 65A | 1.7mOhm, 2mOhm | Non-Inverting | PWM Input | Over Temperature, UVLO | -40°C ~ 100°C (TA) | - | - | Surface Mount | 31-QFN (5x5) |
Power Distribution Switches, Load Drivers Electronic Components
Explore Power Distribution Switches, Load Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
