Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCS2112T-2-V/G4-V02IC PWR SWITCH 1:1 20QFN |
0 |
|
Datasheet |
20-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 2 | 1:1 | High Side | - | I2C, SMBus | 2.9V ~ 5.5V | 4.5V ~ 5.5V | 3A | 40mOhm | - | - | Current Limiting (Adjustable), UVLO | -40°C ~ 105°C (TA) | - | - | Surface Mount | 20-QFN (4x4) |
|
|
UCS2112-2-V/G4-V02IC PWR SWITCH 1:1 20QFN |
0 |
|
Datasheet |
20-VFQFN Exposed Pad | - | Tube | Active | USB Switch | 2 | 1:1 | High Side | - | I2C, SMBus | 2.9V ~ 5.5V | 4.5V ~ 5.5V | 3A | 40mOhm | - | - | Current Limiting (Adjustable), UVLO | -40°C ~ 105°C (TA) | - | - | Surface Mount | 20-QFN (4x4) |
|
BSP752RNUMA1IC PWR SWITCH N-CHAN 1:1 DSO-8 |
0 |
|
- |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 52V | Not Required | 1.3A | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-24 |
|
RT9733GFIC POWER SWITCH USB 8MSOP |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RT9733GSIC POWER SWITCH USB 8SOP |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RT9741AGVIC PWR SWITCH N-CHAN 1:1 SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 100mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
RT9741CGVIC PWR SWITCH N-CHAN 1:1 SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 700mA | 120mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
RT9741DGVIC PWR SWITCH N-CHAN 1:1 SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
BTF60702EKVXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-14 |
0 |
|
- |
14-SOIC (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5 ~ 36V | Not Required | 2.3A | 120mOhm | Non-Inverting | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14-40-EP |
|
|
AOZ1335DIIC SMART LOAD SW 2CH 14DFN |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

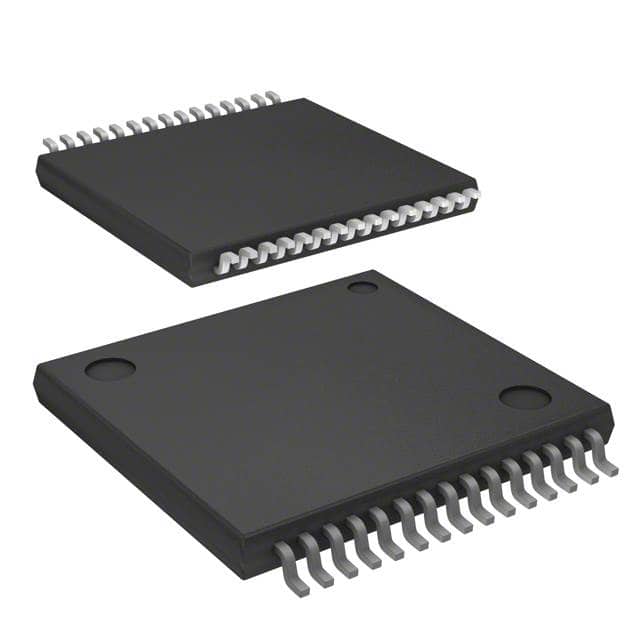

VND5004DSP30TR-EIC PWR SWITCH N-CH MULTIPWRSO-30 |
0 |
|
Datasheet |
30-PowerSOP (0.630", 16.00mm Width) | VIPOWER™ | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | MultiPowerSO-30 |
|

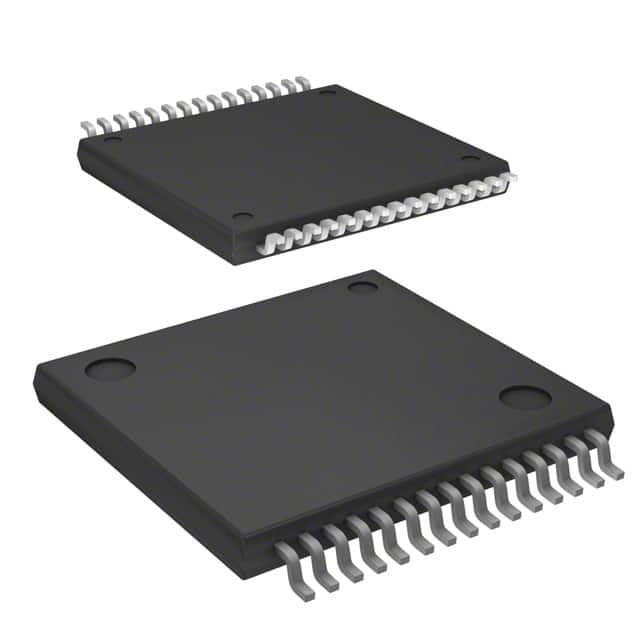

VND5E004C30TR-EIC PWR DRIVER N-CHAN 1:1 PWRSO30 |
0 |
|
Datasheet |
30-PowerSOP (0.630", 16.00mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 65A | 3mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | MultiPowerSO-30 |
|
L9301IC PWR DRIVER N-CHANNEL PWRSSO36 |
0 |
|
Datasheet |
36-PowerFSOP (0.295", 7.50mm Width) | - | Tube | Active | General Purpose | 12 | - | High Side or Low Side | N-Channel | SPI, Parallel | 5V ~ 18V | 4.75V ~ 5.25V | - | - | - | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | PowerSSO-36 EPD |
|
|
VND5004CSP30-EIC PWR SWITCH N-CH MULTIPWRSO-30 |
0 |
|
Datasheet |
30-PowerSOP (0.630", 16.00mm Width) | VIPower™ | Tube | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 27V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | MultiPowerSO-30 |
|
|
VND5004DSP30-EIC PWR SWITCH N-CH MULTIPWRSO-30 |
0 |
|
Datasheet |
30-PowerSOP (0.630", 16.00mm Width) | VIPOWER™ | Tube | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | MultiPowerSO-30 |
|
|
VND5E004C30-EIC PWR DRVR N-CH 1:1 MULTIPWRSO |
0 |
|
Datasheet |
30-PowerSOP (0.630", 16.00mm Width) | - | Tube | Discontinued at Digi-Key | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 65A | 3mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | MultiPowerSO-30 |
|

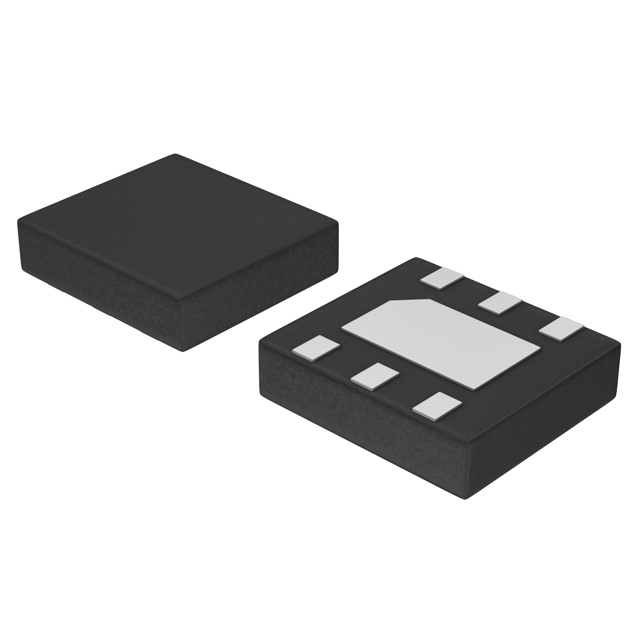

NCV8402AMNT2GIC PWR DRIVER N-CHAN 1:1 6DFN |
0 |
|
Datasheet |
6-VDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 2A | 165mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3.3) |
|
|
TLE75242EMDXUMA1IC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 3V ~ 28V | 3V ~ 5.5V | 330mA | 1Ohm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24 |
|
|
TLE75242EMHXUMA1IC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 3V ~ 28V | 3V ~ 5.5V | 330mA | 1Ohm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24 |
|
|
TLE75620EMTXUMA1IC PWR DRIVER N-CHAN 1:8 SSOP14 |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 3V ~ 28V | 3V ~ 5.5V | 330mA | 1Ohm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-14 |
Power Distribution Switches, Load Drivers Electronic Components
Explore Power Distribution Switches, Load Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
