Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM3544MX-H/NOPBIC PWR SWITCH N-CHAN 1:2 16SOIC |
0 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 4 | 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
FPF2200IC PWR SWITCH P-CH 1:1 6MICROFET |
0 |
|
Datasheet |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 500mA | 140mOhm | Non-Inverting | Auto Restart, Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
FPF2202IC PWR SWITCH P-CH 1:1 6MICROFET |
0 |
|
- |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 500mA | 140mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
BTS52462LAUMA1IC PWR SWITCH N-CHAN 1:1 DSO-12 |
0 |
|
Datasheet |
12-BSOP (0.295", 7.50mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 6A | 35mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-12-9 |
|
|
BTS52352LAUMA1IC PWR SWITCH N-CHAN 1:1 DSO-12 |
0 |
|
Datasheet |
12-BSOP (0.295", 7.50mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 3.5A | 45mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-12-9 |
|
BTS52362GSXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-14 |
0 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 3.2A | 40mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-14-32 |
|
|
BTS52422LAUMA1IC PWR SWITCH N-CHAN 1:1 DSO-12 |
0 |
|
Datasheet |
12-BSOP (0.295", 7.50mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 5.5A | 19mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-12-9 |
|
|
BTS52312GSXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-14 |
0 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 1.8A | 140mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-14 |
|
IPS6041PBFIC PWR SWITCH HI SIDE TO220AB |
0 |
|
Datasheet |
TO-220-5 | - | Tube | Obsolete | - | 1 | - | High Side | - | - | 6V ~ 28V | - | 2.3A | 110mOhm | Non-Inverting | - | - | -40°C ~ 150°C | - | - | Through Hole | TO-220AB (5-LEAD) |
|

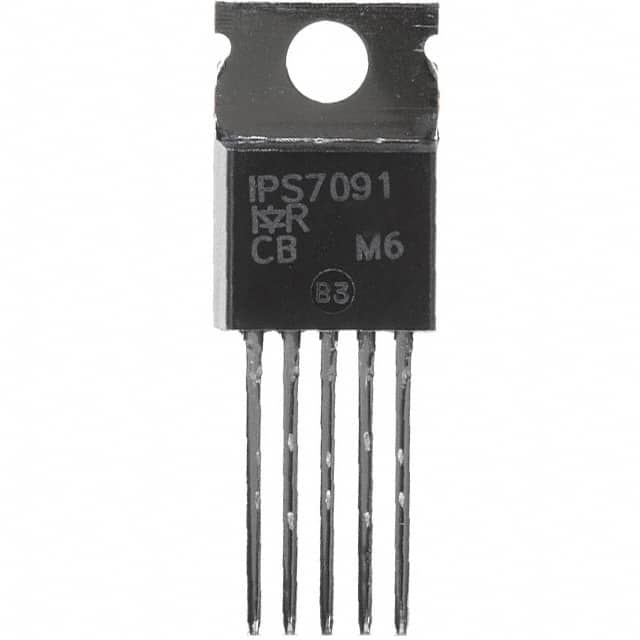

IPS7091PBFIC PWR SWITCH HI SIDE TO220AB |
0 |
|
Datasheet |
TO-220-5 | - | Tube | Obsolete | - | 1 | - | High Side | - | - | 6V ~ 35V | - | 1.5A | 80mOhm | Non-Inverting | - | - | -40°C ~ 150°C | - | - | Through Hole | TO-220AB (5-LEAD) |
|
DRV101FKTWTG3IC PWR DRIVER BIPOLAR 1:1 7DDPAK |
0 |
|
Datasheet |
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | Low Side | Bipolar | On/Off | 9V ~ 60V | Not Required | 1.9A | - | Non-Inverting | Internal PWM, Status Flag | Current Limiting (Fixed), Over Temperature | -55°C ~ 125°C (TA) | - | - | Surface Mount | TO-263 (DDPAK-7) |
_4040233^C.jpg)
|

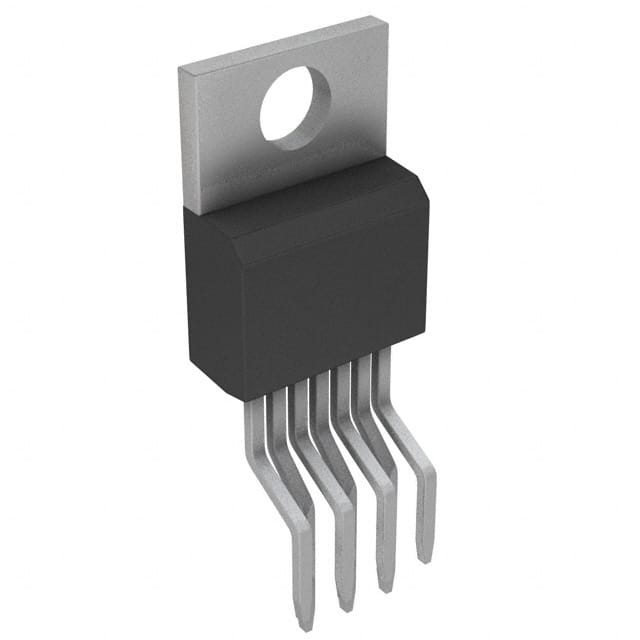

DRV102TG3IC PWR DRVR BIPOLAR 1:1 TO220-7 |
0 |
|
- |
TO-220-7 Formed Leads | - | Tube | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | High Side | Bipolar | On/Off | 8V ~ 60V | Not Required | 2A | - | Non-Inverting | Internal PWM, Status Flag | Current Limiting (Fixed), Over Temperature | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-220-7 |
|
TPS2221PWPG4IC PWR SWITCH 3:2 14HTSSOP |
0 |
|
Datasheet |
14-PowerTSSOP (0.173", 4.40mm Width) | - | Tube | Obsolete | PCMCIA Switch | 2 | 3:2 | High Side | - | Parallel | 1.8V, 3.3V, 5V | Not Required | 1A | 97mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-HTSSOP |
|
ULN2803ANG4TRANS 8NPN DARL 50V 0.5A 18DIP |
0 |
|
Datasheet |
18-DIP (0.300", 7.62mm) | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 18-PDIP |
|
AMIS39101PNPB4RGIC PWR DRIVER 1:8 28SOIC |
0 |
|
Datasheet |
28-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | High Side | - | SPI | 3.5V ~ 28V | 3.1V ~ 5.5V | 350mA | 1Ohm | - | - | Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
IPS7081RTRLPBFIC SWITCH IPS 1CH HI SIDE DPAK |
0 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | - | Cut Tape (CT) | Obsolete | - | 1 | - | High Side | - | - | 6V ~ 35V | - | 2.3A | 55mOhm | Non-Inverting | - | - | -40°C ~ 150°C | - | - | Surface Mount | DPAK-5 |
.jpg)
|
IPS7081STRLPBFIC SWITCH IPS 1CH HI SIDE D2PAK |
0 |
|
Datasheet |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Cut Tape (CT) | Obsolete | - | 1 | - | High Side | - | - | 6V ~ 35V | - | 2.3A | 55mOhm | Non-Inverting | - | - | -40°C ~ 150°C | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
|
|
IPS7091STRLPBFIC SWITCH IPS 1CH HI SIDE D2PAK |
0 |
|
Datasheet |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Cut Tape (CT) | Obsolete | - | 1 | - | High Side | - | - | 6V ~ 35V | - | 1.5A | 80mOhm | Non-Inverting | - | - | -40°C ~ 150°C | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
|
|
IPS6041STRLPBFIC SWITCH IPS 1CH HI SIDE D2PAK |
0 |
|
Datasheet |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Cut Tape (CT) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 2.3A | 110mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
|
IPS1041RTRLPBFIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 2.2A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
