Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

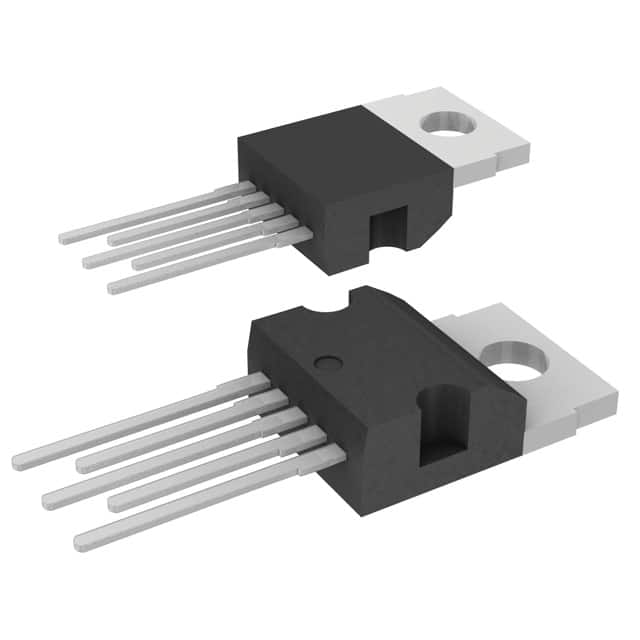

VN750-12-EIC PWR DRVR N-CH 1:1 5PENTAWATT |
0 |
|
Datasheet |
Pentawatt-5 (Straight Leads, Staggered Depth) | VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | 5-PENTAWATT |
|
VN750PEP-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
0 |
|
- |
PowerSSO-12 | VIPower™ | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
|
|
VN750PEPTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
0 |
|
- |
PowerSSO-12 | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
|

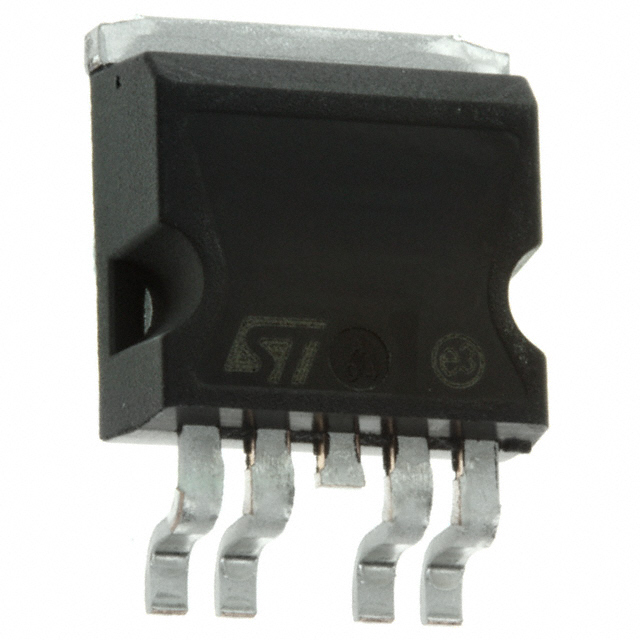

VN920D-B5IC PWR DRIVER N-CHAN 1:1 P2PAK |
0 |
|
Datasheet |
P2PAK (4 Leads + Tab) | VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 18mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | P2PAK |
|
VN920PEP-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
0 |
|
Datasheet |
24-PowerBSOP (0.295", 7.50mm Width) | VIPower™ | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 15mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
|
VN920PEPTR-EIC PWR DRVR N-CHAN 1:1 PWRSSO24 |
0 |
|
Datasheet |
24-PowerBSOP (0.295", 7.50mm Width) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 15mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
VNB10N0713TRIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 14A | 100mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
VNB14N04-EIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 10A | 70mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
VNB14N04TR-EIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 10A | 70mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
VNB28N0413TRIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 31V (Max) | Not Required | 19A | 35mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
VNB28N04-EIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 31V (Max) | Not Required | 19A | 35mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
VNB28N04TR-EIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 31V (Max) | Not Required | 19A | 35mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
VNB35N0713TRIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 55V (Max) | Not Required | 25A | 28mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | D2PAK |
|
|
VNB49N0413TRIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 33V (Max) | Not Required | 28A | 40mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
VNB49N04-EIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 33V (Max) | Not Required | 28A | 40mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
VNB49N04TR-EIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 33V (Max) | Not Required | 28A | 40mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | D2PAK |
|
VND05BSP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | - | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 1.6A | 200mOhm (Max) | Non-Inverting | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VND10BSP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | - | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 3.4A | 100mOhm (Max) | Non-Inverting | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VND10BSPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 3.4A | 100mOhm (Max) | Non-Inverting | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
__2.jpg)
|
VND10N0613TRIC PWR DRIVER N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | OMNIFET™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | - | Not Required | 6A | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | DPAK |
