Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCP1404T-E/SNIC GATE DRVR LOW-SIDE 8SOIC |
132 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 4.5A, 4.5A | Non-Inverting | - | 15ns, 18ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MIC5014YM-TRIC GATE DRVR HI/LOW SIDE 8SOIC |
7,809 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel MOSFET | 2.75V ~ 30V | 0.8V, 2V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MIC4102YM-TRIC GATE DRVR HALF-BRIDGE 8SOIC |
8,334 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 9V ~ 16V | 0.8V, 2.2V | 2A, 3A | Non-Inverting | 118 V | 330ns, 200ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
BD2270HFV-TRIC GATE DRVR HIGH-SIDE HVSOF5 |
493 |
|
Datasheet |
- | SOT-665 | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 2.7V ~ 5.5V | - | - | Non-Inverting | - | 130µs, 18µs | -25°C ~ 85°C (TA) | - | - | Surface Mount | 5-HVSOF |
|
IR2011STRPBFIC GATE DRVR HI/LOW SIDE 8SOIC |
5,732 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.2V | 1A, 1A | Inverting | 200 V | 35ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

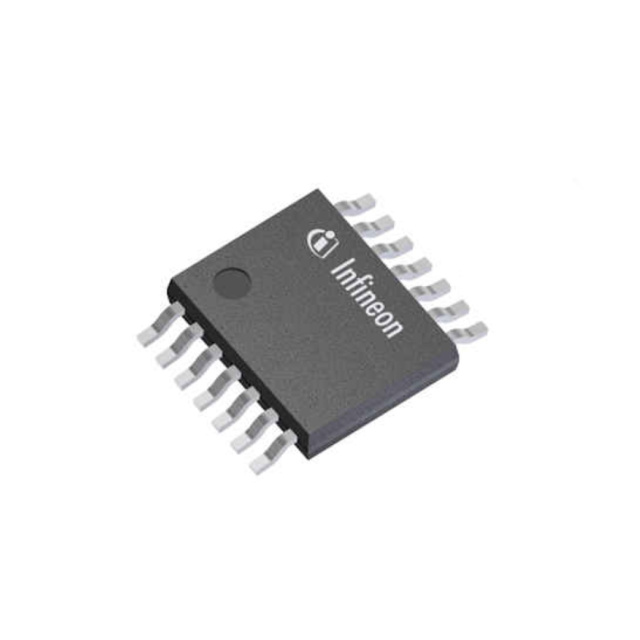

TLF11251EPXUMA1IC GATE DRVR HALF-BRIDGE 14TSSOP |
4,579 |
|
Datasheet |
- | 14-PowerTSSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Single | 1 | N-Channel, P-Channel MOSFET | 2.35V ~ 7V | 2.31V, 4.69V | 2.5A, 2.5A | Non-Inverting | - | 60ns, 60ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-14-5 |
-8.jpg)
|
LF2190NTRIC GATE DRVR HALF-BRIDGE 8SOIC |
13,238 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 4.5A, 4.5A | Non-Inverting | 600 V | 25ns, 20ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|

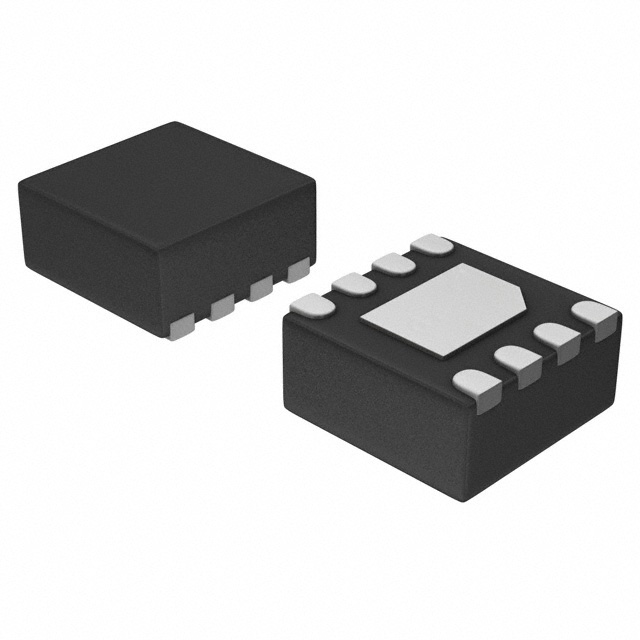

NCP81074AMNTBGIC GATE DRVR LOW-SIDE 8DFN |
7,995 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 20V | 1.5V, 1.9V | 10A, 10A | Inverting, Non-Inverting | - | 4ns, 4ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
|
LM9061MX/NOPBIC GATE DRVR HIGH-SIDE 8SOIC |
4,100 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 7V ~ 26V | 1.5V, 3.5V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IR1167ASTRPBFIC GATE DRVR LOW-SIDE 8SOIC |
2,757 |
|
Datasheet |
SmartRectifier™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 12V ~ 18V | 2V, 2.15V | 2A, 7A | Non-Inverting | - | 18ns, 10ns | -25°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
HIP2210FRTZ-TIC GATE DRVR HALF-BRIDGE 10TDFN |
27,491 |
|
Datasheet |
- | 10-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 6V ~ 18V | 1.47V, 1.84V | 3A, 4A | Non-Inverting | 115 V | 435ns, 365ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-TDFN (4x4) |
|
MC33151DR2GIC GATE DRVR LOW-SIDE 8SOIC |
2,223 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 6.5V ~ 18V | 0.8V, 2.6V | 1.5A, 1.5A | Inverting | - | 31ns, 32ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
.jpg)
|
FAN3122TMPXIC GATE DRVR LOW-SIDE 8MLP |
13,007 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 10.6A, 11.4A | Non-Inverting | - | 23ns, 19ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3x3) |
|
FAN3122TMXIC GATE DRVR LOW-SIDE 8SOIC |
5,578 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 10.6A, 11.4A | Non-Inverting | - | 23ns, 19ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MIC5015YM-TRIC GATE DRVR HI/LOW SIDE 8SOIC |
4,013 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel MOSFET | 2.75V ~ 30V | 0.8V, 2V | - | Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

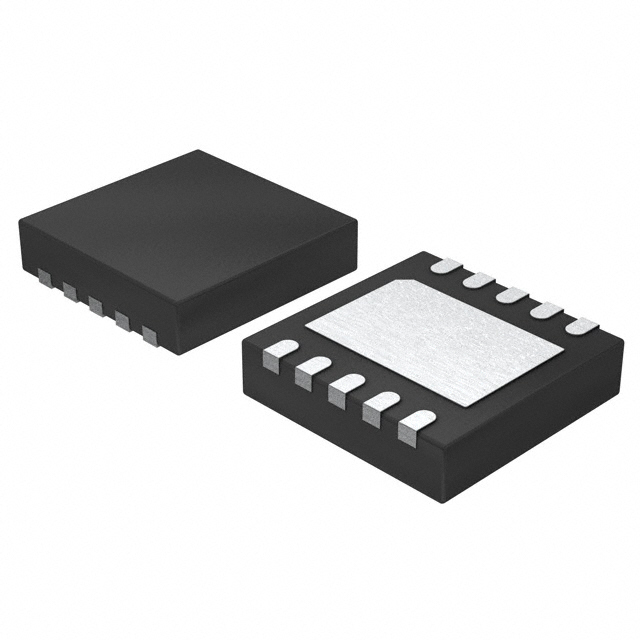

MP1907AGQ-ZIC GATE DRVR HALF-BRIDGE 10QFN |
12,337 |
|
- |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 100 V | 12ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-QFN (3x3) |
|
ISL95808HRZ-TIC GATE DRVR HALF-BRIDGE 8DFN |
8,197 |
|
Datasheet |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | - | 2A, 2A | Non-Inverting | 33 V | 8ns, 8ns | -10°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
|
MP1907GQ-ZIC GATE DRVR HALF-BRIDGE 10QFN |
3,340 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 100 V | 12ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-QFN (3x3) |
|
TC4452VMFIC GATE DRVR LOW-SIDE 8DFN |
1,338 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 13A, 13A | Non-Inverting | - | 30ns, 32ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-S (6x5) |
|
IXDN604SIATRIC GATE DRVR LOW-SIDE 8SOIC |
22,884 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 4A, 4A | Non-Inverting | - | 9ns, 8ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
Gate Drivers Electronic Components
Explore Gate Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
