Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RT7027GSIC GATE DRVR HALF-BRIDGE 8SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 300mA, 600mA | Non-Inverting | 600 V | 70ns, 35ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOP |
|
|
RT7027GNIC GATE DRVR HALF-BRIDGE 8SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 300mA, 600mA | Non-Inverting | 600 V | 70ns, 35ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOP |
|

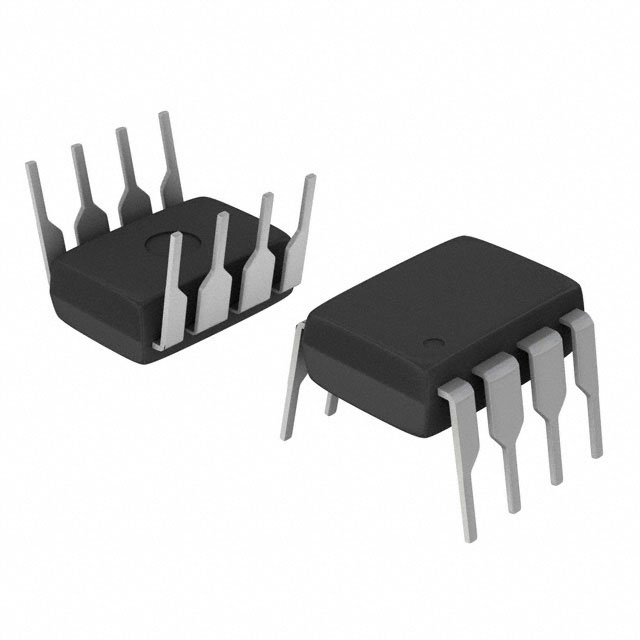

RT7028AGNIC GATE DRVR HI/LOW SIDE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 300mA, 600mA | Non-Inverting | 600 V | 70ns, 35ns | -40°C ~ 125°C (TA) | - | - | Through Hole | 8-DIP |
|
|
RT7028BGNIC GATE DRVR HI/LOW SIDE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 300mA, 600mA | Non-Inverting | 600 V | 70ns, 35ns | -40°C ~ 125°C (TA) | - | - | Through Hole | 8-DIP |
|
|
RT7020GNIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 300mA, 600mA | Non-Inverting | 600 V | 70ns, 35ns | -40°C ~ 125°C (TJ) | - | - | Through Hole | 8-DIP |
|
|
RT7021AGNIC GATE DRVR HI/LOW SIDE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 13V ~ 20V | 0.8V, 2.5V | 300mA, 600mA | Non-Inverting | 600 V | 70ns, 35ns | -40°C ~ 125°C (TA) | - | - | Through Hole | 8-DIP |
|
|
RT7021BGNIC GATE DRVR HI/LOW SIDE 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 13V ~ 20V | 0.8V, 2.5V | 300mA, 600mA | Non-Inverting | 600 V | 70ns, 35ns | -40°C ~ 125°C (TA) | - | - | Through Hole | 8-DIP |
|
MAX4426C/DIC GATE DRVR |
0 |
|
Datasheet |
- | - | Bulk | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VLA541-11RIC GATE DRVR PWR MGMT MOSFET |
0 |
|
Datasheet |
* | - | Bulk | Discontinued at Digi-Key | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2EDF7175FXUMA1IC GATE DRVR HALF-BRIDG DSO16-11 |
0 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 20V | -, 1.65V | 1A, 2A | Non-Inverting | - | 6.5ns, 4.5ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | PG-DSO-16-11 |
|
LTC4444HMS8E#WPBFIC GATE DRVR HALF-BRIDGE 8MSOP |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 7.2V ~ 13.5V | 1.85V, 3.25V | 2.5A, 3A | Non-Inverting | 114 V | 8ns, 5ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-MSOP-EP |
|
|
LTC4444EMS8E#WTRPBFIC GATE DRVR HALF-BRIDGE 8MSOP |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 7.2V ~ 13.5V | 1.85V, 3.25V | 2.5A, 3A | Non-Inverting | 114 V | 8ns, 5ns | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-MSOP-EP |
|
|
LTC4444HMS8E#WTRPBFIC GATE DRVR HALF-BRIDGE 8MSOP |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 7.2V ~ 13.5V | 1.85V, 3.25V | 2.5A, 3A | Non-Inverting | 114 V | 8ns, 5ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-MSOP-EP |
|
|
SC1301AISTRTIC GATE DRVR LOW-SIDE SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 16.5V | 0.8V, 2V | 2A, 2A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
SC1302AIMSTRTIC GATE DRVR LOW-SIDE 8MSOP |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16.5V | 0.8V, 2V | 1.6A, 1.6A | Inverting, Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP |
|

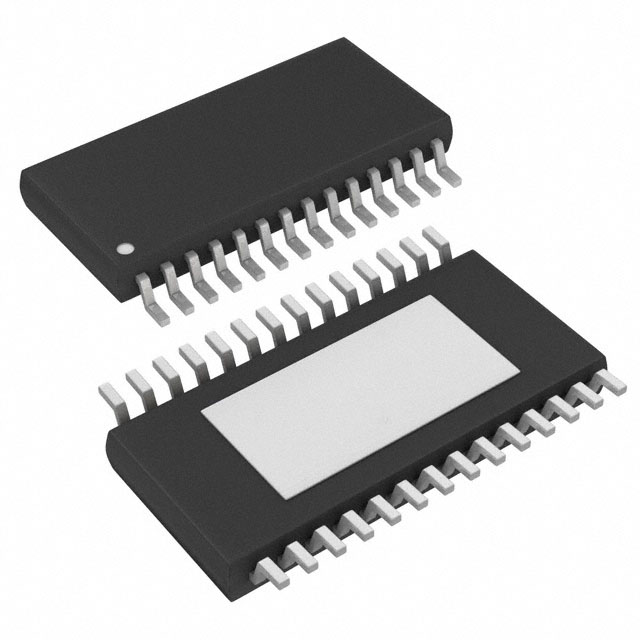

MP6539GFIC GATE DRVR HALF-BRIDGE 28TSSOP |
0 |
|
Datasheet |
- | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Not Verified | Half-Bridge | 3-Phase | 6 | N-Channel MOSFET | 8.5V ~ 14V | 0.8V, 2V | 800mA, 1A | Non-Inverting | 100 V | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|
MAX25615AUT/V+IC GATE DRVR HI/LOW SIDE SOT23-6 |
0 |
|
- |
- | SOT-23-6 | Strip | Active | Not Verified | High-Side or Low-Side | Synchronous | 2 | N-Channel, P-Channel MOSFET | 4V ~ 15.5V | 0.8V, 2V | 3A, 7A | Inverting, Non-Inverting | - | 36ns, 17ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-6 |
|
|
SC3224TMXIC GATE DRVR |
0 |
|
- |
- | - | Bulk | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC3227CMXIC GATE DRVR |
0 |
|
- |
- | - | Bulk | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMC0717IC GATE DRVR |
0 |
|
- |
- | - | Bulk | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
