Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL89164FRTAZIC GATE DRVR LOW-SIDE 8TDFN |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16V | 1.22V, 2.08V | 6A, 6A | Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
ISL89165FRTAZ-TIC GATE DRVR LOW-SIDE 8TDFN |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16V | 1.22V, 2.08V | 6A, 6A | Inverting, Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-TDFN (3x3) |
|
ISL2100AABZ-TIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 3.7V, 7.4V | 2A, 2A | Non-Inverting | 114 V | 10ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ISL6611ACRZ-TIC GATE DRVR HALF-BRIDGE 16QFN |
0 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.8V, 2V | -, 4A | Non-Inverting | 36 V | 8ns, 8ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (4x4) |
|
ISL89160FBEAZ-TIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16V | 1.22V, 2.08V | 6A, 6A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
|
ISL89160FRTAZ-TIC GATE DRVR LOW-SIDE 8TDFN |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16V | 1.22V, 2.08V | 6A, 6A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
EL7457CLZ-T7AIC GATE DRVR HI/LOW SIDE 16QFN |
0 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | High-Side or Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 2A, 2A | Non-Inverting | - | 13.5ns, 13ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (4x4) |
|
EL7457CSZ-T7AIC GATE DRVR HI/LOW SIDE 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | High-Side or Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 2A, 2A | Non-Inverting | - | 13.5ns, 13ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ISL2100AABZIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 3.7V, 7.4V | 2A, 2A | Non-Inverting | 114 V | 10ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
ISL6611ACRZIC GATE DRVR HALF-BRIDGE 16QFN |
0 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.8V, 2V | -, 4A | Non-Inverting | 36 V | 8ns, 8ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (4x4) |
|
|
ISL6611AIRZIC GATE DRVR HALF-BRIDGE 16QFN |
0 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.8V, 2V | -, 4A | Non-Inverting | 36 V | 8ns, 8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (4x4) |
|
|

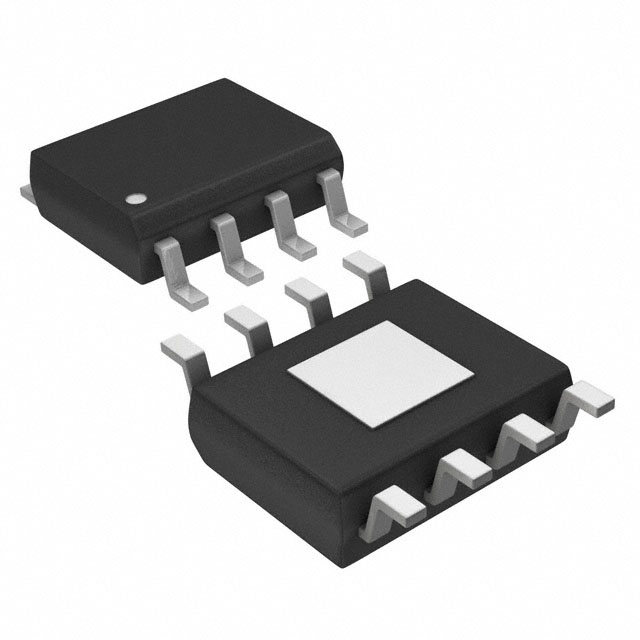

ISL89160FBEAZIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16V | 1.22V, 2.08V | 6A, 6A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
|
ISL89160FRTAZIC GATE DRVR LOW-SIDE 8TDFN |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16V | 1.22V, 2.08V | 6A, 6A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
ISL89161FRTAZIC GATE DRVR LOW-SIDE 8TDFN |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16V | 1.22V, 2.08V | 6A, 6A | Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-TDFN (3x3) |
|
FAN7190M-F085IC GATE DRVR HALF-BRIDGE 8SOP |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 22V | 1.2V, 2.5V | 4.5A, 4.5A | Non-Inverting | 600 V | 25ns, 20ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
FAN7190MX-F085IC GATE DRVR HALF-BRIDGE 8SOP |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 22V | 1.2V, 2.5V | 4.5A, 4.5A | Non-Inverting | 600 V | 25ns, 20ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
AUIR2085SIC GATE DRVR HALF-BRIDGE 8SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15V | - | 1A, 1A | RC Input Circuit | 100 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-904 |
|
|
AUIRS2003SIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Inverting, Non-Inverting | 200 V | 70ns, 35ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
AUIRS2004SIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 200 V | 160ns, 70ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
AUIRS2110SIC GATE DRVR HALF-BRIDGE 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3V ~ 20V | 6V, 9.5V | 2.5A, 2.5A | Non-Inverting | 500 V | 25ns, 15ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 16-SOIC |
