AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP1015AP100GIC OFFLINE SWITCH FLYBACK 7DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | 8.5V ~ 10V | 67% | 100kHz | 19 W | Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | 7-PDIP | Through Hole |
|

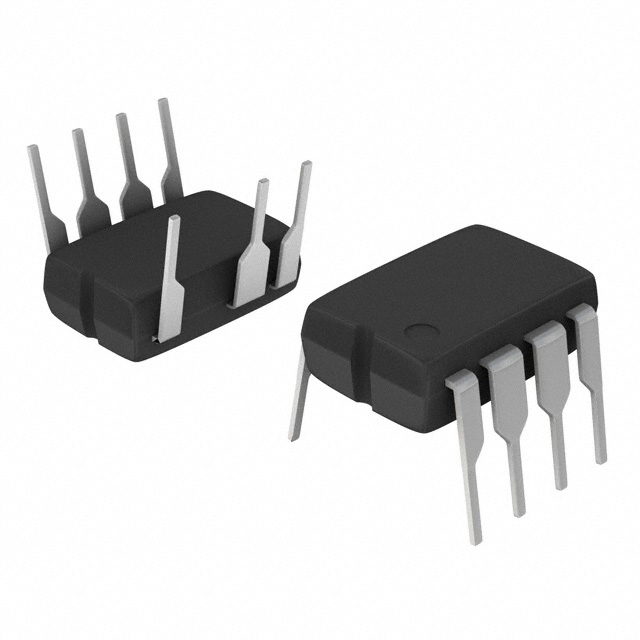

NCP1271P65GIC OFFLINE SWITCH FLYBACK 7DIP |
0 |
|
Datasheet |
Soft-Skip™ | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Obsolete | Isolated | No | - | Flyback | 12.6 V | 10V ~ 20V | 80% | 65kHz | - | Current Limiting, Over Load, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | 7-PDIP | Through Hole |
|
NCP1351BPGIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | No | - | Flyback | 18 V | 8.9V ~ 28V | - | - | - | Current Limiting, Over Load, Over Power, Short Circuit | - | -25°C ~ 125°C (TJ) | - | - | 8-PDIP | Through Hole |
|
TOP252GNIC OFFLINE SWITCH FLYBACK 8SMD |
0 |
|
Datasheet |
TOPSwitch®-HX | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 15 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
|
TOP253GNIC OFFLINE SWITCH FLYBACK 8SMD |
0 |
|
Datasheet |
TOPSwitch®-HX | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 25 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
TOP252MNIC OFFLINE SW FLYBACK 10CSDIP |
0 |
|
Datasheet |
TOPSwitch®-HX | 10-SDIP (0.300", 7.62mm), 9 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 15 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SDIP-10C | Through Hole |
|
|
TOP253MNIC OFFLINE SW FLYBACK 10CSDIP |
0 |
|
Datasheet |
TOPSwitch®-HX | 10-SDIP (0.300", 7.62mm), 9 Leads | Tube | Obsolete | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 25 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | SDIP-10C | Through Hole |
|
FSFR1700IC OFFLINE SW HALF-BRIDGE 9SIP |
0 |
|
- |
FSFR | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 14.5 V | 11.3V ~ 25V | 50% | Up to 300kHz | 200 W | Current Limiting, Over Load, Over Temperature, Over Voltage | EN, Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP | Through Hole |
|
FSFR1800IC OFFLINE SW HALF-BRIDGE 9SIP |
0 |
|
- |
FSFR | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 14.5 V | 11.3V ~ 25V | 50% | Up to 300kHz | 260 W | Current Limiting, Over Load, Over Temperature, Over Voltage | EN, Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP | Through Hole |
|
|
FSFR2000IC OFFLINE SW HALF-BRIDGE 9SIP |
0 |
|
- |
FSFR | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 14.5 V | 11.3V ~ 25V | 50% | Up to 300kHz | 350 W | Current Limiting, Over Load, Over Temperature, Over Voltage | EN, Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP | Through Hole |
|
LNK603DGIC OFFLINE SWITCH FLYBACK 8SO |
0 |
|
Datasheet |
LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 3.3 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK613DGIC OFFLINE SWITCH FLYBACK 8SO |
0 |
|
Datasheet |
LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 3.3 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK604DGIC OFFLINE SWITCH FLYBACK 8SO |
0 |
|
Datasheet |
LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 4.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK614DGIC OFFLINE SWITCH FLYBACK 8SO |
0 |
|
Datasheet |
LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 4.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK605DGIC OFFLINE SWITCH FLYBACK 8SO |
0 |
|
Datasheet |
LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 5.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK615DGIC OFFLINE SWITCH FLYBACK 8SO |
0 |
|
Datasheet |
LinkSwitch®-II | 8-SOIC (0.154", 3.90mm Width), 7 Leads | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 5.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SO-8C | Surface Mount |
|
|
LNK606GGIC OFFLINE SWITCH FLYBACK 8SMD |
0 |
|
Datasheet |
LinkSwitch®-II | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 6.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
|
LNK616GGIC OFFLINE SWITCH FLYBACK 8SMD |
0 |
|
Datasheet |
LinkSwitch®-II | 8-SMD (7 Leads), Gull Wing | Tube | Discontinued at Digi-Key | Isolated | Yes | 700V | Flyback | - | - | 55% | Up to 85kHz | 6.1 W | Current Limiting, Open Loop, Over Temperature, Short Circuit | - | -40°C ~ 150°C (TJ) | - | - | SMD-8C | Surface Mount |
|
FSQ0765RSWDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Datasheet |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | - | 48kHz ~ 67kHz | 90 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Sync | -25°C ~ 85°C (TA) | - | - | TO-220F-6L (U-Forming) | Through Hole |
|

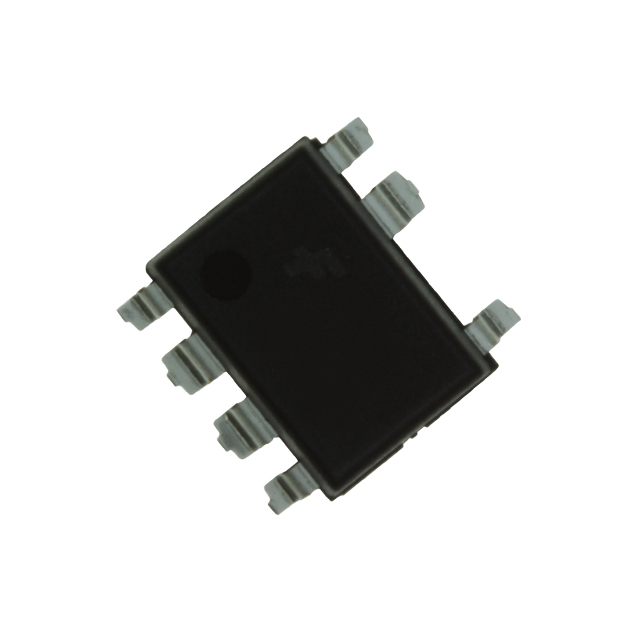

FSQ510MXIC OFFLINE SWITCH FLYBACK 7LSOP |
0 |
|
Datasheet |
FPS™ | 8-SMD (7 Leads), Gull Wing | Tape & Reel (TR) | Obsolete | Isolated | Yes | 700V | Flyback | 8.7 V | 6.7V ~ 20V | 60% | 94.3kHz ~ 132kHz | 9 W | Current Limiting, Over Load, Over Temperature | Sync | -40°C ~ 140°C (TJ) | - | - | 7-LSOP | Surface Mount |
