AC DC Converters, Offline Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Isolation | Internal Switch(s) | Voltage - Breakdown | Topology | Voltage - Start Up | Voltage - Supply (Vcc/Vdd) | Duty Cycle | Frequency - Switching | Power (Watts) | Fault Protection | Control Features | Operating Temperature | Grade | Qualification | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ICE2QS03GXUMA1IC OFFLINE SWITCH FLYBACK 8DSO Infineon Technologies |
1,922 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 18 V | 10.5V ~ 27V | 50% | 52kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | PG-DSO-8 | Surface Mount |
|

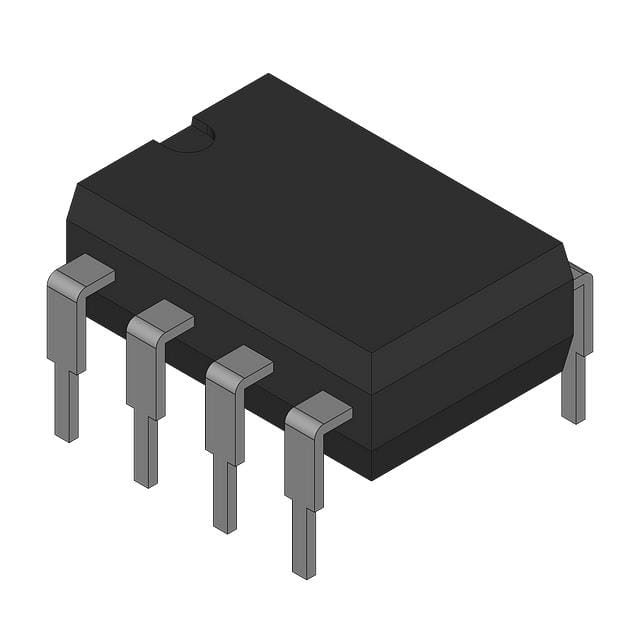

ICE5AR0680BZSXKLA1IC OFFLINE SWITCH FLYBACK 7DIP Infineon Technologies |
1,542 |
|
Datasheet |
CoolMOS™, CoolSET™ | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 800V | Flyback | 16 V | 10V ~ 25.5V | 75% | 100kHz | 39 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | EN, Soft Start, Sync | -40°C ~ 125°C (TJ) | - | - | PG-DIP-7 | Through Hole |
|

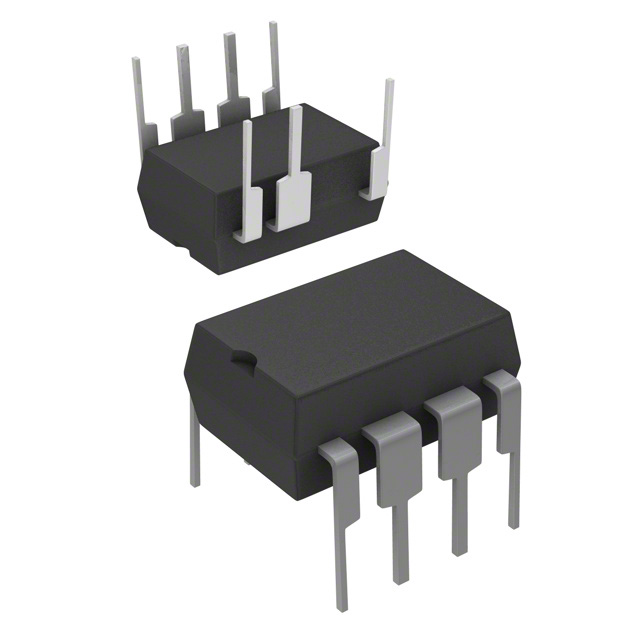

ICE2QR2280ZXKLA1IC OFFLINE SWITCH FLYBACK 7DIP Infineon Technologies |
1,094 |
|
Datasheet |
CoolMOS™, CoolSET™-Q1 | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 800V | Flyback | 18 V | 10.5V ~ 27V | 50% | 52kHz | 54 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | PG-DIP-7-4 | Through Hole |
|
ICE3BR0665JXKLA1IC OFFLINE SWITCH FLYBACK 8DIP Infineon Technologies |
1,846 |
|
Datasheet |
CoolMOS™, CoolSET™F3R | 8-DIP (0.300", 7.62mm) | Tube | Active | Isolated | Yes | 650V | Flyback | 18 V | 10.5V ~ 25V | 75% | 65kHz | 74 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | PG-DIP-8 | Through Hole |
|
|
ICE3BR1765JXKLA1IC OFFLINE SWITCH FLYBACK 8DIP Infineon Technologies |
11,188 |
|
Datasheet |
CoolMOS™, CoolSET™F3R | 8-DIP (0.300", 7.62mm) | Tube | Active | Isolated | Yes | 650V | Flyback | 18 V | 10.5V ~ 25V | 75% | 65kHz | 46 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 130°C (TJ) | - | - | PG-DIP-8 | Through Hole |
|
|
ICE3AR2280JZXKLA1IC OFFLINE SWITCH FLYBACK 7DIP Infineon Technologies |
1,462 |
|
Datasheet |
CoolMOS™, CoolSET™F3R | 8-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated | Yes | 800V | Flyback | 17 V | 10.5V ~ 27V | 75% | 100kHz | 43 W | Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | PG-DIP-7-1 | Through Hole |
|
CYPAP111A3-10SXQTPRIMARY SIDE STARTUP CONTROLLER Infineon Technologies |
2,500 |
|
Datasheet |
EZ-PD™ PAG1P | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | 500V | Flyback, Secondary Side SR | - | 85V ~ 265V | 70% | 30kHz | - | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | 10-SOIC | Surface Mount |
|
|
ICE5QSBGXUMA1IC OFFLINE SWITCH FLYBACK 8DSO Infineon Technologies |
3,359 |
|
Datasheet |
CoolMOS™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 16 V | 10V ~ 27V | - | - | 109 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 125°C (TJ) | - | - | PG-DSO-8 | Surface Mount |
|
|
ICE3BS03LJGXUMA1IC OFFLINE SWITCH FLYBACK 8DSO Infineon Technologies |
16,779 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 18 V | 10.5V ~ 26V | 75% | 65kHz | - | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 130°C (TJ) | - | - | PG-DSO-8 | Surface Mount |
|
|
ICE2QS02GXUMA1IC OFFLINE SWITCH FLYBACK 8DSO Infineon Technologies |
5,851 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | No | - | Flyback | 12 V | 11V ~ 25V | - | 20kHz ~ 150kHz | - | Current Limiting, Open Loop, Over Load, Over Voltage | - | -25°C ~ 125°C (TJ) | - | - | PG-DSO-8 | Surface Mount |
