Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS8501L3-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
50 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 15% @ 16mA | - | - | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|

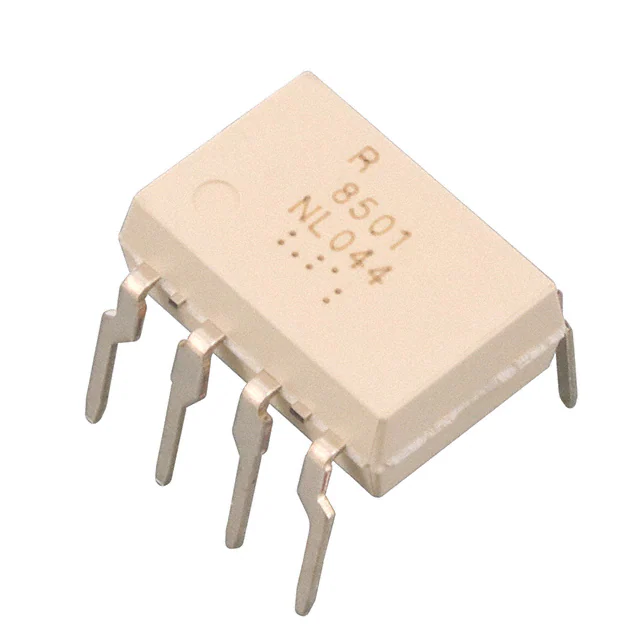

PS8501-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
50 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 15% @ 16mA | - | - | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
HCPL-0530-500EOPTOISO 3.75KV 2CH TRANS 8SOIC |
4,101 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 3750Vrms | 7% @ 16mA | 50% @ 16mA | 200ns, 1.3µs | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SO |
|
ACPL-K54L-000EOPTOISOLATOR 5KV 2CH TRANS 8-SO |
5,031 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 2 | 5000Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
|
PS2933-1-V-AXPS29 |
2,060 |
|
Datasheet |
- | 4-SMD, Flat Leads | Strip | Active | 1 | 2500Vrms | 400% @ 1mA | 4500% @ 1mA | - | 20µs, 5µs | DC | Darlington | 350V | 60mA | 1.1V | 50 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
PS2913-1-AXOPTOISOLATOR 2.5KV TRANS 4SMD |
613 |
|
Datasheet |
- | 4-SMD, Flat Leads | Strip | Active | 1 | 2500Vrms | 50% @ 1mA | 200% @ 1mA | 80µs, 50µs | 10µs, 10µs | DC | Transistor | 120V | 30mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
.JPG)
|
ACNU-250L-000E11MM OPTOCOUPLER (1MBD) |
1,779 |
|
Datasheet |
- | 8-SOIC (0.378", 9.60mm Width) | Tube | Active | 1 | 5000Vrms | 23% @ 12mA | 53% @ 12mA | 700ns, 400ns | - | DC | Transistor | 24V | 12mA | 1.5V | 20 mA | - | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
|
VOA300-DEFG-X019TSMD-8 OPTION 9 VDE LINEAR OPTOCO |
970 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | - | - | - | 800ns, 800ns | DC | Photovoltaic, Linearized | - | - | 1.4V | 60 mA | - | Automotive | AEC-Q102 | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
ACPL-M43U-000EOPTOISOLATOR 3.75KV TRANS 5-SO |
1,601 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 3750Vrms | 32% @ 10mA | 80% @ 10mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 20 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
|
ACPL-054L-560EOPTOISOLTR 3.75KV 2CH TRANS 8-SO |
2,996 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 3750Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
PS8501L3-AXOPTOISO 5KV TRANS W/BASE 8SMD |
655 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
|
PS2911-1-V-AXPS29 |
496 |
|
Datasheet |
- | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 1mA | 400% @ 1mA | 40µs, 120µs | 5µs, 10µs | DC | Transistor | 40V | 40mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
PS2913-1-V-AXPS29 |
700 |
|
Datasheet |
- | 4-SMD, Flat Leads | Strip | Active | 1 | 2500Vrms | 50% @ 1mA | 200% @ 1mA | 80µs, 50µs | 10µs, 10µs | DC | Transistor | 120V | 30mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
PS8802-1-V-F3-AXSO-8 |
1,009 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 15% @ 16mA | 45% @ 16mA | - | - | DC | Transistor with Base | - | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SSOP |
|
|
PS2801C-4-V-APS28-4 |
775 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Strip | Active | 4 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 10µs, 7µs | 5µs, 7µs | DC | Transistor | 80V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 16-SSOP |
|
|
ACPL-K54L-500EOPTOISOLATOR 5KV 2CH TRANS 8-SO |
2,648 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 2 | 5000Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
|
ACPL-K44T-560EOPTOISOLATOR 5KV 2CH TRANSISTOR |
955 |
|
Datasheet |
R²Coupler™ | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 2 | 5000Vrms | 32% @ 10mA | 100% @ 10mA | 150ns, 500ns | - | DC | Transistor | 20V | 8mA | 1.55V | 20 mA | - | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO Stretched |
|
|
VOA300-EF-X019TSMD-8 OPTION 9 VDE LINEAR OPTOCO |
1,990 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | - | - | - | 800ns, 800ns | DC | Photovoltaic, Linearized | - | - | 1.4V | 60 mA | - | Automotive | AEC-Q102 | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
|
VOA300-EF-X017TSMD-8 OPTION 7 VDE LINEAR OPTOCO |
1,985 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | - | - | - | 800ns, 800ns | DC | Photovoltaic, Linearized | - | - | 1.4V | 60 mA | - | Automotive | AEC-Q102 | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
|
PS2802-4-V-APS28-4 |
2,400 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Strip | Active | 4 | 2500Vrms | 200% @ 1mA | - | - | 200µs, 200µs | DC | Darlington | 40V | 100mA | 1.1V | 50 mA | 1V | - | - | -55°C ~ 100°C | Surface Mount | 16-SSOP |
