Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL0701R2OPTOCOUPLER SGL DARL OUT 8-SOIC |
1,840 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 300ns, 1.6µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 20 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
FOD050LR2OPTOISO 2.5KV TRANS W/BASE 8SOIC |
4,935 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 15% @ 16mA | 50% @ 16mA | 1µs, 1µs (Max) | - | DC | Transistor with Base | 7V | 8mA | 1.45V | 25 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
PS8501L1-AXOPTOISO 5KV TRANS W/BASE 8DIP |
40 |
|
Datasheet |
NEPOC | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|

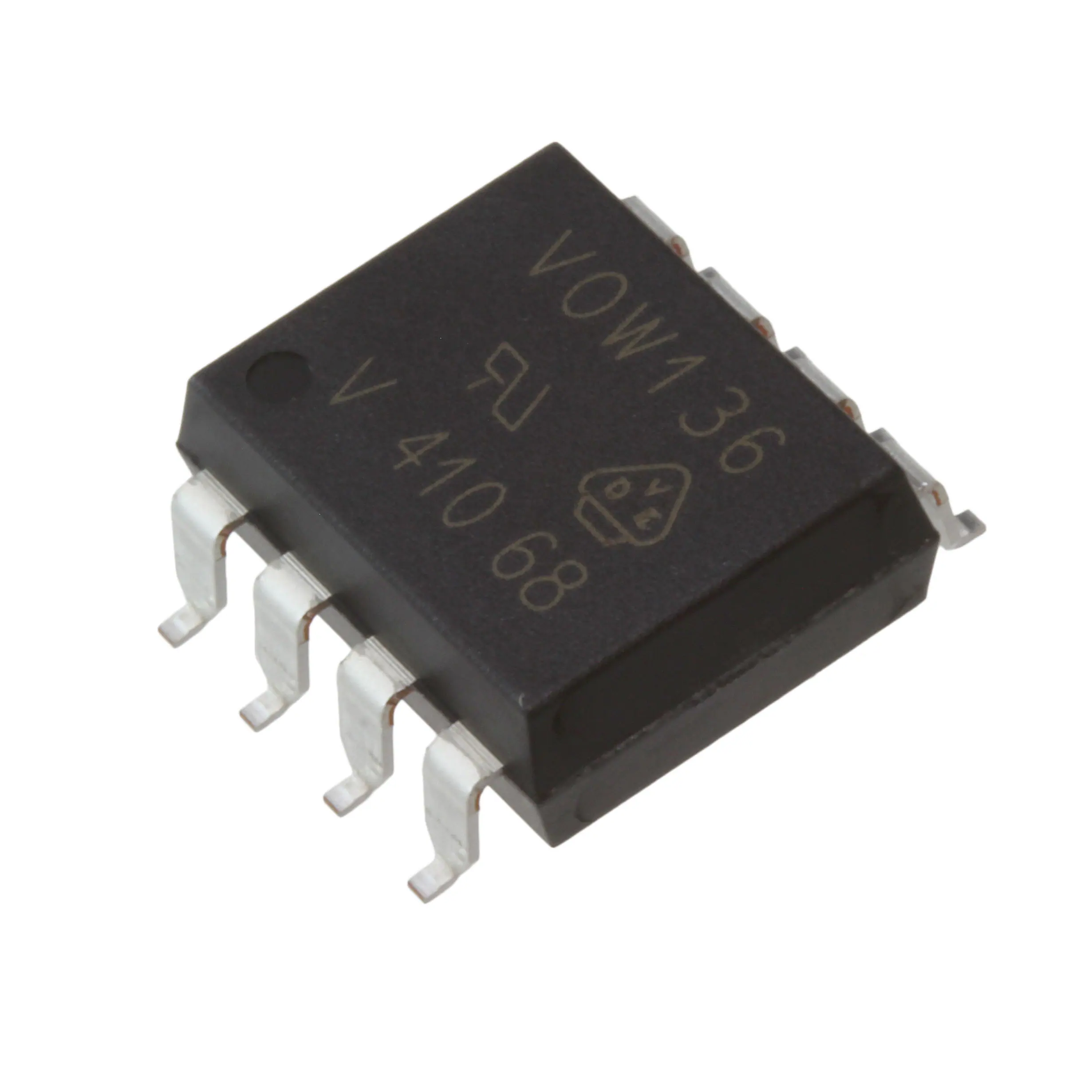

VOW136-X017TOPTOISO 5.3KV TRANS W/BASE 8SMD |
1,150 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 600ns | - | DC | Transistor with Base | 25V | 8mA | 1.38V | 25 mA | - | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
PS8502L1-V-AXOPTOISOLATOR 5KV TRANS 8DIP |
48 |
|
Datasheet |
NEPOC | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
CNY65ABSTOPTOISOLATOR 8200V TRANS 4SMD |
668 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 8200Vrms | 80% @ 5mA | 240% @ 5mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.32V | 75 mA | 300mV | - | - | -55°C ~ 85°C | Surface Mount | 4-SMD |
|
HCNW4502-500EOPTOISO 5KV TRANS 8DIP GULL WING |
3,635 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.68V | 25 mA | - | - | - | -55°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-M49T-560EOPTOISOLATOR 4KV TRANSISTOR |
4,341 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 4000Vrms | 32% @ 10mA | 80% @ 10mA | 20µs, 20µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 20 mA | - | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 5-SO |
|
ACPL-K49T-000EOPTOISOLATOR 5KV TRANSISTOR |
2,198 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 1 | 5000Vrms | 32% @ 10mA | 100% @ 10mA | 20µs, 20µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 20 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 8-SO Stretched |
|
ACPL-W454-500EOPTOISOLATOR 5KV TRANS 6SOIC |
6,114 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 5000Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 6-SO Stretched |
|
PS8502-AXOPTOISOLATOR 5KV TRANS 8DIP |
1,113 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
ACPL-K453-500EOPTOISOLATOR 5KV TRANSISTOR 8-SO |
2,470 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SO Stretched |
|
HCPL-0701OPTOISO 3.75KV DARL W/BASE 8SOIC |
2,608 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SO |
|
|
PS2915-1-V-AXPS29 |
748 |
|
Datasheet |
- | 4-SMD, Flat Leads | Strip | Active | 1 | 2500Vrms | 100% @ 1mA | 400% @ 1mA | 40µs, 120µs | 5µs, 10µs | AC, DC | Transistor | 40V | 40mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
.JPG)
|
TLX9309(TPL,FIC COUPLER; 4-PIN SO6; AECQ; ROH |
1,730 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 15% @ 7mA | 300% @ 7mA | - | - | DC | Transistor | - | 25mA | 1.6V | 15 mA | - | Automotive | AEC-Q101 | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
ACPL-K49T-560EOPTOISOLATOR 5KV TRANSISTOR |
6,000 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 1 | 5000Vrms | 32% @ 10mA | 100% @ 10mA | 20µs, 20µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 20 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 8-SO Stretched |
|
PS8502L2-AXOPTOISOLATOR 5KV TRANS 8SMD |
878 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
PS8502L2-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
736 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 15% @ 16mA | - | - | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
ILQ620-X009OPTOISO 5.3KV 4CH TRANS 16SMD |
689 |
|
Datasheet |
- | 16-SMD, Gull Wing | Tube | Last Time Buy | 4 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 20µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 16-SMD |
|
|
PS8501L1-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
50 |
|
Datasheet |
NEPOC | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 5000Vrms | 15% @ 16mA | - | - | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
