Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPI120TXVOPTOISOLATOR 15KV TRANS AXIAL |
0 |
|
Datasheet |
- | Axial - 5 Leads | Bulk | Obsolete | 1 | 15000VDC | 20% @ 10mA | - | - | 8µs, 8µs | DC | Transistor | 30V | 50mA | 1.4V | 100 mA | 300mV | - | - | -65°C ~ 125°C | Through Hole | Axial |
|
4N25A(SHORT,F)OPTOISO 2.5KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 2500Vrms | 20% @ 10mA | - | - | 2µs, 200µs | DC | Transistor with Base | 30V | 100mA | 1.15V | 80 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
TLP504A(F)OPTOISOLTR 2.5KV 2CH TRANS 8-DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2500Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
TLP632(F)OPTOISOLATR 5KV TRANSISTOR 6-DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
.JPG)
|

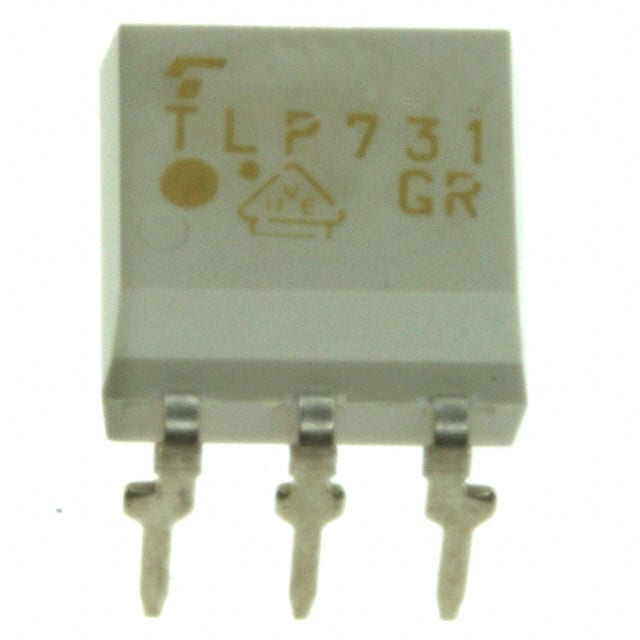

TLP731(D4-GR,F)OPTOISO 4KV TRANS W/BASE 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 4000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
4N26(SHORT,F)OPTOISO 2.5KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 2500Vrms | 20% @ 10mA | - | - | 2µs, 200µs | DC | Transistor with Base | 30V | 100mA | 1.15V | 80 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
6N138(TP1,F)OPTOISO 2.5KV DARL W/BASE 8SMD |
0 |
|
- |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 2500Vrms | 300% @ 1.6mA | - | 1µs, 4µs | - | DC | Darlington with Base | 18V | 60mA | 1.65V | 20 mA | - | - | - | 0°C ~ 70°C | Surface Mount | 8-SMD |
|
|
TLP331(BV,F)OPTOISO 5KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 200% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
TLP631(BL,F)OPTOISO 5KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
TLP631(GR,F)OPTOISO 5KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 55V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
LTV-847COPTOISOLTR 5KV 4CH TRANS 16-DIP |
0 |
|
Datasheet |
LTV-8x7 | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 110°C | Through Hole | 16-DIP |
|
6N138OPTOISO 5.3KV DARL W/BASE 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 300% @ 1.6mA | - | 2µs, 2µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
H11A2OPTOISO 5.3KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 70V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11A3OPTOISO 5.3KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 70V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
H11B1OPTOISO 5.3KV DARL W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 500% @ 1mA | - | 5µs, 30µs | - | DC | Darlington with Base | 25V | 100mA | 1.1V | 60 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
IL1OPTOISO 5.3KV TRANS W/BASE 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 20% @ 10mA | 300% @ 10mA | 700ns, 1.4µs | 1.9µs, 1.4µs | DC | Transistor with Base | 50V | 50mA | 1.25V | 60 mA | 250mV (Typ) | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
|
IL2OPTOISO 5.3KV TRANS W/BASE 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 100% @ 10mA | 500% @ 10mA | 1.2µs, 2.3µs | 2.6µs, 2.2µs | DC | Transistor with Base | 70V | 50mA | 1.25V | 60 mA | 250mV (Typ) | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
|
ILCT6OPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 20% @ 10mA | - | 3µs, 3µs | - | DC | Transistor | 30V | 30mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
ILD250OPTOISO 5.3KV 2CH TRANS 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 50% @ 10mA | - | - | - | AC, DC | Transistor | 30V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | - |
|
|
ILD252OPTOISO 5.3KV 2CH TRANS 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 5300Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor | 30V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | - |
