Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
HCNR200#050OPTOISO 5KV LINEAR PHVOLT 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Discontinued at Digi-Key | 1 | 5000Vrms | 0.25% @ 10mA | 0.75% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
HCPL-0700#060OPTOISO 3.75KV DARL W/BASE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | 1 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SO |
|
HCPL-273LOPTOISO 3.75KV 2CH DARLNG 8-DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 2 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 25µs, 50µs | - | DC | Darlington | 7V | 60mA | 1.5V | 20 mA | - | - | - | 0°C ~ 70°C | Through Hole | 8-DIP |
|
HCNR200#350OPTOISO 5KV LINEAR PHVOLT 8SMD |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 1 | 5000Vrms | 0.25% @ 10mA | 0.75% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
|
HCPL-0452-060EOPTOISOLATOR 3.75KV TRANS 8-SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 1 | 3750Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SO |
|
|
HCPL-0701#060OPTOISO 3.75KV DARL W/BASE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SO |
|
TLP131(F)OPTOISO 3.75KV TRANS 6-MFSOP |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Obsolete | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 80V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-MFSOP, 5 Lead |
|
|
TLP131(GB-TPR,F)OPTOISO 3.75KV TRANS 6-MFSOP |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Cut Tape (CT) | Obsolete | 1 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor with Base | 80V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-MFSOP, 5 Lead |
|
4N25(SHORT,F)OPTOISO 2.5KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 2500Vrms | 20% @ 10mA | - | - | 2µs, 200µs | DC | Transistor with Base | 30V | 100mA | 1.15V | 80 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
TLP124FOPTOISOLTR 3.75KV TRANS 6-MFSOP |
0 |
|
Datasheet |
- | 6-SMD (4 Leads), Gull Wing | Tube | Obsolete | 1 | 3750Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | DC | Transistor | 80V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead |
|
|
TLP126TPRFOPTOISOLTR 3.75KV TRANS 6-MFSOP |
0 |
|
- |
- | 6-SMD (4 Leads), Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | AC, DC | Transistor | 80V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead |
|
TLP626-4(F)OPTOISOLTR 5KV 4CH TRANS 16-DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5000Vrms | 100% @ 1mA | 1200% @ 1mA | 10µs, 8µs | 8µs, 8µs | AC, DC | Transistor | 55V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 16-DIP |
|
3C92CTXVOPTOISOLATOR 1KV TRANS TO72-4 |
0 |
|
Datasheet |
- | TO-206AF, TO-72-4 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 30% @ 10mA | 200% @ 10mA | 9µs, 6µs (Max) | - | DC | Transistor | 50V | 30mA | 1.2V (Max) | 50 mA | 400mV | - | - | -55°C ~ 125°C | Through Hole | TO-72-4 |
|
|
3N244TXOPTOISOLATOR 1KV TRANS TO72-4 |
0 |
|
Datasheet |
- | TO-206AF, TO-72-4 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 30% @ 10mA | - | - | 10µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.3V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-72-4 |
|
|
3N261OPTOISOLATOR 1KV TRANS TO72-4 |
0 |
|
Datasheet |
- | TO-206AF, TO-72-4 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 5% @ 1mA | - | - | 20µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-72-4 |
|
|
3N261TXOPTOISOLATOR 1KV TRANS TO72-4 |
0 |
|
Datasheet |
- | TO-206AF, TO-72-4 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 5% @ 1mA | - | - | 20µs, 10µs (Max) | DC | Transistor | 30V | 30mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-72-4 |
|
4N47OPTOISO 1KV TRANS W/BASE TO78-6 |
0 |
|
Datasheet |
- | TO-78-6 Metal Can | Bulk | Obsolete | 1 | 1000VDC | 50% @ 1mA | - | - | 20µs, 20µs | DC | Transistor with Base | 40V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Through Hole | TO-78-6 |
.jpg)
|

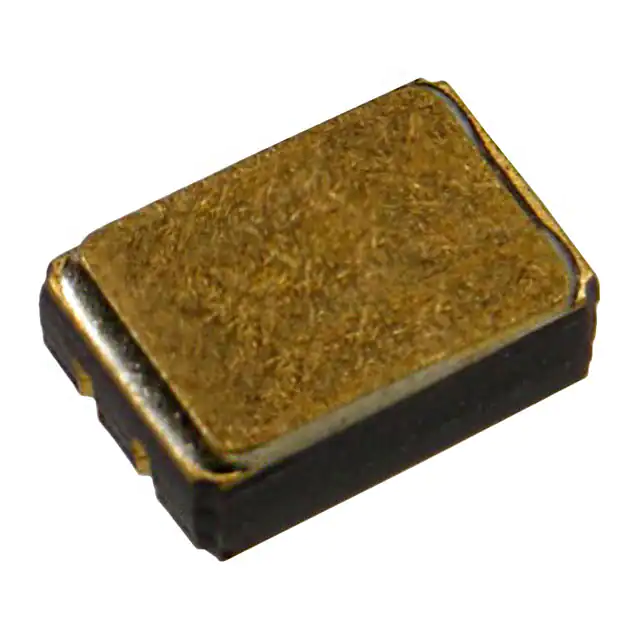

HCC240OPTOISOLATOR 1KV TRANSISTOR 4SMD |
0 |
|
Datasheet |
- | 4-SMD, No Lead | Bulk | Obsolete | 1 | 1000VDC | 25% @ 10mA | - | - | 15µs, 15µs | DC | Transistor | 30V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SMD |
|
|
HCC240TXVOPTOISOLATOR 1KV TRANSISTOR 4SMD |
0 |
|
Datasheet |
- | 4-SMD, No Lead | Bulk | Obsolete | 1 | 1000VDC | 25% @ 10mA | - | - | 15µs, 15µs | DC | Transistor | 30V | 50mA | 1.5V (Max) | 40 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 4-SMD |
|
OPI120TXOPTOISOLATOR 15KV TRANS AXIAL |
0 |
|
Datasheet |
- | Axial - 5 Leads | Bulk | Obsolete | 1 | 15000VDC | 20% @ 10mA | - | - | 8µs, 8µs | DC | Transistor | 30V | 50mA | 1.4V | 100 mA | 300mV | - | - | -65°C ~ 125°C | Through Hole | Axial |
