Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ILQ621-X007TOPTOISO 5.3KV 4CH TRANS 16SMD |
0 |
|
Datasheet |
- | 16-SMD, Gull Wing | Tape & Reel (TR) | Last Time Buy | 4 | 5300Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 16-SMD |
|
|
ILQ615-3X007TOPTOISO 5.3KV 4CH TRANS 16SMD |
0 |
|
Datasheet |
- | 16-SMD, Gull Wing | Tape & Reel (TR) | Last Time Buy | 4 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 16-SMD |
|
PS2815-4-F3OPTOISO 2.5KV 4CH TRANS 16SOIC |
0 |
|
Datasheet |
NEPOC | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | 4 | 2500Vrms | 100% @ 1mA | 400% @ 1mA | - | 4µs, 5µs | AC, DC | Transistor | 40V | 40mA | 1.15V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 16-SSOP |
|
PS8501-AXOPTOISO 5KV TRANS W/BASE 8DIP |
0 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | - |
|
PS8501L1-AXOPTOISO 5KV TRANS W/BASE 8DIP |
0 |
|
Datasheet |
NEPOC | 8-DIP (0.400", 10.16mm) | Bulk | Discontinued at Digi-Key | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor with Base | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
ILQ615-4X001OPTOISO 5.3KV 4CH TRANS 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Last Time Buy | 4 | 5300Vrms | 160% @ 320mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | - | - | -55°C ~ 100°C | Through Hole | 16-DIP |
|
|
PS2815-1-L-AOPTOISOLATOR 2.5KV TRANS 4SOIC |
18 |
|
Datasheet |
NEPOC | 4-SOIC (0.173", 4.40mm Width) | Tube | Active | 1 | 2500Vrms | 100% @ 1mA | 400% @ 1mA | - | 4µs, 5µs | AC, DC | Transistor | 40V | 40mA | 1.15V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SSOP |
|

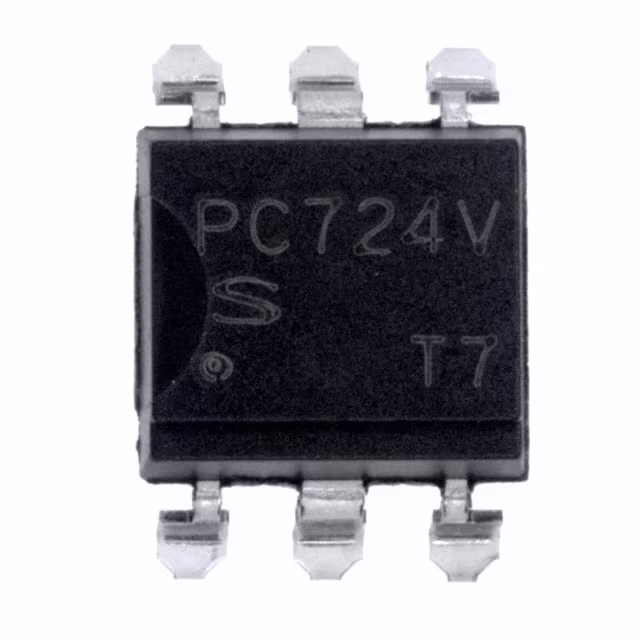

PC724V0NIPXFOPTOISOLATR 5KV TRANSISTOR 6-SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 5000Vrms | 20% @ 100mA | 80% @ 100mA | - | 4µs, 3µs | DC | Transistor | 35V | 80mA | 1.4V | 150 mA | 200mV | - | - | -25°C ~ 100°C | Surface Mount | 6-SMD |
|
|
LOC117PTROPTOISOLATOR 3.75KV PHVOLT 8SMD |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | - | - | DC | Photovoltaic, Linearized | - | - | 1.2V | - | - | - | - | -40°C ~ 85°C | Surface Mount | 8-Flatpack |
|
|
LOC117STROPTOISOLATOR 3.75KV PHVOLT 8SMD |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | - | - | DC | Photovoltaic, Linearized | - | - | 1.2V | - | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
ELM453L(TA)-VOPTOISO 3.75KV TRANS 6-SOIC |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 20% @ 16mA | 50% @ 16mA | - | - | DC | Transistor | 20V | - | - | - | - | - | - | - | Surface Mount | 5-SOP |
|
|
ELM453L(TB)-VOPTOISO 3.75KV TRANS 6-SOIC |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 20% @ 16mA | 50% @ 16mA | - | - | DC | Transistor | 20V | - | - | - | - | - | - | - | Surface Mount | 5-SOP |
|
|
PC3Q67OPTOISO 2.5KV 4CH TRANS 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | 4 | 2500Vrms | - | - | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 16-Mini-Flat |
|
ACPL-K453-560EOPTOISOLATOR 5KV TRANSISTOR 8-SO |
0 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SO Stretched |
|
H11AA4SDMOPTOISO 4.17KV TRANS W/BASE 6SMD |
0 |
|
- |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | 50mA | 1.17V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
SFH6943A-3OPTOISO 1.768KV 4CH TRANS 10SOT |
0 |
|
Datasheet |
- | SOT-223-10 | Tube | Obsolete | 4 | 1768Vrms | 100% @ 1mA | 320% @ 1mA | 2.6µs, 2.8µs | 3µs, 3.1µs | DC | Transistor | 70V | 10mA | 1.25V | 3 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 10-SMD |
|
|
PC3Q65OPTOISOLTR 2.5KV 4CH DARL 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | 4 | 2500Vrms | 600% @ 1mA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | - | - | -30°C ~ 100°C | Surface Mount | 16-Mini-Flat |
|
HCPL-0701#500OPTOISO 3.75KV DARL W/BASE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SO |
|
|
SFH608-4OPTOISO 5.3KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 160% @ 1mA | 320% @ 1mA | 8µs, 7.5µs | 5µs, 7µs | DC | Transistor with Base | 55V | 50mA | 1.1V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
PS8502-AXOPTOISOLATOR 5KV TRANS 8DIP |
0 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Bulk | Discontinued at Digi-Key | 1 | 5000Vrms | 15% @ 16mA | - | 220ns, 350ns | - | DC | Transistor | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
Transistor, Photovoltaic Output Optoisolators Electronic Components
Explore Transistor, Photovoltaic Output Optoisolators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
