Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH6943A-3TOPTOISO 1.768KV 4CH TRANS 10SOT |
0 |
|
Datasheet |
- | SOT-223-10 | Tape & Reel (TR) | Obsolete | 4 | 1768Vrms | 100% @ 1mA | 320% @ 1mA | 2.6µs, 2.8µs | 3µs, 3.1µs | DC | Transistor | 70V | 10mA | 1.25V | 3 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 10-SMD |
|
PS2801-4-F4-AOPTOISO 2.5KV 4CH TRANS 16-SSOP |
0 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | 4 | 2500Vrms | 80% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 16-SSOP |
|
PS2805-1-F3-AOPTOISOLATOR 2.5KV TRANS 4SOIC |
0 |
|
Datasheet |
NEPOC | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Not For New Designs | 1 | 2500Vrms | 80% @ 5mA | 600% @ 5mA | - | 3µs, 5µs | AC, DC | Transistor | 80V | 50mA | 1.1V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SSOP |
|
|
CNY64S(A)(TA)-VOPTOISOLTR 8.2KV TRANSISTOR SMD |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 8200Vrms | 63% @ 5mA | 125% @ 5mA | 6µs, 7µs | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.6V | 75 mA | 300mV | - | - | -55°C ~ 85°C | Surface Mount | 4-SMD |
|
HCPL-M701-500EOPTOISO 3.75KV DARLINGTON 6SOIC |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 500ns, 1µs | - | DC | Darlington | 18V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
HCPL-2531-520EOPTOISO 5KV 2CH TRANSISTOR 8SMD |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
|
HCPL-2531-560EOPTOISO 3.75KV 2CH TRANS 8SMD |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
ACPL-P454-020EOPTOISOLATOR 3.75KV TRANS 6SOIC |
0 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 6-SO Stretched |
|
|
ACPL-P454-060EOPTOISOLATOR 3.75KV TRANS 6SOIC |
0 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 6-SO Stretched |
|
|
ACPL-W454-060EOPTOISOLATOR 5KV TRANS 6SOIC |
0 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 5000Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 6-SO Stretched |
|
ILQ615-3X016OPTOISO 5.3KV 4CH TRANS 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Last Time Buy | 4 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | - | - | -55°C ~ 100°C | Through Hole | 16-DIP |
|
|
HCPL-2531-320EOPTOISO 5KV 2CH TRANSISTOR 8SMD |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
|
HCPL-2531-360EOPTOISO 3.75KV 2CH TRANS 8SMD |
0 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | - |
|
|
ILQ1615-4OPTOISO 5.3KV 4CH TRANS 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | - | - | -55°C ~ 110°C | Through Hole | 16-DIP |
|
|
ORPC-847SBC-C-G-(GK)OPTOISOLATOR TRANSISTOR OUTPUT 5 |
0 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PC3Q710NIPOPTOISO 2.5KV 4CH TRANS 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | 4 | 2500Vrms | 100% @ 500µA | 600% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 16-Mini-Flat |
|
|
ACPL-P454-560EOPTOISOLATOR 3.75KV TRANS 6SOIC |
0 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 6-SO Stretched |
|
|
ACPL-P454-520EOPTOISOLATOR 3.75KV TRANS 6SOIC |
0 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 6-SO Stretched |
|
PC353TJ0000FOPTOISO 3.75KV TRANS W/BASE 5SMD |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | - | - | - | 4µs, 3µs | DC | Transistor with Base | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 5-SMD |
|

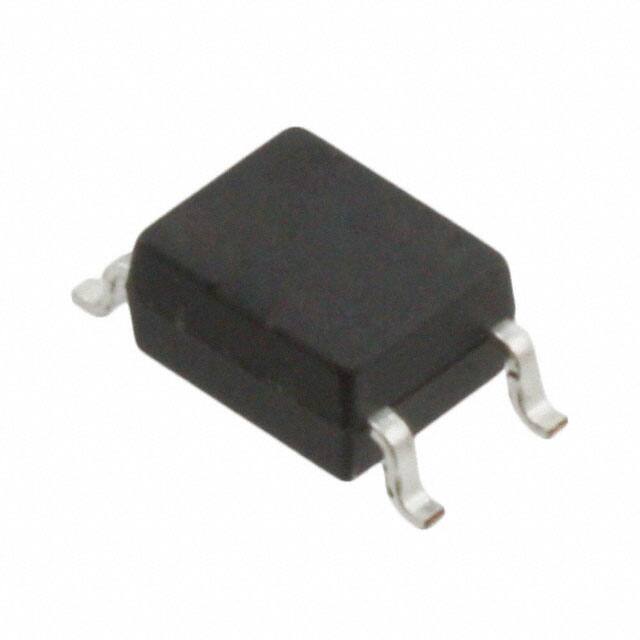

OPIA401BTROPTOISO 3.75KV DARLINGTON 4SOP |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 300V | 150mA | 1.2V | 50 mA | 1.5V | - | - | -30°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) |
