Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

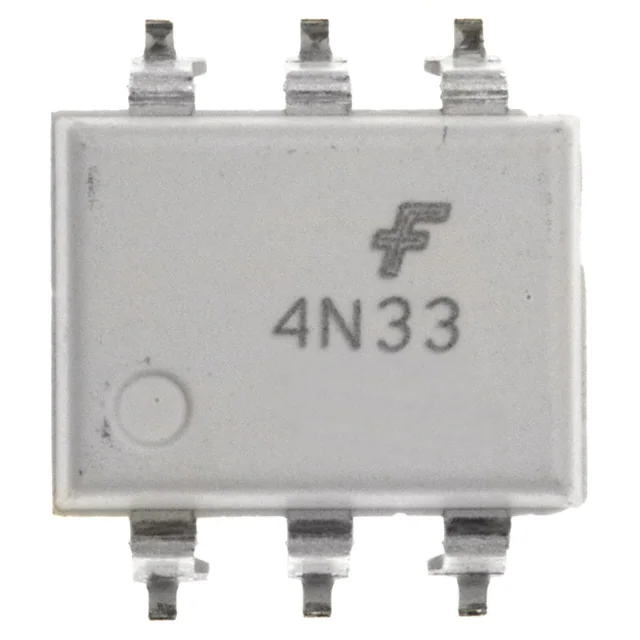

4N33SR2MOPTOISO 4.17KV DARL W/BASE 6SMD |
3,716 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 500% @ 10mA | - | 5µs, 100µs (Max) | - | DC | Darlington with Base | 30V | 150mA | 1.2V | 80 mA | 1V | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
H11D1OPTOISO 5KV TRANS W/BASE 6DIP |
3,559 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 20% @ 10mA | - | 5µs, 5µs | - | DC | Transistor with Base | 300V | 100mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
MOC207MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
11,602 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Box | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
TIL111MOPTOISO 7.5KV TRANS W/BASE 6DIP |
345 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 7500Vpk | - | - | - | 10µs, 10µs (Max) | DC | Transistor with Base | 30V | 2mA | 1.2V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
CNY17-3X017TOPTOISO 5KV TRANS W/BASE 6SMD |
7,474 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
SFH6106-2OPTOISOLATOR 5.3KV TRANS 4SMD |
2,951 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH6106-3OPTOISOLATOR 5.3KV TRANS 4SMD |
2,651 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH1690BTOPTOISOLATOR 3.75KV TRANS 4SOP |
2,000 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
PS2561D-1Y-W-AOPTOISOLATOR 5KV TRANS 4DIP |
9,302 |
|
Datasheet |
NEPOC | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | - | - | -55°C ~ 110°C | Through Hole | 4-DIP |
|
PS2801C-1-V-F3-AOPTOISOLATOR 2.5KV TRANS 4SOIC |
8,388 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 10µs, 7µs | 5µs, 7µs | DC | Transistor | 80V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SSOP |
|
|
PS2561D-1Y-V-AOPTOCOUPLER 4-PIN DIP |
4,741 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
|
SFH6186-5TOPTOISOLATOR 5.3KV TRANS 4-SMD |
5,440 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 250% @ 1mA | 500% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH6186-3OPTOISOLATOR 5.3KV TRANS 4SMD |
3,705 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
MCT62OPTOISO 5KV 2CH TRANSISTOR 8DIP |
1,320 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 5000Vrms | 100% @ 5mA | - | 3µs, 3µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
TLP627M(D4-TP5,EDC INPUT PHOTOCOUPLER; DIP4; ; V |
1,184 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 1000% @ 1mA | - | 110µs, 30µs | 60µs, 30µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1.2V | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
|
SFH6186-4OPTOISOLATOR 5.3KV TRANS 4SMD |
1,091 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 160% @ 1mA | 320% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
TLP627M(D4,EOPTOIOSOLATOR DARLINGTON 4DIP |
144 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 1000% @ 1mA | - | 110µs, 30µs | 60µs, 30µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1.2V | - | - | -55°C ~ 110°C | Through Hole | 4-DIP |
|
|
TLP627M(TP1,EOPTOIOSOLATOR DARLINGTON |
114 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 1000% @ 1mA | - | 110µs, 30µs | 60µs, 30µs | DC | Darlington | 300V | 150mA | 1.25V | 50 mA | 1.2V | - | - | -55°C ~ 110°C | Surface Mount | 4-SMD |
|
PC354NJ0000FOPTOISOLATOR 3.75KV TRANS 4-SMD |
14,562 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
SFH6206-3OPTOISOLATOR 5.3KV TRANS 4SMD |
5,913 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Active | 1 | 5300Vrms | 100% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
