Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4N25SMOPTOISO 4.17KV TRANS W/BASE 6SMD |
6,792 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 4170Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 500mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
|
4N25SR2MOPTOISO 4.17KV TRANS W/BASE 6SMD |
6,480 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 500mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
4N35SMOPTOISO 4.17KV TRANS W/BASE 6SMD |
5,327 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 4170Vrms | 100% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 300mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
RV1S2211ACCSP-10YC#KC0OPTOCOUPLER 4PIN SSOP OTHER NIPD |
5,190 |
|
Datasheet |
- | 4-SOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 1mA | 400% @ 1mA | - | 4µs, 5µs | DC | Transistor | 40V | 40mA | 1.15V | 30 mA | 300mV | - | - | -40°C ~ 115°C | Surface Mount | 4-LSSOP |
|
VO207ATOPTOISO 4KV TRANS W/BASE 8SOIC |
5,744 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 4000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 3µs | 3µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.3V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
PS2561-1-AOPTOISOLATOR 5KV TRANS 4DIP |
4,787 |
|
Datasheet |
NEPOC | 4-DIP (0.300", 7.62mm) | Tube | Not For New Designs | 1 | 5000Vrms | 80% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
FODM1007R2OPTOISO 5KV 1CH TRANS LSOP4 |
3,463 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 5.7µs, 8.5µs | DC | Transistor | 70V | 50mA | 1.4V | 50 mA | 300mV | - | - | -40°C ~ 110°C | Surface Mount | 4-SOP |
|
HMHA2801AOPTOISO 3.75KV TRANS 4-MINI-FLAT |
1,710 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tube | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.3V (Max) | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
4N27OPTOISO 5KV TRANS W/BASE 6DIP |
1,271 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 10% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.3V | 60 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
HCPL-181-06DEOPTOISO 3.75KV TRANS 4MINIFLAT |
52,058 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
CNY17-3-500EOPTOISO 5KV TRANS W/BASE 6SMD |
36,884 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.4V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 6-DIP Gull Wing |
|
FODM121R2OPTOISO 3.75KV TRANSISTOR 4SMD |
28,587 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 80mA | 1.3V (Max) | 50 mA | 400mV | - | - | -40°C ~ 110°C | Surface Mount | 4-SMD |
|
ACPL-217-56AEOPTOISOLATOR 3.75KV TRANS 4SOIC |
27,464 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
|
4N35-300EOPTOISO 3.55KV TRANS W/BASE 6SMD |
21,367 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 3550Vrms | 100% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
|
4N25-300EOPTOISO 2.5KV TRANS W/BASE 6SMD |
12,500 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 2500Vrms | 20% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 80 mA | 500mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
SFH690ABTOPTOISOLATOR 3.75KV TRANS 4-SOP |
16,867 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | 5µs, 3µs | 3µs, 4µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) |
|
MOC8050MOPTOISO 4.17KV DARLINGTON 6DIP |
9,745 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 4170Vrms | 500% @ 10mA | - | 8.5µs, 95µs | - | DC | Darlington | 80V | 150mA | 1.18V | 60 mA | - | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|

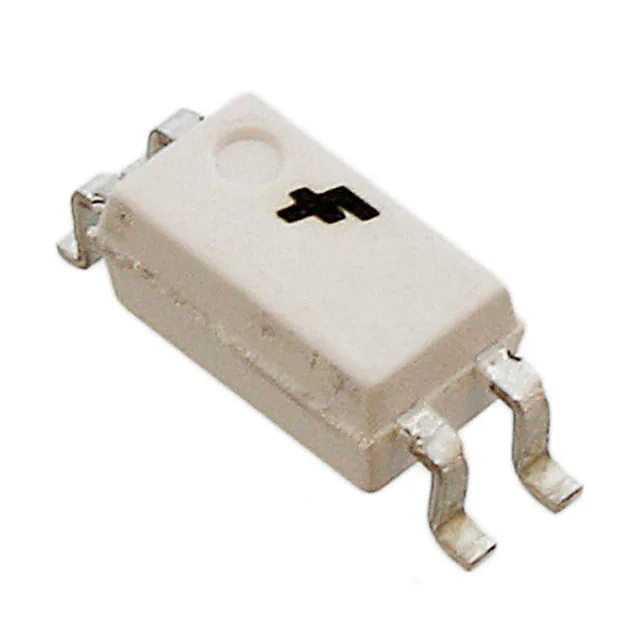

HMHAA280OPTOISO 3.75KV TRANSISTOR 4SMD |
8,985 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tube | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.4V (Max) | 50 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
TCLT1000OPTOISOLATR 5KV TRANSISTOR 4-SOP |
49,287 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SOP |
|
|
EL1018(TA)-VGOPTOISOLTR 5KV TRANSISTOR 4-SOP |
8,471 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | 4µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.45V | 60 mA | 300mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP (2.54mm) |
