Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-181-06AEOPTOISO 3.75KV TRANS 4MINIFLAT |
16,972 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|

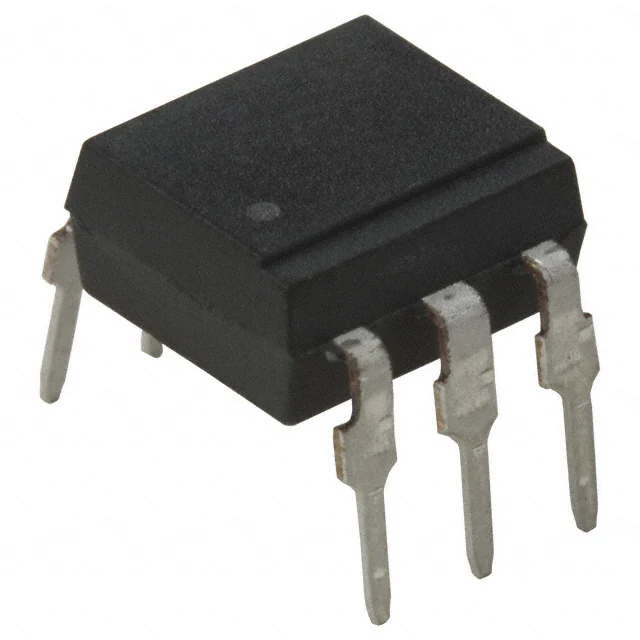

CNY17-3-000EOPTOISO 5KV TRANS W/BASE 6DIP |
16,796 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.4V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
4N35-000EOPTOISO 3.55KV TRANS W/BASE 6DIP |
16,617 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3550Vrms | 100% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
4N25-000EOPTOISO 2.5KV TRANS W/BASE 6DIP |
11,015 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 2500Vrms | 20% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 80 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
VOL617A-4X001TOPTOISOLATOR 5KV TRANS 4-LSOP |
10,062 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
VOL618A-2X001TOPTOISOLATOR 5KV TRANS 4-LSOP |
9,602 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 63% @ 1mA | 125% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
FODM217AOPTOISO 3.75KV 1CH TRANS 4SOP |
5,224 |
|
Datasheet |
FODM217 | 4-SOIC (0.173", 4.40mm Width) | Tube | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
VOL617A-8X001TOPTOISOLATOR 5KV TRANS |
3,812 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 80V | 50mA | 1.16V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-LSOP (2.54mm) |
|
ACPL-217-50CEOPTOISOLATOR 3.75KV TRANS 4SOIC |
3,533 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SO |
|
4N32OPTOCOUPLER DARLINGTON 6DIP |
3,324 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 50% @ 10mA | - | 5µs, 100µs | - | DC | Darlington | 30V | - | 1.2V | 80 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
PS2561AL-1-AOPTOISOLATOR 5KV TRANS 4SMD |
3,032 |
|
Datasheet |
NEPOC | 4-SMD, Gull Wing | Tube | Not For New Designs | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
TLP785F(D4GLT7,FX36 PB-F PHOTOCOUPLER THRU HOLE |
2,735 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.15V | 25 mA | 400mV | - | - | -25°C ~ 85°C | Surface Mount | 4-SMD |
|
|
FODM214PHOTOTRANSISTOR OPTOCOUPLER |
2,518 |
|
Datasheet |
FODM214 | 4-SOIC (0.173", 4.40mm Width) | Tube | Active | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | 3µs, 3µs | 3µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 4-SOP |
|
|
H11B1OPTOISO 5.3KV DARL W/BASE 6DIP |
2,417 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 500% @ 1mA | - | 125µs, 100µs | - | DC | Darlington with Base | 30V | - | 1.2V | 80 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
H11A1SMOPTOISO 4.17KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 50% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
CNY172MOPTOISO 4.17KV TRANS W/BASE 6DIP |
1,136 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 4170Vrms | 63% @ 10mA | 125% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
6N138SOPTOISO 5KV DARL W/BASE 8SMD |
7,261 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 50mA | 1.1V | 20 mA | - | - | - | -20°C ~ 85°C | Surface Mount | 8-SMD |
|
4N25OPTOISO 5KV TRANS W/BASE 6DIP |
2,511 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.3V | 60 mA | 500mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
HMHA2801AR2VOPTOISO 3.75KV TRANS 4-MINI-FLAT |
4,730 |
|
Datasheet |
- | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.3V (Max) | 50 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
MOC8106MOPTOISOLATOR 4.17KV TRANS 6DIP |
2,983 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 4170Vrms | 50% @ 10mA | 150% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
Transistor, Photovoltaic Output Optoisolators Electronic Components
Explore Transistor, Photovoltaic Output Optoisolators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
