Photodiodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C30723GHSENSOR PHOTODIODE 850/1300NM TO8 |
0 |
|
Datasheet |
C30723 | TO-233AA, TO-8-3 Lens Top Metal Can | Box | Active | 850nm, 1300nm, 1550nm | - | 800nm ~ 1700nm | PIN | 0.2 A/W @ 850nm, 0.9 A/W @ 1300nm, 0.95 A/W @ 1550nm | - | 50 V | 140nA | 5mm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|
PNZ323BSENSOR PHOTODIODE 970NM 2DIP |
0 |
|
Datasheet |
- | 2-SIP | Bulk | Obsolete | 970nm | - | - | PIN | - | 5µs | 30 V | 5nA | - | 140° | -30°C ~ 85°C | - | - | Through Hole |
|
PNZ334SENSOR PHOTODIODE 850NM RADIAL |
0 |
|
Datasheet |
- | Radial, 5mm Dia (T 1 3/4) | Bulk | Obsolete | 850nm | - | - | PIN | - | 2ns | 30 V | 100pA | - | 140° | -25°C ~ 85°C | - | - | Through Hole |
|
PDB-V113SENSOR PHOTODIODE 950NM RADIAL |
0 |
|
- |
- | Radial | Bulk | Obsolete | 950nm | Blue | 350nm ~ 1100nm | PIN | 0.17 A/W @ 450nm | 13ns | 75 V | 300pA | 8.24mm² | 120° | -40°C ~ 90°C | - | - | Through Hole |
|

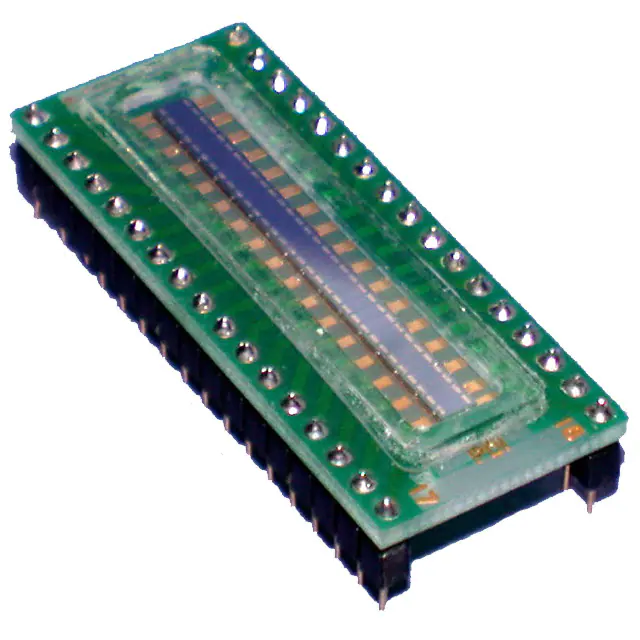

PDB-C232SENSOR PHOTODIODE 950NM ARRAY |
0 |
|
Datasheet |
- | Array - 32 Element | Bulk | Obsolete | 950nm | Blue | 350nm ~ 1100nm | - | - | 13ns | 50 V | 1nA | 1.469mm² (x32) | - | -40°C ~ 75°C | - | - | Through Hole |
|
|
PDB-715-100SENSOR PHOTODIODE 950NM TO5 |
0 |
|
Datasheet |
- | TO-5 Variant, 4 Leads, Lens Top Metal Can | Bulk | Obsolete | 950nm | Blue | 350nm ~ 1100nm | - | - | 15ns | 15 V | 1nA | 5.07mm² | 82° | 0°C ~ 70°C | - | - | Through Hole |
|
PNZ335SENSOR PHOTODIODE 850NM SIDE |
0 |
|
Datasheet |
- | Side View | Bulk | Obsolete | 850nm | - | - | PIN | - | 2ns | 30 V | 100pA | - | 140° | -25°C ~ 85°C | - | - | Through Hole |
|
PNZ330CLSENSOR PHOTODIODE 850NM TO18 |
0 |
|
Datasheet |
- | TO-18 small | Bulk | Obsolete | 850nm | - | - | PIN | - | 2ns | 30 V | 100pA | 0.740mm² | 140° | -25°C ~ 85°C | - | - | Through Hole |
|
OED-PPD11075G-BSENSOR PHOTODIODE 1310NM TO46 |
0 |
|
Datasheet |
- | - | Bulk | Obsolete | 1310nm | - | 1100nm ~ 1600nm | - | 0.9 A/W @ 1310nm | 300ps | 25 V | 300pA | 0.31mm² | - | -40°C ~ 85°C | - | - | Through Hole |
|
PNZ300SENSOR PHOTODIODE 800NM TO18-2 |
0 |
|
Datasheet |
- | TO-18-2 Metal Can | Bulk | Obsolete | 800nm | - | - | PIN | - | 1ns | 50 V | 100pA | - | 20° | -25°C ~ 85°C | - | - | Through Hole |
,TO-226_straightlead.jpg)
|
QSE973SENSOR PHOTODIODE 930NM TO226-2 |
0 |
|
- |
- | TO-226-2, TO-92-2 (TO-226AC) | Bulk | Obsolete | 930nm | - | - | PIN | - | 50ns | 32 V | 30nA | - | 90° | -40°C ~ 85°C | - | - | Through Hole |
|
PNZ300FSENSOR PHOTODIODE 800NM TO18-2 |
0 |
|
Datasheet |
- | TO-18-2 Metal Can | Bulk | Obsolete | 800nm | - | - | PIN | - | 1ns | 50 V | 100pA | - | 80° | -25°C ~ 85°C | - | - | Through Hole |
|
PNZ331CLSENSOR PHOTODIODE 900NM TO206AA |
0 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | Bulk | Obsolete | 900nm | - | - | PIN | 0.55 A/W @ 800nm | 2ns | 30 V | 100pA | 0.739mm² | 140° | -25°C ~ 85°C | - | - | Through Hole |
|
|
PNZ331FSENSOR PHOTODIODE 900NM TO206AA |
0 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | Bulk | Obsolete | 900nm | - | - | PIN | 0.55 A/W @ 800nm | - | 30 V | 100pA | 0.739mm² | 80° | -25°C ~ 100°C | - | - | Through Hole |
|
|
PDV-V400SENSOR PHOTODIODE 525NM TO5 |
0 |
|
Datasheet |
- | TO-5 Variant, 2 Leads, Lens Top Metal Can | Bulk | Obsolete | 525nm | - | - | PIN | - | 1µs | 100 V | 10pA | 17.74mm² | - | -15°C ~ 70°C | - | - | Through Hole |
|
BS120SENSOR PHOTODIODE 560NM SIDE |
0 |
|
Datasheet |
- | Side View | Bulk | Obsolete | 560nm | - | 500nm ~ 600nm | - | - | - | 10 V | 3pA | 1.55mm² | - | -20°C ~ 60°C | - | - | Through Hole |
|
BS500ASENSOR PHOTODIODE 850NM SIDE |
0 |
|
Datasheet |
- | Side View | Bulk | Obsolete | 850nm | Blue | 800nm ~ 900nm | - | - | - | 10 V | 10pA | 5.34mm² | - | -10°C ~ 60°C | - | - | Through Hole |
|
PD100MC0MPSENSOR PHOTODIODE 820NM SIDE |
0 |
|
Datasheet |
- | Side View | Tape & Reel (TR) | Obsolete | 820nm | - | 400nm ~ 1100nm | - | - | 10ns | 20 V | 10nA | - | 40° | -30°C ~ 85°C | - | - | Surface Mount |
|
PD100MF0MPSENSOR PHOTODIODE 850NM SIDE |
0 |
|
Datasheet |
- | Side View | Tape & Reel (TR) | Obsolete | 850nm | - | 680nm ~ 1100nm | - | - | 10ns | 20 V | 10nA | - | 40° | -30°C ~ 85°C | - | - | Surface Mount |
|
PD101SC0SSSENSOR PHOTODIODE 820NM SIDE |
0 |
|
Datasheet |
- | Side View | Tube | Obsolete | 820nm | - | - | - | 0.55 A/W @ 780nm | - | 5 V | 1nA | - | - | -25°C ~ 85°C | - | - | Through Hole |
