Photodiodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KPDEA005-56F-BSENSOR PHOTODIOD 900-1700NM TO56 |
0 |
|
Datasheet |
- | TO-56-3 Lens Top Metal Can | Bag | Active | - | - | 900nm ~ 1700nm | Avalanche | 0.95 A/W @ 1310nm, 1.05 A/W @ 1550nm | - | 55 V | 10nA | 0.06mm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
KPDEA005B-56F-BSENSOR PHOTODIOD 900-1700NM TO56 |
0 |
|
Datasheet |
- | TO-56-3 Lens Top Metal Can | Bag | Active | - | - | 900nm ~ 1700nm | Avalanche | 0.95 A/W @ 1310nm, 1.05 A/W @ 1550nm | - | 55 V | 20nA | 50µm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|
UVG12SENSOR PHOTODIODE UV 4.1MM |
0 |
|
Datasheet |
UVG | - | Tray | Active | - | - | - | - | 0.115 A/W @ 254nm | 4µs | - | - | 13.2mm² | 45° | -20°C ~ 80°C | - | - | Through Hole |
|
|
ODD-UVG-014SENSOR PHOTODIODE UV TO5 |
0 |
|
- |
- | TO-5 Variant, 2 Leads, Lens Top Metal Can | Bulk | Discontinued at Digi-Key | - | Ultraviolet (UV) | 190nm ~ 400nm | - | - | 4µs | 10 V | - | 13.2mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
444-12-12-171SENSOR PHOTODIODE 660NM |
0 |
|
Datasheet |
- | - | Bulk | Active | 660nm | Blue | 350nm ~ 1100nm | PIN | 0.28 A/W @ 450nm | 13ns | 75 V | 13nA | 99.93mm² | 95° | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
KPDEA007-56F-BSENSOR PHOTODIOD 900-1700NM TO56 |
0 |
|
Datasheet |
- | TO-56-3 Lens Top Metal Can | Bag | Active | - | - | 900nm ~ 1700nm | Avalanche | 0.9 A/W @ 1310nm, 1.05 A/W @ 1550nm | - | 55 V | 15nA | 0.08mm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|

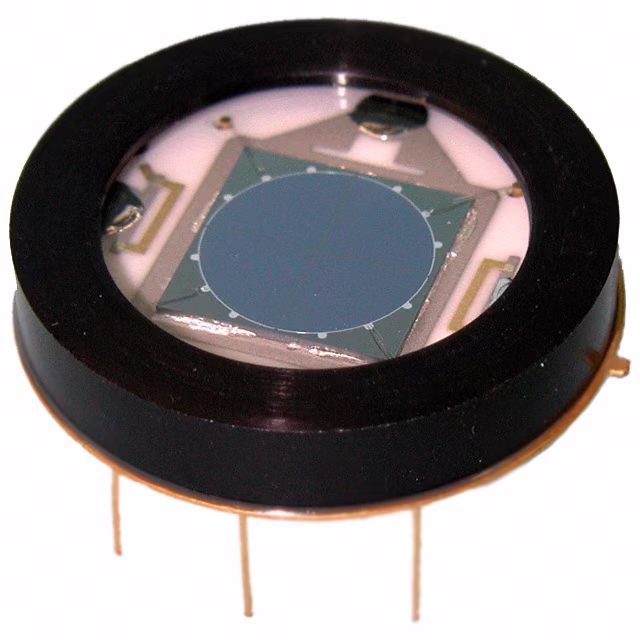

380-23-21-251SENSOR PHOTODIODE 660NM TO8 |
0 |
|
- |
- | - | Bulk | Active | 660nm | Red | 350nm ~ 1100nm | - | 0.55 A/W @ 900nm | 13ns | 50 V | 5nA | 5.338mm² (x4) | 120° | -40°C ~ 125°C | - | - | Through Hole |
|
UVG20CSENSOR PHOTODIODE 19MM2 |
0 |
|
Datasheet |
UVG | - | Bulk | Active | - | - | 250nm ~ 1100nm | - | 0.115 A/W @ 254nm | 1.7µs | 50 V | - | - | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
ODD-UVG-004SENSOR PHOTODIODE UV TO233AA |
0 |
|
- |
- | TO-233AA, TO-8-3 Lens Top Metal Can | Bulk | Active | - | Ultraviolet (UV) | 190nm ~ 400nm | - | - | 1.7µs | 20 V | 30nA | 19mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
C30950EHSENSOR PHOTODIODE 900NM TO8 |
0 |
|
Datasheet |
C30950 | TO-8 Style, 12 Leads | Box | Active | 900nm | - | 400nm ~ 1100nm | Avalanche | 560 KV/W @ 900nm | 10ns | 425 V | - | 0.5mm² | 130° | -40°C ~ 70°C | - | - | Through Hole |
|
|
ARRAYC-30020-16P-PCBSENSOR PHOTODIODE 420NM 84CLCC |
0 |
|
Datasheet |
C-SERIES SIPM | 84-CLCC Window (J-Lead) | Bulk | Active | 420nm | - | - | - | - | - | - | - | 9mm² | - | - | - | - | Surface Mount |
|
|
C30665GHSENSOR PHOTODIODE 850/1300NM TO5 |
0 |
|
Datasheet |
C30665 | TO-205AA, TO-5-3 Metal Can | Box | Active | 850nm, 1300nm, 1550nm | - | 800nm ~ 1700nm | PIN | 0.2 A/W @ 850nm, 0.9 A/W @ 1300nm, 0.95 A/W @ 1550nm | - | 50 V | 25nA | 3mm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|
UVG5SSENSOR PHOTODIODE UV 5MM2 |
0 |
|
Datasheet |
UVG | - | Tray | Active | - | - | 250nm ~ 1100nm | - | 0.115 A/W @ 254nm | 1µs | - | 1nA | 5mm² | 45° | -20°C ~ 80°C | - | - | Through Hole |
|
UVG20SSENSOR PHOTODIODE UV 24MM2 |
0 |
|
Datasheet |
UVG | - | Tray | Active | - | - | 250nm ~ 1100nm | - | 0.115 A/W @ 254nm | 4µs | 50 V | - | 24mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
ODD-UVG-013SENSOR PHOTODIODE 2DIP MOD |
0 |
|
- |
- | 2-DIP Module | Bulk | Active | - | Ultraviolet (UV) | 190nm ~ 400nm | - | - | 4µs | 50 V | - | 24mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
ODD-UVG-007SENSOR PHOTODIODE TO5 |
0 |
|
- |
- | TO-205AA, TO-5-3 Metal Can | Bulk | Active | - | Ultraviolet (UV) | 225nm ~ 400nm | - | - | 1µs | 50 V | 1nA | 5mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
PIN-10DFSENSOR PHOTODIODE 450-950NM MOD |
0 |
|
Datasheet |
Photovoltaic | Module | Canister | Active | - | - | - | Planar Diffusion | 0.15 A/W @ 550nm | - | - | - | 100mm² | - | 0°C ~ 70°C | - | - | Panel Mount |
|
|
AXUV100TF030SENSOR PHOTODIODE 3NM |
0 |
|
Datasheet |
AXUV | - | Bulk | Active | 3nm | - | 1nm ~ 12nm | - | - | - | 10 V | - | 100mm² | - | -10°C ~ 40°C | - | - | Through Hole |
|
|
ODD-UVG-002SENSOR PHOTODIODE 2DIP MOD |
0 |
|
- |
- | 2-DIP Module | Bulk | Active | - | Ultraviolet (UV) | 190nm ~ 400nm | - | - | 10µs | 10 V | - | 100mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
|
C30662ECERHSENSOR PHOTODIODE 1550NM 2SMD |
0 |
|
Datasheet |
C30662 | 2-SMD | Box | Active | 1550nm | - | 1100nm ~ 1700nm | Avalanche | 9.3 A/W @ 1550nm | - | 70 V | 150nA | 200µm | - | -20°C ~ 70°C | - | - | Surface Mount |
