Photodiodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD25sM TO-8 with UV-glass windowSENSOR PHOTODIODE 200-1100nm TO |
82 |
|
Datasheet |
- | TO-8 | Bulk | Active | - | - | 170nm ~ 1100nm | - | 0.74 A/W @ 930nm | - | - | 30pA | 25mm² | - | - | - | - | Through Hole |
|
PDB-C134SENSOR PHOTODIODE 950NM RADIAL |
65 |
|
Datasheet |
- | Radial, 3mm Dia (T-1) | Bulk | Active | 950nm | Blue | 700nm ~ 1100nm | PIN | - | 10ns | 100 V | 2nA | 1.538mm² | 30° | -40°C ~ 80°C | - | - | Through Hole |
|
|
AFBR-S4N44P014MSENSOR PHOTODIODE 420NM SGL ELEM |
75 |
|
Datasheet |
AFBR-S4N | Single Element | Bulk | Active | 420nm | - | 250nm ~ 900nm | - | - | - | 16 V | 3.3µA | 13.47mm² | - | -20°C ~ 60°C | - | - | Surface Mount |
|
|
C30617L-100SENSOR PHOTODIODE 1550NM MODULE |
80 |
|
Datasheet |
C30617L-100 | Module | Box | Active | 1550nm | - | 960nm ~ 1700nm | PIN | 0.95 A/W @ 1550nm | 70ps | 100 V | 1nA | 100µm Dia | - | -40°C ~ 125°C | - | - | Surface Mount |
|
|
C30618L-350SENSOR PHOTODIODE 1550NM MODULE |
18 |
|
Datasheet |
C30618L-350 | Module | Box | Active | 1550nm | - | 960nm ~ 1700nm | PIN | 0.95 A/W @ 1550nm | 500ps | 80 V | 1nA | 350µm Dia | - | -40°C ~ 125°C | - | - | Surface Mount |
|
|
MTSM2601SMF2-150SENSOR PHOTODIODE 800-2600NM SMD |
21 |
|
Datasheet |
2601 InGaAs | 8-SMD, No Lead | Bulk | Active | 800nm ~ 2600nm | - | 800nm ~ 2600nm | PIN | 1.24 A/W @ 2400nm | - | 1 V | 26nA | 1.5mm² | - | -40°C ~ 85°C | - | - | Surface Mount |
|
|
C30617BHSENSOR PHOTODIO 1300/1550NM TO18 |
94 |
|
Datasheet |
C30617 | TO-206AA, TO-18-3 Metal Can | Box | Active | 1300nm, 1550nm | - | 800nm ~ 1700nm | PIN | 0.9 A/W @ 1300nm, 0.95 A/W @ 1550nm | 70ps | 100 V | 1nA | 100µm Dia | - | -40°C ~ 125°C | - | - | Through Hole |
|
GUVA-T21GD-USENSOR PHOTODIODE 220-370NM TO39 |
49 |
|
- |
- | TO-39-3 Metal Can | Tray | Active | - | Ultraviolet (UV) | 220nm ~ 370nm | Schottky | 0.18 A/W @ 350nm | - | 5 V | 90nA (Max) | 6.89mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|
100-12-22-021SENSOR PHOTODIODE 660NM TO5 |
55 |
|
Datasheet |
- | - | Bulk | Active | 660nm | Blue | 350nm ~ 1100nm | PIN | 0.28 A/W @ 450nm | 13ns | 75 V | 1.6nA | 5.067mm² | 82° | -40°C ~ 125°C | - | - | Through Hole |
|
PIN-10DP/SBSENSOR PHOTODIODE 410NM MODULE |
14 |
|
Datasheet |
Photovoltaic | Module | Canister | Active | 410nm | - | - | Planar Diffusion | 0.2 A/W @ 410nm | 2µs | - | - | 100mm² | - | -10°C ~ 60°C | - | - | Panel Mount |
|
KPDA100P-H8-BSENSOR PHOTODIODE 780NM TO206AA |
25 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | Bag | Active | 780nm | - | 400nm ~ 1000nm | Avalanche | 0.45 A/W @ 850nm | - | 200 V | 30pA | 1mm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
FCI-INGAAS-Q3000SENSOR PHOTODIODE TO8 12 LEADS |
22 |
|
Datasheet |
Photoconductive | TO-8 Style, 12 Leads | Bulk | Active | - | - | 900nm ~ 1700nm | - | 0.95 A/W @ 1550nm | 24ns | 10 V | 2nA | 3mm Dia | - | -40°C ~ 75°C | - | - | Through Hole |
|

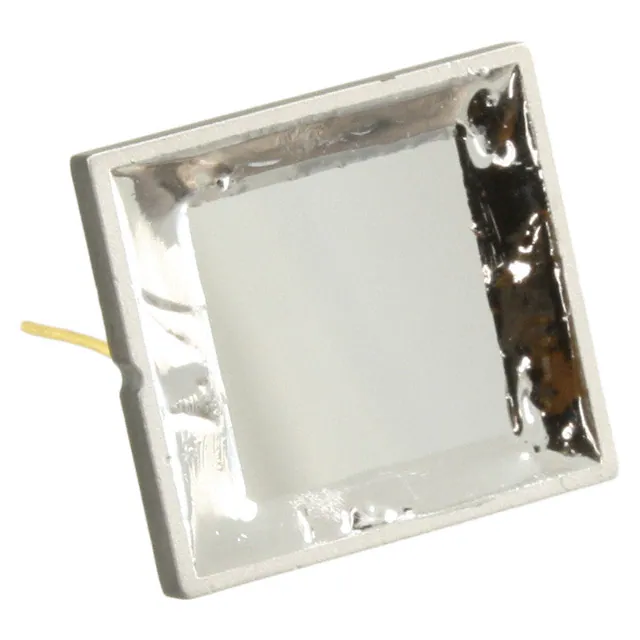

AXUV100TF400SENSOR PHOTODIODE 40NM |
8 |
|
Datasheet |
AXUV | - | Bulk | Active | 40nm | - | 18nm ~ 80nm | - | - | 250ns | 10 V | - | 100mm² | - | -10°C ~ 40°C | - | - | Through Hole |
|

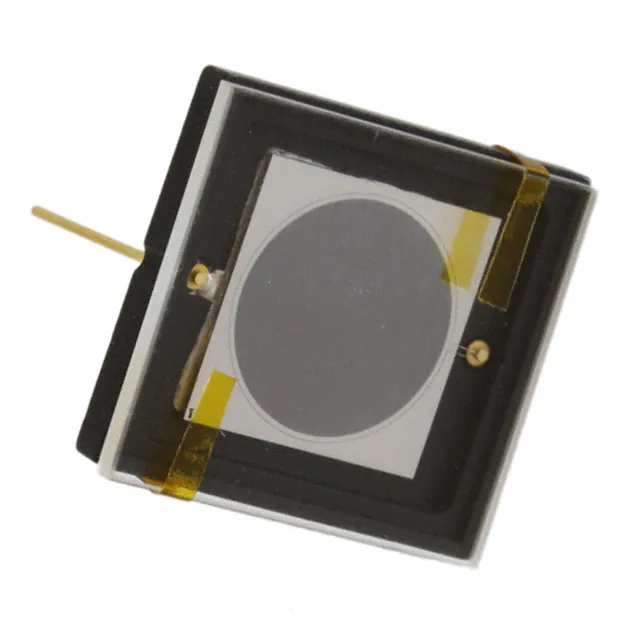

AXUV63HS1SENSOR PHOTODIODE 820NM |
22 |
|
Datasheet |
AXUV | - | Bulk | Active | 820nm | - | 250nm ~ 1100nm | - | - | 2ns | - | 100nA | 63mm² | - | -10°C ~ 40°C | - | - | Through Hole |
|
AXUV576CSENSOR PHOTODIODE 820NM |
6 |
|
Datasheet |
AXUV | - | Tray | Active | 820nm | - | 250nm ~ 1100nm | - | - | - | 10 V | - | 576.5mm² | - | -10°C ~ 40°C | - | - | Through Hole |
|
C30659-900-R8AHSENSOR PHOTODIODE 900NM TO8 |
8 |
|
Datasheet |
C30659 | TO-8 Style, 12 Leads | Bulk | Active | 900nm | - | 400nm ~ 1100nm | Avalanche | 2700 KV/W @ 830nm, 3000 KV/W @ 900nm | 7ns | - | - | 0.5mm² | - | -40°C ~ 70°C | - | - | Through Hole |
|
|
C30902SH-DTCSENSOR PHOTODIODE 830NM TO66 |
12 |
|
Datasheet |
C30902 | TO-66 | Box | Active | 830nm | - | 400nm ~ 1000nm | Avalanche | 128 A/W @ 830nm | 500ps | 225 V | 15nA | 0.2mm² | - | -40°C ~ 70°C | - | - | Through Hole |
|
|
C30659-1060E-R8BHSENSOR PHOTODIODE 1064NM TO8 |
8 |
|
Datasheet |
C30659 | TO-8 Style, 12 Leads | Bulk | Active | 1064nm | - | 400nm ~ 1100nm | Avalanche | 370 KV/W @ 900nm, 200 KV/W @ 1064nm | 2ns | - | - | 0.5mm² | - | -40°C ~ 70°C | - | - | Through Hole |
|

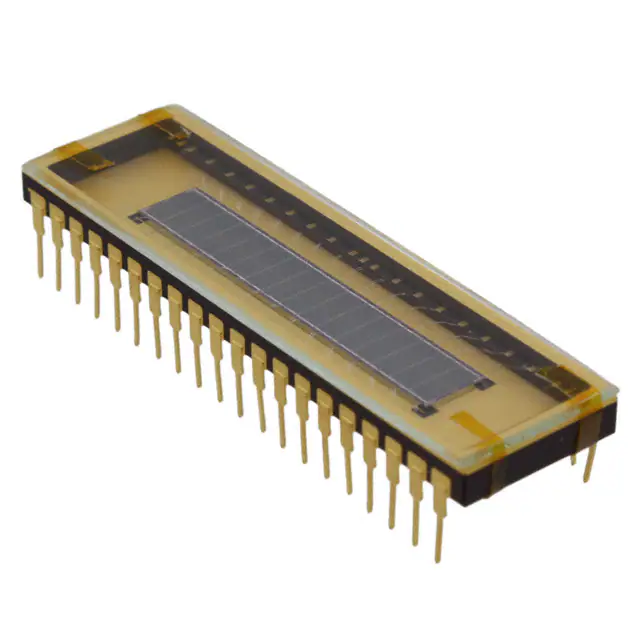

AXUV16ELGSENSOR PHOTODIODE 820NM 40DIP |
10 |
|
Datasheet |
AXUV | - | Bulk | Active | 820nm | - | 250nm ~ 1100nm | - | - | 500ns | - | - | 10mm² | - | -10°C ~ 40°C | - | - | Through Hole |
|
|
LLAM-1060-R8BHSENSOR PHOTODIODE 1064NM TO8 |
9 |
|
Datasheet |
LLAM | TO-8 Style, 12 Leads | Box | Active | 1064nm | - | 400nm ~ 1100nm | Avalanche | 370 KV/W @ 900nm, 200 KV/W @ 1064nm | 150ns | - | - | 0.5mm² | - | -40°C ~ 70°C | - | - | Through Hole |
Photodiodes Electronic Components
Explore Photodiodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
